MBD-X11SSH-F-BULK

MBD-X11SSH-F-B
https://safeconsulting.no/web/image/product.template/10013/image_1920?unique=ba3907f

kr 2 998,97 2998.9700000000003 NOK kr 2 998,97

kr 2 998,97

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

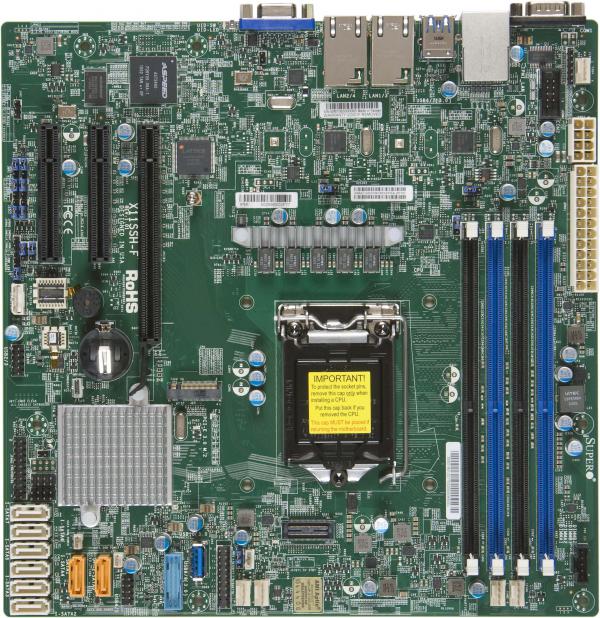

    The Supermicro X11SSH-F is a robust server motherboard designed for Intel Xeon Processor E3-1200 v6/v5 and 7th/6th Gen. Core i3 series. It supports ECC DDR4 memory and offers dual GbE LAN with extensive I/O options.

    Key Features

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Support Intel® VHD with selected CPU
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:1 PCIe 3.0 x8 (in x16),1 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8)
    • M.2 NGFF connectorM.2 Interface:PCIe 3.0 x2Form Factor: 2280Key: M-Key
    • Dual GbE LAN with Intel® i210-AT
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    • I/O: 1 VGA, 2 COM, TPM header
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

    Key Applications

    • Server environments
    • Data centers
    • Workstations
    • High-performance computing
    • Network management

    Description

    The Supermicro X11SSH-F motherboard provides incredible versatility for server needs. Featuring support for single socket H4 (LGA 1151) processors, including Intel Xeon E3-1200 v6/v5, Intel 7th/6th Gen. Core i3 series, and other processors such as Celeron and Pentium, this board ensures reliable performance. It supports up to 64GB of Unbuffered ECC UDIMM DDR4 memory across four DIMM slots, making it suitable for demanding applications. With Intel C236 chipset, extensive expansion slots, M.2 connectivity, and comprehensive I/O options, the X11SSH-F offers a tailored solution for varied server environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SSH-F
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
    Note
    • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8 (in x16 slot),
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: PCIe 3.0 x2
    • Form Factor: 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • 128MB SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • PCI 2.3
    • DMI 2.3
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • M.2 NGFF connector
    • CPU thermal trip support for processor protection
    • Control of power-on for recovery from AC power loss
    • VHD
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-F with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSH-F with EMI Gasket
    QRG
    MNL-1778-QRG1Motherboard Quick Reference Guide
