    Summary Description

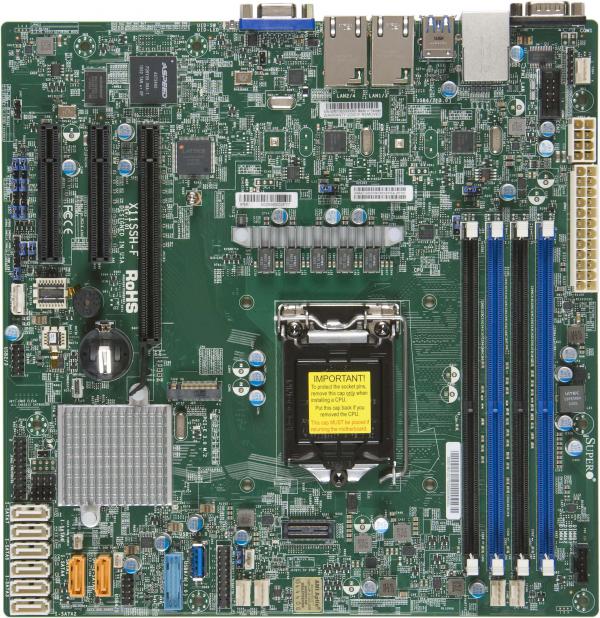

    Supermicro Motherboard MBD-X11SSH-F-B

    Product Highlights

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
      • Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Support Intel® VHD with selected CPU
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:
      • 1 PCIe 3.0 x8 (in x16),
      • 1 PCIe 3.0 x8,
      • 1 PCIe 3.0 x4 (in x8)
    • M.2 NGFF connector
      • M.2 Interface:PCIe 3.0 x2
      • Form Factor: 2280
      • Key: M-Key
    • Dual GbE LAN with Intel® i210-AT
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    • I/O: 1 VGA, 2 COM, TPM header
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

    Description

    Supermicro Motherboard MBD-X11SSH-F-B

    Product Specifications

    Product SKUs:
    MBD-X11SSH-F
    Physical Stats
    Form FactorMicro-ATX
    Dimension9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPUIntel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP
    NoteBIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MHz
    Memory Type2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes4GB, 8GB, 16GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C236
    SATAIntel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2400 BMC
    Graphics1 ASPEED AST2400 BMC port(s)
    Network ControllersDual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
    Video Output1 VGA port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x8 (in x16 slot),1 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8 slot)
    M.2M.2 Interface: PCIe 3.0 x2Form Factor: 2280Key: M-Key
    System BIOS
    BIOS Type128MB SPI Flash EEPROM with AMI BIOS
    BIOS FeaturesPlug and Play (PnP)APM 1.2PCI 2.3DMI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1
    Management
    SoftwareSuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LEDUID/Remote UIDCPU / System Overheat LED
    TemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Monitor 2 (TM2) supportPECI
    FAN5x 4-pin fan headers (up to 5 fans)Thermal control tachometer fan connectorsFan speed controlOverheat LED indication
    Other FeaturesWOLM.2 NGFF connectorCPU thermal trip support for processor protectionControl of power-on for recovery from AC power lossVHD
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
