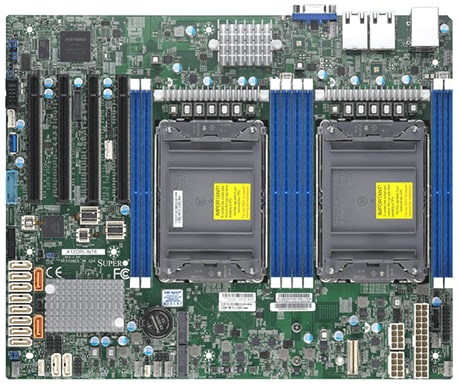

X12DPL-NT ICX mainstream DP MB with Intel X550, AST2600

MBD-X12DPL-NT6-O
https://safeconsulting.no/web/image/product.template/9765/image_1920?unique=5a19258

kr 8 475,90 8475.9 NOK kr 8 475,90

kr 8 475,90

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Designed for demanding applications, the Supermicro MBD-X12DPL-NT6-O supports dual 3rd Gen Intel® Xeon® Scalable processors, featuring Intel® C621A chipset, up to 2TB DDR4-3200MHz memory, and multiple high-speed connectivity options including PCIe 4.0 and dual 10GBase-T Ethernet ports.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
    • Intel® C621A
    • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
    • 4 PCIe 4.0 x16,1 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:2 PCIe 4.0 x4M.2 Form Factor:2280/22110, 2280M.2 Key:M-Key
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • 1 VGA port

    Key Applications

    • Enterprise Servers
    • High Performance Computing
    • Data Centers
    • Virtualization
    • Cloud Computing

    Description

    The Supermicro MBD-X12DPL-NT6-O motherboard provides robust performance and reliability for enterprise-level tasks. It supports dual 3rd Gen Intel® Xeon® Scalable processors with up to 185W TDP and offers 8 DIMM slots for up to 2TB DDR4-3200MHz memory. With 4 PCIe 4.0 x16 slots, multiple M.2 interfaces, and 12 SATA3 ports with RAID 0,1,5,10, this motherboard ensures exceptional data handling and expandability. Additionally, it features dual Intel® X550 10GBase-T Ethernet controllers, ASPEED AST2600 BMC, and comprehensive system management capabilities through Supermicro’s software suite.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12DPL-NT6
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12.23" x 10" (31.06cm x 25.4cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
    DIMM Sizes
    • 256GB
    • LRDIMM: 256GB
    • RDIMM: 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    LAN
    • 2 RJ45 10 Gigabit Ethernet LAN ports
    USB
    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 4 PCIe 4.0 x16
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4
    • Form Factor: 2280/22110, 2280
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
    Power Configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
    LED
    • UID/Remote UID
    • BMC/IPMI Heartbeat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    • Overheat LED indication
    Other Features
    • UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1205L-P4IC-FXC2CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00156-0N1I/O Shield for X12DPL-i6/NT6 with EMI Gasket
    Retail Package
    CPU carrier
    SKT-1205L-P4IC-FXC2CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00156-0N1I/O Shield for X12DPL-i6/NT6 with EMI Gasket

    Optional Part List

    Part Number Quantity Description
    I/O Shield
    MCP-260-00157-0N11U I/O Shield for X12DPL with EMI Gasket,RoHS
