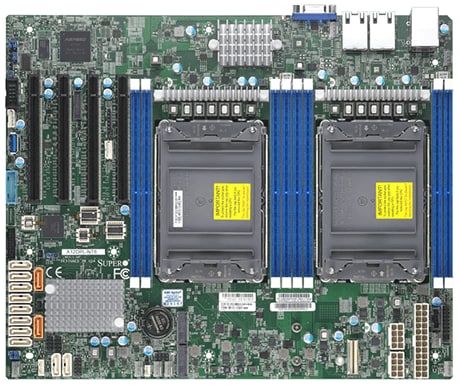

X12DPL-NT ICX mainstream DP MB with Intel X550, AST2600

MBD-X12DPL-NT6-O
https://safeconsulting.no/web/image/product.template/9765/image_1920?unique=131e0ee

kr 9,324.02 9324.02 NOK kr 9,324.02

kr 9,324.02

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X12DPL-NT6-O

    Product Highlights

    • 3rd Gen Intel® Xeon® Scalable processors
      • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
    • Intel® C621A
    • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
    • 4 PCIe 4.0 x16,
      • 1 PCIe 4.0 NVMe x8 Internal Port(s)
      • M.2 Interface:2 PCIe 4.0 x4
      • M.2 Form Factor:2280/22110, 2280
      • M.2 Key:M-Key
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • 1 VGA port

    Description

    Supermicro Motherboard MBD-X12DPL-NT6-O

    Product Specifications

    Product SKUs:
    MBD-X12DPL-NT6
    Physical Stats
    Form FactorATX
    Dimension12.23" x 10" (31.06cm x 25.4cm)
    Processor
    CPU3rd Gen Intel® Xeon® Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
    System Memory
    Memory Capacity8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
    Memory Type3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
    DIMM Sizes256GBLRDIMM: 256GBRDIMM: 256GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C621A
    SATAIntel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2600 BMC
    Graphics1 ASPEED AST2600 BMC port(s)
    Network ControllersDual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    LAN2 RJ45 10 Gigabit Ethernet LAN ports
    USB5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM2 SATA DOM (Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe4 PCIe 4.0 x16
    M.2M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4Form Factor: 2280/22110, 2280Key: M-Key, M-Key
    System BIOS
    BIOS TypeAMI UEFI
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    System Management SoftwareIPMICFG, IPMIView for Linux/Windows, SMCIPMITool
    Power ConfigurationsACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageSupports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
    LEDUID/Remote UIDBMC/IPMI Heartbeat LED
    TemperatureCPU thermal trip supportPECI
    FAN8x 4-pin fan headers (up to 8 fans)PWM fan speed controlOverheat LED indication
    Other FeaturesUID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
    Operating Environment
    Operating Temperature Range10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
