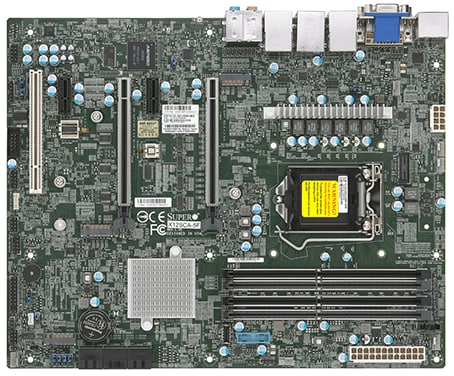

X12SAE-5, ATX, LGA1200, Intel W580 Chipset, 4x DIMM/ECC

MBD-X12SCA-5F-O
https://safeconsulting.no/web/image/product.template/9773/image_1920?unique=5a19258

kr 4 358,67 4358.67 NOK kr 4 358,67

kr 4 358,67

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12SCA-5F-O motherboard supports 10th and 11th Generation Intel CPUs, with Intel W580 chipset, single socket LGA-1200, and up to 128GB DDR4 memory.

    Key Features

    • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    • Intel® W580
    • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    • 2 PCIe 4.0 x16 (16/NA or 8/8), 2 PCIe 3.0 x11 PCI 5V 32bitM.2 Interface:1 PCIe 4.0 x4, 2 PCIe 3.0 x4 (RAID 0, 1)M.2 Form Factor:2280/22110M.2 Key:M-KeyRAID 5 only applied for INTEL Storage Device, M.2-M3 is limited with 10th Gen CPU and W-1200 CPU
    • Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Single LAN with Intel® Ethernet i225LMSingle LAN with Intel® PHY I219LM LAN controllerSingle LAN with RTL8211Dedicated LAN for IPMI
    • 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port

    Key Applications

    • Server-grade system
    • Workstation use
    • High-performance computing
    • Virtualization
    • RAID storage solutions

    Description

    Supermicro MBD-X12SCA-5F-O is designed for performance and reliability. Compatible with 10th/11th Generation Intel Core and Xeon W processors, it supports up to 128GB DDR4 memory, PCIe 4.0 and 3.0 slots, M.2 interface, Intel W580 chipset with RAID support, and multiple LAN ports. Equipped with advanced management features, it includes Superdoctor 5, KVM over IP, and ASPEED AST2500 BMC.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SCA-5F
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 Processors, 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor
    • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 10 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s
    Memory Type
    • 128GB 3200MHz
    DIMM Sizes
    • 2GB, 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® W580
    SATA
    • Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500 BMC
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® Ethernet i225LM
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Realtek RTL8211F PHY, Dedicated LAN for IPMI
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 1 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 4 USB 3.2 Gen2 port(s) (4 rear type A)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    Video Output
    • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x1,
    • 2 PCIe 4.0 x16 slots (16/NA or 8/8),
    • 1 PCI PCI 5V 32bit
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • 256MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • Riser card auto-detection support
    • SMBIOS 3.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
    LED
    • Power LED
    • BMC/IPMI Heartbeat LED
    • Catastrophic Error LED
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00151-0N1IO shield
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    I/O Shield
    MCP-260-00151-0N1IO shield
    Quick Reference Guide
    MNL-2358-QRG1Quick Reference Guide
    SATA Cables
    CBL-0044L4SATA Cables

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1TPM for Intel Xeon CPU
    AOM-TPM-9670V1TPM for Intel Core CPU
