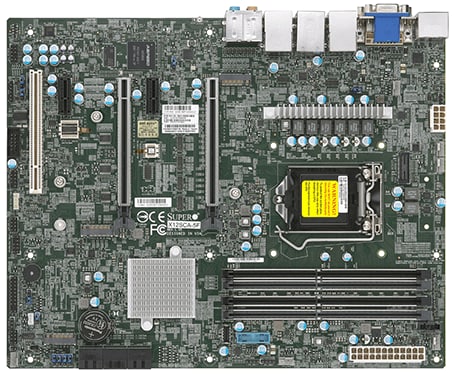

X12SAE-5, ATX, LGA1200, Intel W580 Chipset, 4x DIMM/ECC

MBD-X12SCA-5F-O
https://safeconsulting.no/web/image/product.template/9773/image_1920?unique=dec9d2d

kr 4,794.81 4794.81 NOK kr 4,794.81

kr 4,794.81

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X12SCA-5F-O

    Product Highlights

    • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, 11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 Processors
      • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    • Intel® W580
    • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
    • 2 PCIe 4.0 x16 (16/NA or 8/8), 2 PCIe 3.0 x1
      • 1 PCI 5V 32bit
      • M.2 Interface:1 PCIe 4.0 x4, 2 PCIe 3.0 x4 (RAID 0, 1)
      • M.2 Form Factor:2280/22110
      • M.2 Key:M-Key
      • RAID 5 only applied for INTEL Storage Device, M.2-M3 is limited with 10th Gen CPU and W-1200 CPU
    • Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Single LAN with Intel® Ethernet i225LM
      • Single LAN with Intel® PHY I219LM LAN controller
      • Single LAN with RTL8211
      • Dedicated LAN for IPMI
    • 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port

    Description

    Supermicro Motherboard MBD-X12SCA-5F-O

    Product Specifications

    Product SKUs:
    MBD-X12SCA-5F
    Physical Stats
    Form FactorATX
    Dimension12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU11th Generation Intel® Core™ i5/i7/i9 Processors, Intel® Xeon® W-1200 Processors, Intel® Xeon® W-1300 Processors, 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 ProcessorSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    CoreUp to 10 cores
    System Memory
    Memory Capacity4 DIMM slots128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz
    Memory Type128GB 3200MHz
    DIMM Sizes2GB, 4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® W580
    SATAIntel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500 BMC
    AudioALC 888S HD Audio
    Network ControllersSingle LAN with Intel® Ethernet i225LMSingle LAN with Intel® PHY I219LM LAN controllerSingle LAN with Realtek RTL8211F PHY, Dedicated LAN for IPMI
    Input / Output
    LAN1 RJ45 Dedicated IPMI LAN port1 RJ45 Gigabit Ethernet LAN ports1 RJ45 2.5 Gigabit Ethernet LAN port
    USB2 USB 2.0 port(s) (2 via header)4 USB 3.2 Gen2 port(s) (4 rear type A)2 USB 3.2 Gen1 port(s) (2 via header)2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    Video Output1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
    Serial Port1 COM Port(s) (1 header)
    TPM1 TPM Header
    Expansion Slots
    PCIe2 PCIe 3.0 x1, 2 PCIe 4.0 x16 slots (16/NA or 8/8), 1 PCI PCI 5V 32bit
    M.2M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
    System BIOS
    BIOS Type256MB SPI Flash with AMI BIOS
    BIOS FeaturesACPI 6.0Plug and Play (PnP)BIOS rescue hot keysRiser card auto-detection supportSMBIOS 3.0 or later
    Management
    SoftwareRedfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
    LEDPower LEDBMC/IPMI Heartbeat LEDCatastrophic Error LED
    FAN5x 4-pin fan headers (up to 5 fans)Fan speed controlOverheat LED indication
    Other FeaturesCPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-20°C - 60°C (-4°F - 140°F)
