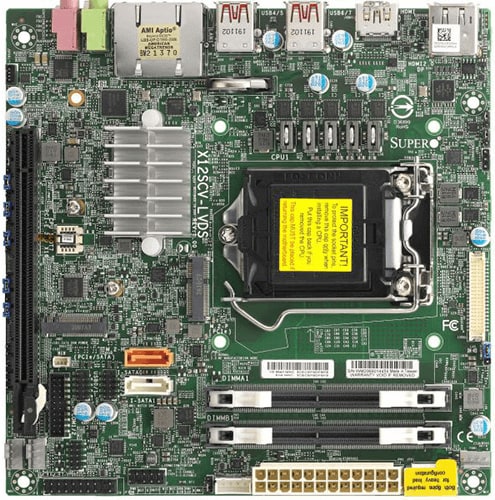

X12SCV-LVDS, Mini ITX, CometLakePCHW480,LGA1200,PCIe x16

Name: X12SCV-LVDS, Mini ITX, CometLakePCHW480,LGA1200,PCIe x16
Brand: supermicro
SKU: MBD-X12SCV-LVDS-B
Price: 3303.95 NOK
Availability: OutOfStock

SKU:

MBD-X12SCV-LVDS-B

kr 3 303,95 3303.9500000000003 NOK kr 3 303,95

kr 3 303,95

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro MBD-X12SCV-LVDS-B offers robust performance with support for Intel® Xeon® W-1200 and 11th/10th Gen Intel® Core™ processors. Its compact mini-ITX form factor maximizes space efficiency, while dual LAN controllers ensure reliable connectivity. With advanced features like ECC memory support, multiple display outputs, and comprehensive I/O options, it is ideal for demanding applications in various sectors.

Key Features

11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
Single LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210-AT
Intel® W480E
Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
1 PCIe 3.0 x16 slots (16/NA or 8/8)1 M.2 M-Key PCIe 3.0 x4, 2242/22801 M.2 E-Key CNVi/PCIe 3.0 x1/USB, 2230
Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

Key Applications

Workstations
Servers
Embedded Systems
Industrial PCs

Description

The Supermicro MBD-X12SCV-LVDS-B is a high-performance mini-ITX motherboard designed to support Intel® Xeon® W-1200 and 11th/10th Gen Intel® Core™ processors (i9/i7/i5/i3). It features up to 64GB DDR4 ECC/non-ECC memory across 2 DIMM slots, offering exceptional reliability and performance for both workstation and server applications. Equipped with dual LAN controllers, multiple video outputs, and extensive I/O ports, this motherboard ensures unparalleled connectivity and versatility. Its robust construction and advanced power management capabilities make it perfect for high-demand environments.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X12SCV-LVDS
Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	Intel® Xeon® W-1200 Processors, 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 65W TDP
Core	Up to 10 cores
Note	Motherboard supports this maximum TDP. Please verify your system can thermally support.The X12SCV-LVDS does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
System Memory
Memory Capacity	2 DIMM slots Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MT/s
Memory Type	2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® W480E
SATA	Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
Audio	ALC 888S HD Audio
Graphics	1 Intel® HD Graphics port(s) 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA	2 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (4 via header) 4 USB 3.2 Gen2 port(s) (4 rear type A)
Video Output	1 DP (DisplayPort) port(s), 2 HDMI port(s), 1 LVDS port(s)
Serial Port	2 COM ports via 1 header
DOM	1 SuperDOM(Disk on Module) ports
TPM	1 TPM Header & Chip both
Expansion Slots
PCIe	1 PCIe 3.0 x16 slots (16/NA or 8/8)
M.2	M.2 Interface: 1 CNVi/PCIe 3.0 x1; 1 SATA/PCIe 3.0 x4 Form Factor: 2230, 2242/2280 Key: E-Key, M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup
Management
System Management Software	SuperDoctor 5
Power Configurations	ATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V
LED	Power LED
Temperature	Thermal Control for 3 Fan Connectors
FAN	3x 4-pin fan headers (up to 3 fans) System level control PWM fan speed control Fan speed control 3 fans with tachometer monitoring
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00158-0N	1	X12SCV Standard I/O shield
Retail Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00158-0N	1	X12SCV Standard I/O shield
QRG
MNL-2319-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
Active heatsink
SNK-P0073A4	-	2U Active CPU Heatsink
I/O Shield
MCP-260-00158-0N	-	X12SCV Standard I/O shield
MCP-260-00160-0B	-	1U E300, 101F I/O Shield for X12SCV-LVDS with EMI Gasket
USB Cable
CBL-CUSB-0983	-	USB2.0 cable 20cm
