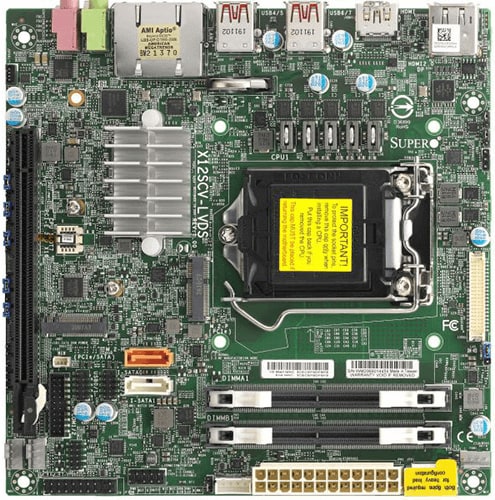

X12SCV-LVDS, Mini ITX, CometLakePCHW480,LGA1200,PCIe x16

MBD-X12SCV-LVDS-B
https://safeconsulting.no/web/image/product.template/9778/image_1920?unique=7c1c8fe

kr 3,634.55 3634.55 NOK kr 3,634.55

kr 3,634.55

Not Available For Sale

    This combination does not exist.

    Summary Description

    Supermicro Motherboard MBD-X12SCV-LVDS-B

    Product Highlights

    • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors
      • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
    • Single LAN with Intel® PHY I219LM LAN controller
      • Single LAN with Intel® Ethernet Controller I210-AT
    • Intel® W480E
    • Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
    • 1 PCIe 3.0 x16 slots (16/NA or 8/8)
      • 1 M.2 M-Key PCIe 3.0 x4, 2242/2280
      • 1 M.2 E-Key CNVi/PCIe 3.0 x1/USB, 2230
    • Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
    • 2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,
      • 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

    Description

    Supermicro Motherboard MBD-X12SCV-LVDS-B

    Product Specifications

    Product SKUs:
    MBD-X12SCV-LVDS
    Physical Stats
    Form FactorMini-ITX
    Dimension6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPUIntel® Xeon® W-1200 Processors, 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 ProcessorSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
    CoreUp to 10 cores
    Note** Motherboard supports this maximum TDP. Please verify your system can thermally support.**The X12SCV-LVDS does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
    System Memory
    Memory Capacity2 DIMM slotsUp to 64GB ECC/non-ECC SODIMM, DDR4-2933MHz
    Memory Type2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® W480E
    SATAIntel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
    AudioALC 888S HD Audio
    Graphics1 Intel® HD Graphics port(s)3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS
    Network ControllersSingle LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA2 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB4 USB 2.0 port(s) (4 via header)4 USB 3.2 Gen2 port(s) (4 rear type A)
    Video Output1 DP (DisplayPort) port(s), 2 HDMI port(s), 1 LVDS port(s)
    Serial Port2 COM ports via 1 header
    DOM1 SuperDOM (Disk on Module) ports
    TPM1 TPM Header & Chip both
    Expansion Slots
    PCIe1 PCIe 3.0 x16 slots (16/NA or 8/8)
    M.2M.2 Interface: 1 CNVi/PCIe 3.0 x1; 1 SATA/PCIe 3.0 x4Form Factor: 2230, 2242/2280Key: E-Key, M-Key
    System BIOS
    BIOS TypeAMI UEFI
    BIOS FeaturesACPI 6.1SMBIOS 3.1PCI FW 3.0UEFI 2.7RTC (Real Time Clock) Wakeup
    Management
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    VoltageVBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V
    LEDPower LED
    TemperatureThermal Control for 3 Fan Connectors
    FAN3x 4-pin fan headers (up to 3 fans)System level controlPWM fan speed controlFan speed control3 fans with tachometer monitoring
    Other FeaturesWOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
