Intel DP Workstation MB, Eagle Stream Platform, EATX, BM

• Support CXL
• 5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
• Intel® C741 Chipset
• Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
• Broadcom BCM57416 Dual ports 10G LAN
• 2 SATA DOM ports
• 2 M.2
• 4 NVMe ports PCIe 5.0 x4 via 2 MCIO connectors
• 5 PCIe 5.0 x16
• 1 PCIe 5.0 x8
• 8 SATA 3.0 ports(C741, RAID 0, 1, 5, 10)
• HD Audio 7.1 channel
• 1 USB 3.1 Gen 2, 6 USB 3.0

• Data Centers
• Enterprise Servers
• High-Performance Computing
• Virtualization
• Cloud Computing

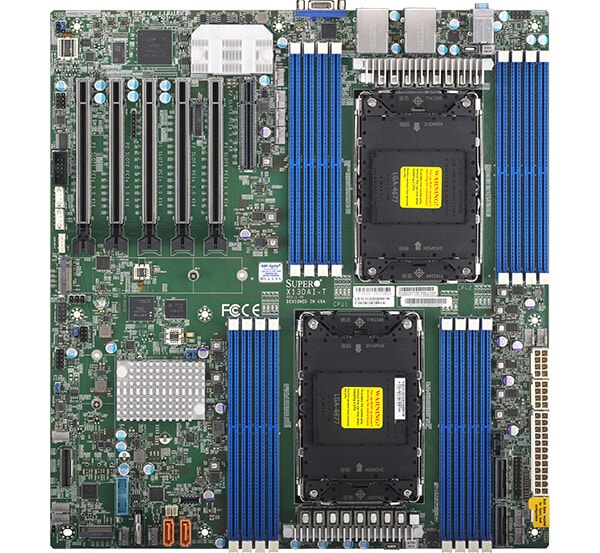

The Supermicro X13DAI-T motherboard is designed to meet the demands of high-performance computing environments. Equipped with Dual Socket E (LGA-4677) supporting 5th/4th Gen Intel® Xeon® Scalable processors, it offers exceptional processing power with support for CPU TDP up to 350W. The motherboard features the Intel® C741 chipset and supports up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots. With robust connectivity options including Broadcom BCM57416 Dual ports 10G LAN, multiple SATA, M.2, and NVMe ports, and extensive expansion slots, the X13DAI-T is ideal for a wide range of computing applications. Additional features include HD Audio 7.1 channel, various USB ports, and advanced management tools like Redfish API and Supermicro Server Manager.
