Intel DP Workstation MB, Eagle Stream Platform, EATX, BM

MBD-X13DAI-T-B
https://safeconsulting.no/web/image/product.template/9684/image_1920?unique=dec9d2d

kr 12,539.20 12539.2 NOK kr 12,539.20

kr 12,539.20

Not Available For Sale

    This combination does not exist.

    Summary Description

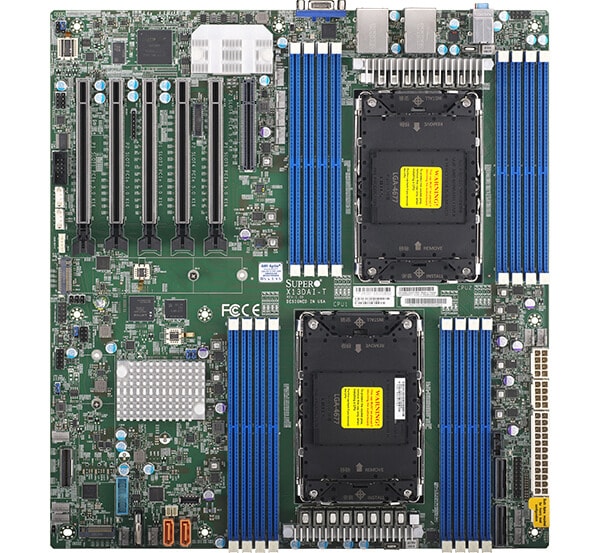

    The Supermicro X13DAI-T is a high-performance Dual Socket E ATX motherboard that supports the latest 5th/4th Gen Intel® Xeon® Scalable processors, providing superior performance and reliability for various applications.

    Key Features

    • Support CXL
    • 5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
    • Intel® C741 Chipset
    • Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
    • Broadcom BCM57416 Dual ports 10G LAN
    • 2 SATA DOM ports
    • 2 M.2
    • 4 NVMe ports PCIe 5.0 x4 via 2 MCIO connectors
    • 5 PCIe 5.0 x16
    • 1 PCIe 5.0 x8
    • 8 SATA 3.0 ports(C741, RAID 0, 1, 5, 10)
    • HD Audio 7.1 channel
    • 1 USB 3.1 Gen 2, 6 USB 3.0

    Description

    The Supermicro X13DAI-T motherboard is designed to meet the demands of high-performance computing environments. Equipped with Dual Socket E (LGA-4677) supporting 5th/4th Gen Intel® Xeon® Scalable processors, it offers exceptional processing power with support for CPU TDP up to 350W. The motherboard features the Intel® C741 chipset and supports up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s in 16 DIMM slots. With robust connectivity options including Broadcom BCM57416 Dual ports 10G LAN, multiple SATA, M.2, and NVMe ports, and extensive expansion slots, the X13DAI-T is ideal for a wide range of computing applications. Additional features include HD Audio 7.1 channel, various USB ports, and advanced management tools like Redfish API and Supermicro Server Manager.

    Product Specifications

    Product SKUs
    MBD-X13DAI-T
    Physical Stats
    Form FactorEATX
    Dimension12.1" x 13.1" (30.734cm x 33.274cm)
    Processor
    CPU5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    CoreUp to 64 cores
    System Memory
    Memory Capacity16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
    Memory Type5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s
    DIMM Sizes16GB, 32GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: Up to 256GB
    Memory Voltage1.1V
    Error DetectionDetects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C741
    SATA8 SATA3 ports; RAID 0, 1, 5, 10
    2 SATA3 ports; RAID 0,1
    Network ControllersDual LAN with Broadcom BCM57416 10GBase-T
    Input / Output
    USB6 USB 3 port(s) (2 headers; 4 rear type A)
    2 USB 2 port(s) (2 headers)
    1 USB 3.1 Gen2 port(s) (1 headers)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 5.0 x8,
    5 PCIe 5.0 x16
    M.2M.2 Interface: 2 PCIe 5.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    System BIOS
    BIOS TypeAMI 32MB AMI UEFI
    BIOS FeaturesACPI 6.4
    SMBIOS 2.8/3.5
    UEFI 2.8A
    Plug and Play (PnP)
    PCI FW 3.2
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    FAN13x 4-pin fan headers (up to 13 fans)
    Operating Environment
    Operating Temperature Range10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    CPU carrier
    Part NumberQuantityDescription
    SKT-1333L-0000-FXC2CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
    SKT-1424L-001B-LTS2CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00181-0B1-
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    Retail Package
    CPU carrier
    Part NumberQuantityDescription
    SKT-1333L-0000-FXC2CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
    SKT-1424L-001B-LTS2CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00181-0B1-
    QRG
    Part NumberQuantityDescription
    MNL-2569-QRG1Motherboard Quick Reference Guide
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L257.5 cm SATA FLAT S-S PBF

    Optional Part List

    TPM security module (optional, not included)
    Part NumberQuantityDescription
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9672V1SPI capable TPM 2.0 with Infineon 9672 controller with vertical form factor
