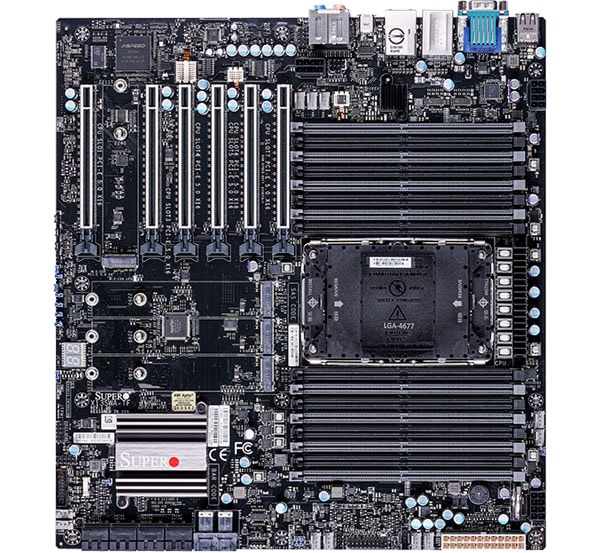

Flagship WS, EATX/Intel W790/LGA4677/6xPCIE 4.0x16 slots

• Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
• Intel® W790
• Up to 4TB(W-3400)/2TB(W-2400) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
• M.2 Interface:4 PCIe 5.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Socket (w/o heat sink)
• Xeon® W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon® W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
• 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
• 1GbE LAN port with Intel® Ethernet Controller I210-AT10GbE LAN with Marvell AQC113C
• 8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
• IPMI Supported
• Overclocking Supported (optional)

• High-performance computing
• Data-intensive tasks
• Server applications
• Workstations

The Supermicro MBD-X13SWA-TF-B motherboard is designed to meet the needs of high-performance computing applications. It supports Intel Xeon W-3400 and W-2400 series processors with up to 56 cores and a TDP of up to 350W. The board features 16 DIMM slots for up to 4TB of ECC DDR5 memory, ensuring ample capacity for memory-intensive tasks. It provides extensive expansion options with 6 PCIe 5.0 x16 slots, 4 PCIe 5.0 x4 M.2 slots, and 8 SATA 3 ports. Advanced networking is supported via 1GbE and 10GbE LAN ports. The board also includes rich I/O interfaces such as USB 3.2, SATA, and VGA, making it an ideal choice for server and high-performance workstation applications.
