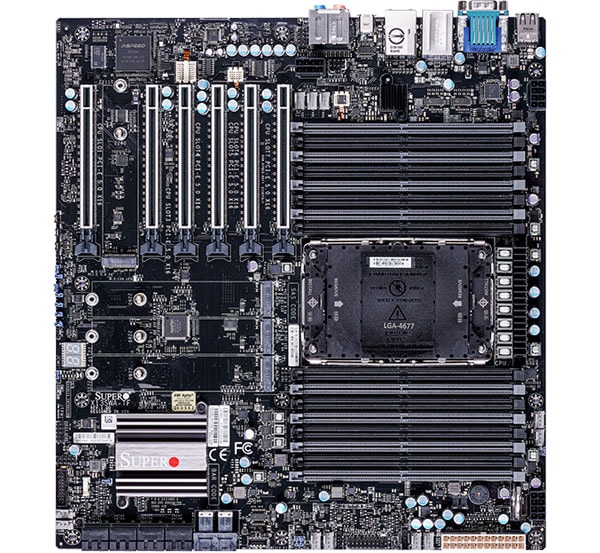

Flagship WS, EATX/Intel W790/LGA4677/6xPCIE 4.0x16 slots

MBD-X13SWA-TF-B
https://safeconsulting.no/web/image/product.template/9752/image_1920?unique=5a19258

kr 9,340.01 9340.01 NOK kr 9,340.01

kr 9,340.01

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X13SWA-TF-B motherboard offers powerful performance with support for Intel Xeon W-3400 and W-2400 series processors, up to 4TB DDR5 memory, 6 PCIe 5.0 x16 slots, advanced storage options including NVMe SSDs, comprehensive network connectivity, and extensive I/O interfaces.

    Key Features

    • Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
    • Intel® W790
    • Up to 4TB(W-3400)/2TB(W-2400) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
    • M.2 Interface:4 PCIe 5.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Socket (w/o heat sink)
    • Xeon® W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon® W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
    • 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
    • 1GbE LAN port with Intel® Ethernet Controller I210-AT10GbE LAN with Marvell AQC113C
    • 8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
    • IPMI Supported
    • Overclocking Supported (optional)

    Key Applications

    • High-performance computing
    • Data-intensive tasks
    • Server applications
    • Workstations

    Description

    The Supermicro MBD-X13SWA-TF-B motherboard is designed to meet the needs of high-performance computing applications. It supports Intel Xeon W-3400 and W-2400 series processors with up to 56 cores and a TDP of up to 350W. The board features 16 DIMM slots for up to 4TB of ECC DDR5 memory, ensuring ample capacity for memory-intensive tasks. It provides extensive expansion options with 6 PCIe 5.0 x16 slots, 4 PCIe 5.0 x4 M.2 slots, and 8 SATA 3 ports. Advanced networking is supported via 1GbE and 10GbE LAN ports. The board also includes rich I/O interfaces such as USB 3.2, SATA, and VGA, making it an ideal choice for server and high-performance workstation applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SWA-TF
    Physical Stats
    Form Factor
    • E-ATX
    Dimension
    • 13" x 12" (33.02cm x 30.48cm)
    Processor
    CPU
    • Intel® Xeon® W-3400 series and Xeon® W-2400 series processors
    • Single Socket E supported, CPU TDP supports Up to 350W TDP
    • ** Support CPU overclocking (optional, processors model name with the X suffix)
    Core
    • Up to 56 cores
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
    Memory Type
    • 4800/4400 MT/s ECC DDR5 RDIMM (3DS)1.Up to 4TB 3DS ECC RDIMM, 1TB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-3400 series processor in 16 DIMM slots.2.Up to 2TB 3DS ECC RDIMM, 512GB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-2400 series processor in 8 DIMM slots.
    DIMM Sizes
    • 16GB, 32GB, 64GB, 128GB, 256GB
    • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® W790
    SATA
    • Intel® W790 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
    Audio
    • Realtek ALC888S 7.1 HD Audio
    Network Controllers
    • Single LAN with Marvell AQC113C, 1x 10GbE RJ45 LAN port with AQC113C
    • Single LAN with Intel® Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
    Input / Output
    SATA
    • 8 SATA 3 (6Gbps) port(s)
    USB
    • 4 USB 2 port(s) (2 via header; 2 rear type A)
    • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    • 4 USB 3.2 Gen2x1 port(s) (4 rear Type A)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    Video Output
    • 1 VGA port(s) for IPMI only
    Serial Port
    • 1 COM Port(s) (1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 6 PCIe 5.0 x16
    M.2
    • M.2 Interface: 4 PCIe 5.0 x4, RAID 0, 1, 5, 10
    • Form Factor: 22110, 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • 32MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • Riser card auto-detection support
    • SMBIOS 3.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Power supply monitoring
    PC Health Monitoring
    FAN
    • 10x 4-pin fan headers (up to 10 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU-GPU power connector adapter
    CBL-PWEX-06631-
    E1A Carrier for Intel® Xeon® W-3400 series (112L) processors
    SKT-1333L-0001-LTS1E1A Carrier for Intel® Xeon® W-3400 series (112L) processors
    E1B Carrier for Intel® Xeon® W-2400 series (64L) processors
    SKT-1424L-001B-LTS1E1B Carrier for Intel® Xeon® W-2400 series (64L) processors
    I/O Shield
    MCP-260-00182-0B1Standard I/O Shield for X13SWA-TF with EMI Gasket & Black Mylar
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    CPU-GPU power connector adapter
    CBL-PWEX-06631-
    E1A Carrier for Intel® Xeon® W-3400 series (112L) processors
    SKT-1333L-0001-LTS1E1A Carrier for Intel® Xeon® W-3400 series (112L) processors
    E1B Carrier for Intel® Xeon® W-2400 series (64L) processors
    SKT-1424L-001B-LTS1E1B Carrier for Intel® Xeon® W-2400 series (64L) processors
    I/O Shield
    MCP-260-00182-0B1Standard I/O Shield for X13SWA-TF with EMI Gasket & Black Mylar
    Quick Reference Guide
    MNL-2444-QRG1X13SWA-TF Quick Reference Guide
    SATA Cables
    CBL-0044L6SATA Cables

    Optional Part List

    Part Number Quantity Description
    Passive heatsink
    SNK-C0156L1M.2 Passive Heat Sink for X13SWA-TF
    TPM security module (optional, not included)
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9672V1SPI capable TPM 2.0 with Infineon 9672 controller with vertical form factor
