Standard Storage:X12DPI-NT6,CSV-847BTS-R1K68LPBP4,S3908L
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Key Features
- Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
- 2x 10GbeServer remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

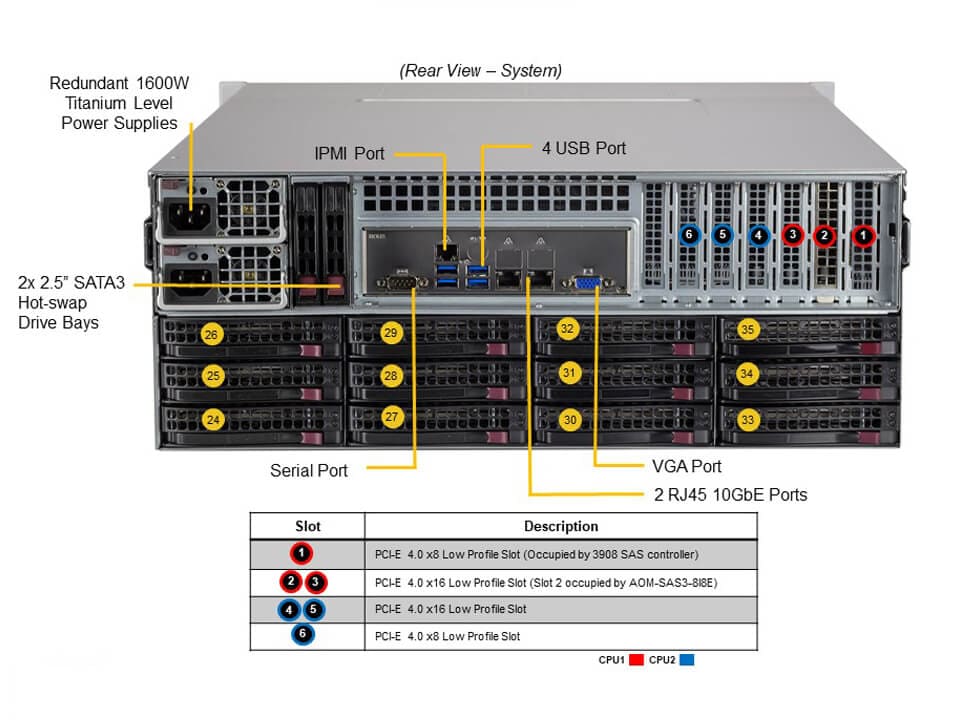

- 36 3.5"/2.5" Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom® 3908
Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
Description
The Supermicro SSG-640P-E1CR36H is engineered for enterprise environments requiring robust storage and processing capabilities. It supports dual 3rd Gen Intel® Xeon® Scalable processors, offering up to 76 cores per node. With 36 hot-swap drive bays, seven heavy-duty 8cm fans, and 1600W redundant power supplies, it's built for reliability and performance. Excellent for HPC, iSCSI SAN, and corporate databases, it features 16 DIMM slots, enhancing memory capacity to 4TB with DDR4-3200 ECC.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Motherboard | |
Installed Motherboard |
|
Processor | |
CPU |
|
Core Count |
|
Note |
|
System Memory | |
Memory |
|
Memory Voltage |
|
On-Board Devices | |
Chipset |
|
Network Connectivity |
|
Input / Output | |
LAN |
|
USB |
|
Video |
|
DOM |
|
System BIOS | |
BIOS Type |
|
Management | |
Software |
|
Power configurations |
|
Security | |
Hardware |
|
Features |
|
PC Health Monitoring | |
CPU |
|
FAN |
|
Temperature |
|
Chassis | |
Form Factor |
|
Model |
|
Dimensions and Weight | |
Height |
|
Width |
|
Depth |
|
Package |
|
Weight |
|
Available Color |
|
Front Panel | |
LED |
|
Buttons |
|
Expansion Slots | |
PCI-Express (PCIe) Configuration | Default:
|
Drive Bays / Storage | |
Drive Bays Configuration | Default: Total 38 bays:
|
M.2 |
|
System Cooling | |
Fans |
|
Power Supply | |
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
Certification:
|
Operating Environment | |
ROHS |
|
Environmental Spec. |
|
General | |
Standard Parts (Parts Included) |
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Motherboard / Chassis | ||
MBD-X12DPi-NT6 | 1 | Super X12DPi-NT6 Motherboard |
CSE-847BTS-R1K68LPBP4 | 1 | 4U Chassis |
Add-on Card / Module | ||
AOC-S3908L-H8IR-P | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS |
AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket |
Backplane | ||
BPN-SAS3-826EL1-N4 | 1 | 12-Port 2U BPN with EXP up to 8x3.5" SAS3 HDD& 4xNVMe |
BPN-SAS3-846EL1-N8 | 1 | 24-Port 4U Exp. BPN Support up-to 16x3.5"HDD and 8XNVMe |
Cable | ||
CBL-0296L | 1 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF |
CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 |
CBL-SAST-0531 | 4 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s |
CBL-SAST-1264-100 | 1 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS |
CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
CBL-PWEX-1079 | 7 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS |
Parts | ||
MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
Software | ||
SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
Heatsink / Retention | ||
SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
SNK-P0078PC | 1 | 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms |
*Power Supply | ||
PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
*Power Distributor | ||
PDB-PT847-8824 | 1 | 24pin standard output with 5V high current 100Amp power distributor board for SC847 |
*Fan | ||
FAN-0166L4 | 7 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) |
*Front Panel | ||
FPB-TB826-T | 1 | Chassis transfer board for SC826 |
*Drive Tray(s) | ||
MCP-220-00075-0B | 36 | Black gen 5.5 hot-swap 3.5" HDD tray |
MCP-220-84708-ASM | 1 | SC847B LP MB Tray assembly,HF,RoHS/REACH |
*Rail Set | ||
MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W |
MCP-410-00007-0N | 1 | Rail screw bag |
*Air Shroud | ||
MCP-310-49004-0N | 1 | SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
3916 Cache Protection | ||
BKT-BBU-BRACKET-05 or MCP-240-00203-0N | 1 | Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05 |
BTR-CVPM05 | 1 or 2 | Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender |
Bezel | ||
MCP-210-84601-0B | - | Black Front Bezel For SC846 Chassis |
Converter Tray | ||
MCP-220-00043-0N | - | Black hot-swap gen 4 3.5 to 2.5 HDD tray |
External SAS Cable (FOR JBOD) | ||
CBL-SAST-0573 | - | 1m External Mini SAS HD to External Mini SAS HD.28AWG |
IPASS Cable | ||
CBL-SAST-0388L-02 | - | 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB |
Network Cards | ||
AOC-S25G-M2S | - | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN |
AOC-S40G-I2Q | - | Standard LP 2-port 40GbE controller, Intel Fortville XL710 |
AOC-SGP-I2 | - | Standard LP 2-port GbE, Intel 82575 |
More | - | AOC Compatibility Matrix (Select Storage & Generation) |
Power Cord | ||
CBL-PWCD-0579 | - | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
CBL-PWCD-0300-IS | - | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH |
CBL-PWCD-0579-1 | - | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
Rear 3808 SAS Support | ||
AOC-S3808L-L8IT-O | 1 | 3808 SAS Controller |
CBL-SAST-1270-100 | 1 | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS |
Rear 3908 SAS Support | ||
AOC-S3908L-H8IR-16DD-O | 1 | 3908 SAS Controller |
CBL-SAST-1270-100 | 1 | SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS |
Toolless Converter Tray | ||
MCP-220-00118-0B | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
TPM | ||
AOM-TPM-9670V-O | 1 | TPM 2.0, vertical form factor, provisioned for server |
AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
