SSG-640P-E1CR36H

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10548/image_1920?unique=f7d9088

kr 51,592.45 51592.450000000004 NOK kr 51,592.45

kr 51,592.45

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SSG-640P-E1CR36H is a top-tier 4U storage server designed for enterprise needs, featuring dual 3rd Gen Intel® Xeon® Scalable processors and support for up to 4TB of DDR4 memory, making it ideal for data-intensive applications.

    Key Features

    • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
    • 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
    • 2x 10GbeServer remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
    • 36 3.5"/2.5" Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
    • 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 1600W Redundant Power Supplies Titanium Level (96%)
    • HW RAID support via Broadcom® 3908

    Key Applications

    • Enterprise Server
    • iSCSI SAN
    • HPC, Data Center
    • Database Processing & Storage
    • Corporate Database

    Description

    The Supermicro SSG-640P-E1CR36H is engineered for enterprise environments requiring robust storage and processing capabilities. It supports dual 3rd Gen Intel® Xeon® Scalable processors, offering up to 76 cores per node. With 36 hot-swap drive bays, seven heavy-duty 8cm fans, and 1600W redundant power supplies, it's built for reliability and performance. Excellent for HPC, iSCSI SAN, and corporate databases, it features 16 DIMM slots, enhancing memory capacity to 4TB with DDR4-3200 ECC.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-640P-E1CR36H
    Motherboard
    Installed Motherboard
    • Super X12DPi-NT6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 38C/76T; Up to 57MB Cache per CPU
    Note
    • Supports 120W - 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-847BTS-R1K68LPBP4
    Dimensions and Weight
    Height
    • 7"
    Width
    • 17.2"
    Depth
    • 27.5"
    Package
    • 15" (H) x 27" (W) x 39" (D)
    Weight
    • Gross Weight: 102.5 lbs (46.4 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off

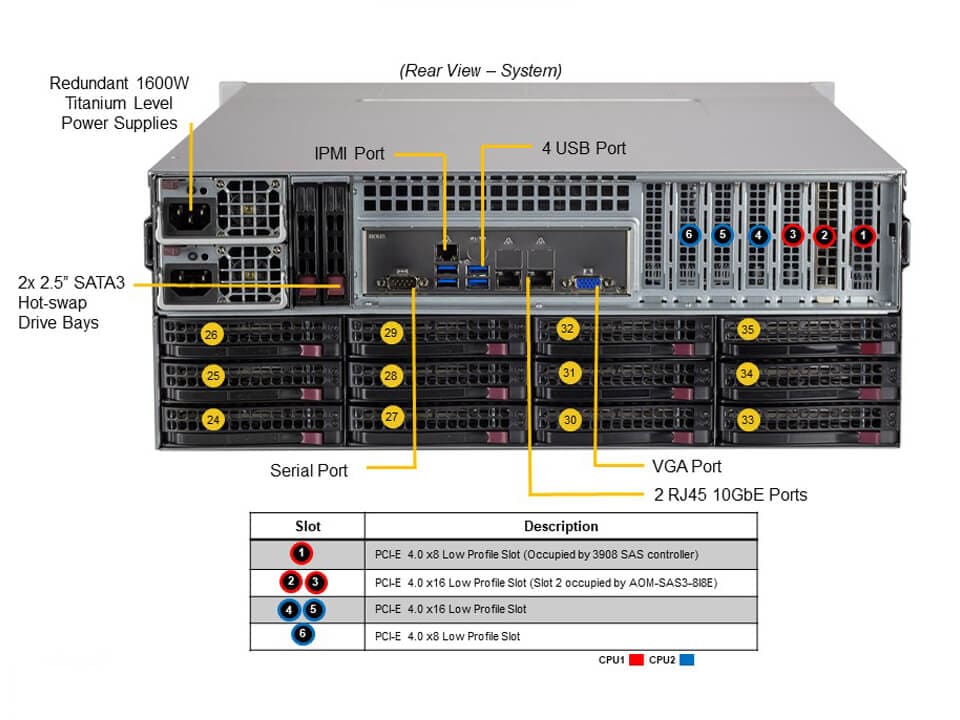

    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 LP slots
    • 1 PCIe 4.0 x8 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 38 bays:
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 12 rear hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SAS*/SATA drive bays

    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 NVMe slot (M-key)
    System Cooling
    Fans
    • 7 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 800W: 100-140Vac / 50-60Hz
    • 1600W: 180-240Vac / 50-60Hz

    +12V:
    • Max: 66A / Min: 0A (100Vac-140Vac)
    • Max: 133A / Min: 0A (180Vac-240Vac)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% ()
    • Non-operating Relative Humidity: 5% to 95% ()
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPi-NT61Super X12DPi-NT6 Motherboard
    CSE-847BTS-R1K68LPBP414U Chassis
    Add-on Card / Module
    AOC-S3908L-H8IR-P18 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
    AOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
    Backplane
    BPN-SAS3-826EL1-N4112-Port 2U BPN with EXP up to 8x3.5" SAS3 HDD& 4xNVMe
    BPN-SAS3-846EL1-N8124-Port 4U Exp. BPN Support up-to 16x3.5"HDD and 8XNVMe
    Cable
    CBL-0296L19" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    CBL-SAST-05314Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
    CBL-SAST-1264-1001Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-PWEX-10797PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0078P12U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    SNK-P0078PC12U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-1K68A-1R21U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
    *Power Distributor
    PDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
    *Fan
    FAN-0166L4780x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
    *Front Panel
    FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s)
    MCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-220-84708-ASM1SC847B LP MB Tray assembly,HF,RoHS/REACH
    *Rail Set
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-410-00007-0N1Rail screw bag
    *Air Shroud
    MCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB

    Optional Part List

    Part Number Quantity Description
    3916 Cache Protection
    BKT-BBU-BRACKET-05 or MCP-240-00203-0N1Remote Mounting Bracket for LSI BBUs, can hold 2x BTR-CVPM05
    BTR-CVPM051 or 2Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender
    Bezel
    MCP-210-84601-0B-Black Front Bezel For SC846 Chassis
    Converter Tray
    MCP-220-00043-0N-Black hot-swap gen 4 3.5 to 2.5 HDD tray
    External SAS Cable (FOR JBOD)
    CBL-SAST-0573-1m External Mini SAS HD to External Mini SAS HD.28AWG
    IPASS Cable
    CBL-SAST-0388L-02-30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
    Network Cards
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    Power Cord
    CBL-PWCD-0579-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    CBL-PWCD-0300-IS-PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
    CBL-PWCD-0579-1-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    Rear 3808 SAS Support
    AOC-S3808L-L8IT-O13808 SAS Controller
    CBL-SAST-1270-1001SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
    Rear 3908 SAS Support
    AOC-S3908L-H8IR-16DD-O13908 SAS Controller
    CBL-SAST-1270-1001SlimSASx8 STR SFF-8654 to 8xSATA 7-pin,70CM,100 Ohm,RoHS
    Toolless Converter Tray
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
