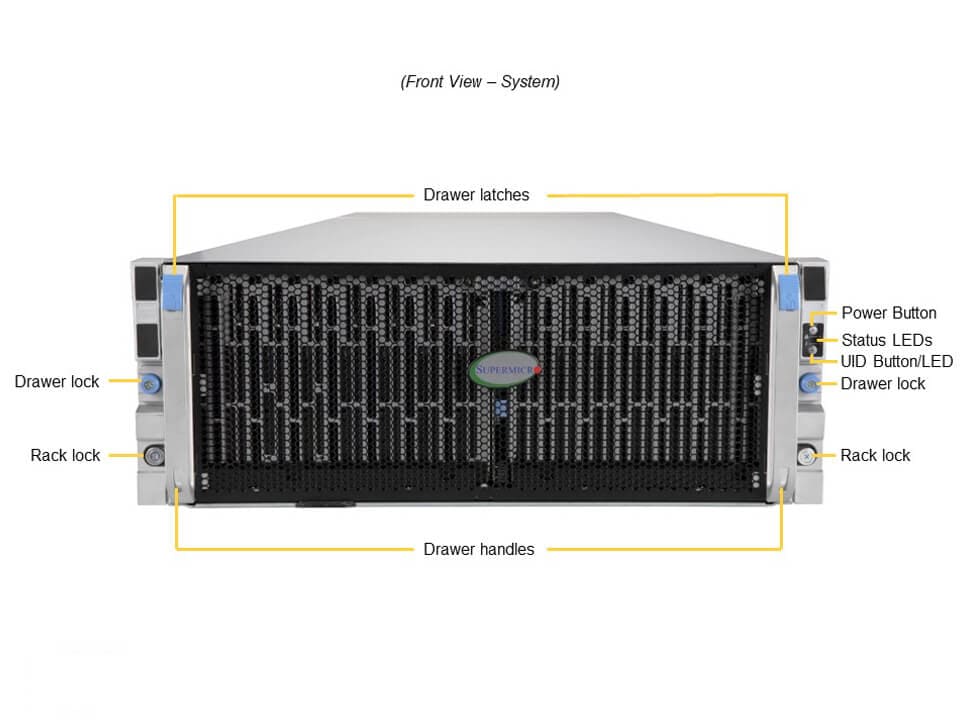

X12 Single Node 90-bay Storage Server

SSG-640SP-E1CR90

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device and 1 Server-Grade M.2/rear SATA SSD)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10554/image_1920?unique=8c618a3

kr 105 325,14 105325.14 NOK kr 105 325,14

kr 105 325,14

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SSG-640SP-E1CR90 offers robust storage solutions with dual socket 3rd Gen Intel Xeon Scalable processors, supporting up to 72 cores. Ideal for Big Data, HPC, and cloud service providers.

    Key Features

    • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores
    • 16 ECC DDR4-3200: LRDIMM/RDIMM
    • 3 x PCIe 4.0 x16 HHHL PCIe slots
    • 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
    • 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 2600W Redundant Power Supplies Titanium Level (96%)
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LANDrive Controller support via Broadcom® 3916 or 3616

    Key Applications

    • Big Data & Analytics, Data Lake
    • HPC and AI/ML Workloads
    • Telco & Cloud Service Providers
    • Financial Services & Healthcare Image Archives
    • Content Repositories
    • Government Data Protection

    Description

    The Supermicro SSG-640SP-E1CR90 is engineered for high-performance computing and extensive data storage needs. It supports dual socket 3rd Gen Intel Xeon Scalable processors with up to 72 cores and features 16 ECC DDR4-3200 slots for up to 4TB of memory. It includes 90 hot-swap SAS/SATA drives, dual NVMe M.2 slots, and multiple expansion slots for enhanced connectivity. Providing robust cooling and redundant 2600W power supplies, this system is ideal for Big Data, HPC, Cloud Services, and more.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-640SP-E1CR90
    Motherboard
    Installed Motherboard
    • Super X12DSC-6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports 120W - 205W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSV-947HTS-R2K63P
    Dimensions and Weight
    Height
    • 7"
    Width
    • 17.6"
    Depth
    • 42.1"
    Package
    • 29.92" (H) x 35.82" (W) x 53.15" (D)
    Weight
    • Gross Weight: 240 lbs (108.86 kg)
    • Net Weight: 150 lbs (68.04 kg)
    Available Color
    • Black
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 LP slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 96 bays:
    • 2 rear hot-swap 2.5" SATA drive bays
    • 4 rear hot-swap 2.5" NVMe* drive bays
    • 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 NVMe slots (M-key)
    System Cooling
    Fans
    • 6 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    HBA option
    AOM-S3816-S-O1SAS3816 mezzanine controller for serviceable 60/90 bay systems
    HW RAID option
    AOC-S3916L-H16IR1AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)
    AOM-SADPT-S1Bypass card for 60/90 bay systems
    CBL-SAST-1300-1001NCSI,2X Slimline x8 (STR) to 2X Slimline x8 STR,14Z14cm (One per Node)
    Network Cards
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    NVME kit (only 1 is needed)
    BPN-NVMe4-228N-S412U 4-Slot SFF BPN supports 4x NVMe Storage Devices
    MCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-PWEX-1093-261[NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/p
    CBL-SAST-10492[NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
    SuperCap Kit (Need Both items)
    MCP-240-94711-0N1SC947 MB Node Supercap holder module,RoHS (Optional)
    BTR-CVPM051Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
