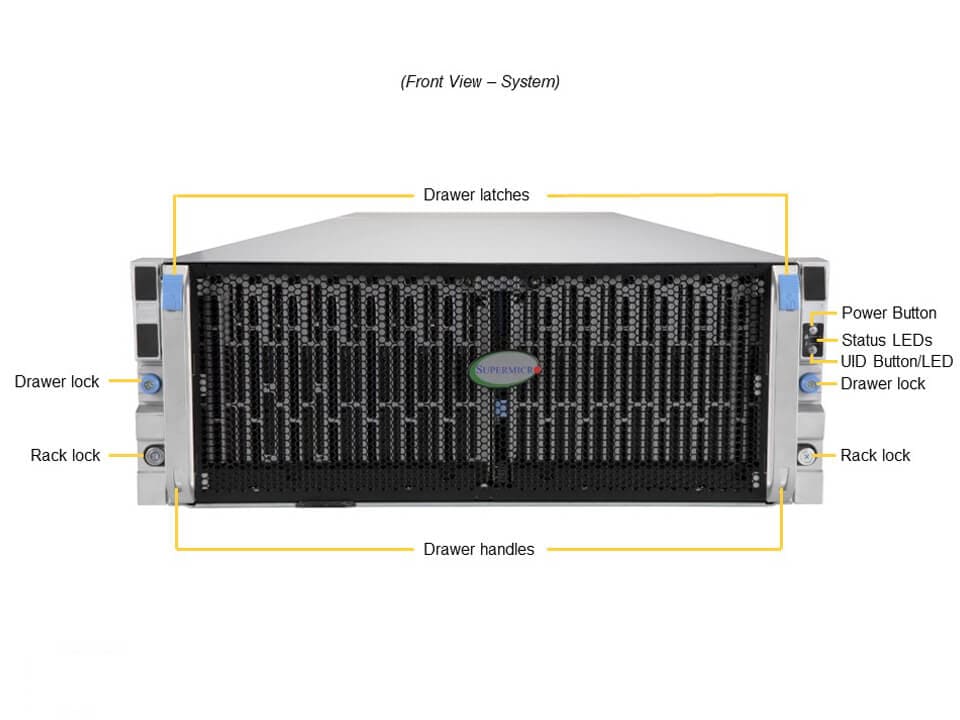

X12 Single Node 90-bay Storage Server

SSG-640SP-E1CR90

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device and 1 Server-Grade M.2/rear SATA SSD)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10554/image_1920?unique=7c1c8fe

kr 112,461.39 112461.39 NOK kr 112,461.39

kr 112,461.39

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SSG-640SP-E1CR90 offers robust storage solutions with dual socket 3rd Gen Intel Xeon Scalable processors, supporting up to 72 cores. Ideal for Big Data, HPC, and cloud service providers.

    Key Features

    • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores
    • 16 ECC DDR4-3200: LRDIMM/RDIMM
    • 3 x PCIe 4.0 x16 HHHL PCIe slots
    • 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
    • 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 2600W Redundant Power Supplies Titanium Level (96%)
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LANDrive Controller support via Broadcom® 3916 or 3616

    Key Applications

    • Big Data & Analytics, Data Lake
    • HPC and AI/ML Workloads
    • Telco & Cloud Service Providers
    • Financial Services & Healthcare Image Archives
    • Content Repositories
    • Government Data Protection

    Description

    The Supermicro SSG-640SP-E1CR90 is engineered for high-performance computing and extensive data storage needs. It supports dual socket 3rd Gen Intel Xeon Scalable processors with up to 72 cores and features 16 ECC DDR4-3200 slots for up to 4TB of memory. It includes 90 hot-swap SAS/SATA drives, dual NVMe M.2 slots, and multiple expansion slots for enhanced connectivity. Providing robust cooling and redundant 2600W power supplies, this system is ideal for Big Data, HPC, Cloud Services, and more.

    Product Specifications

    Product SKUs
    SuperServerSSG-640SP-E1CR90
    Motherboard
    Super X12DSC-6
    Processor
    CPUDual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 36C/72T; Up to 54MB Cache per CPU
    NoteSupports 120W - 205W TDP CPUs (Air Cooled)
    System Memory
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® C621A
    Network Connectivity2 RJ45 10GBASE-T
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 RJ45 10 GBASE-T LAN port(s)
    USB2 USB 3.0 port(s) (rear)
    Video1 VGA port(s)
    DOM2 SuperDOM(Disk on Module) port(s)
    System BIOS
    BIOS TypeAMI 128MB SPI Flash EEPROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    4+1 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor4U Rackmount
    ModelCSV-947HTS-R2K63P
    Dimensions and Weight
    Height7"
    Width17.6"
    Depth42.1"
    Package29.92" (H) x 35.82" (W) x 53.15" (D)
    WeightGross Weight: 240 lbs (108.86 kg)
    Net Weight: 150 lbs (68.04 kg)
    Available ColorBlack
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault3 PCIe 4.0 x16 LP slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 96 bay(s)2 rear hot-swap 2.5" SATA drive bay(s)4 rear hot-swap 2.5" NVMe* drive bay(s)90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bay(s)
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.22 M.2 NVMe slot(s) (M-key)
    View M.2 Options
    System Cooling
    Fans6 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2600W2x 2600W Redundant Titanium Level (96%) Hot-plug power suppliesDimension (WxHxL)73.5 x 40 x 265 mmAC Input2600W: 200-240Vac / 50-60Hz2600W: 200-240Vdc / 50-60Hz (for CQC only)+12VMax: 216A / Min: 0A (200Vac-240Vac)12V SBMax: 3.5AOutput TypeBackplanes (gold finger)
    2x 2600W2x 2600W Redundant Titanium Level (96%) Hot-plug power suppliesDimension (WxHxL)73.5 x 40 x 265 mmAC Input2600W: 200-240Vac / 50-60Hz2600W: 200-240Vdc / 50-60Hz (for CQC only)+12VMax: 216A / Min: 0A (200Vac-240Vac)12V SBMax: 3.5AOutput TypeBackplanes (gold finger)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (Non-Condensing)
    Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    HBA option
    Part NumberQuantityDescription
    AOM-S3616-S-O1Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controller chips, PCI switch, 2x NVMe M.2 (Form factors: 2280 and 22110), RoHS (One per Node)
    HW RAID option
    Part NumberQuantityDescription
    AOC-S3916L-H16IR1AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)
    AOM-SADPT-S1Bypass card for 60/90 bay systems
    CBL-SAST-1300-1001NCSI,2X Slimline x8 (STR) to 2X Slimline x8 STR,14Z14cm (One per Node)
    Network Cards
    Part NumberQuantityDescription
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    NVME kit (only 1 is needed)
    Part NumberQuantityDescription
    BPN-NVMe4-228N-S412U 4-Slot SFF BPN supports 4x NVMe Storage Devices
    MCP-220-00178-0B•42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    CBL-PWEX-1093-261[NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/p
    CBL-SAST-10492[NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
    SuperCap Kit (Need Both items)
    Part NumberQuantityDescription
    MCP-240-94711-0N1SC947 MB Node Supercap holder module,RoHS (Optional)
    BTR-CVPM051Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)
    TPM
    Part NumberQuantityDescription
    AOM-TPM-9670V-O•1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
