WIO System: CSE-116AC2-R706WBP + X11DDW-NT
SYS-1029P-WTRT
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-1029P-WTRT, featuring dual Socket P (LGA 3647) and support for 2nd Gen Intel® Xeon® Scalable processors, is built to handle complex tasks with ease. With up to 3TB 3DS ECC DDR4-2933MHz memory, extensive I/O options, and redundant power supplies, it's a reliable choice for demanding data center environments.
Key Features
- 2 SuperDOM (Disk on Module) ports

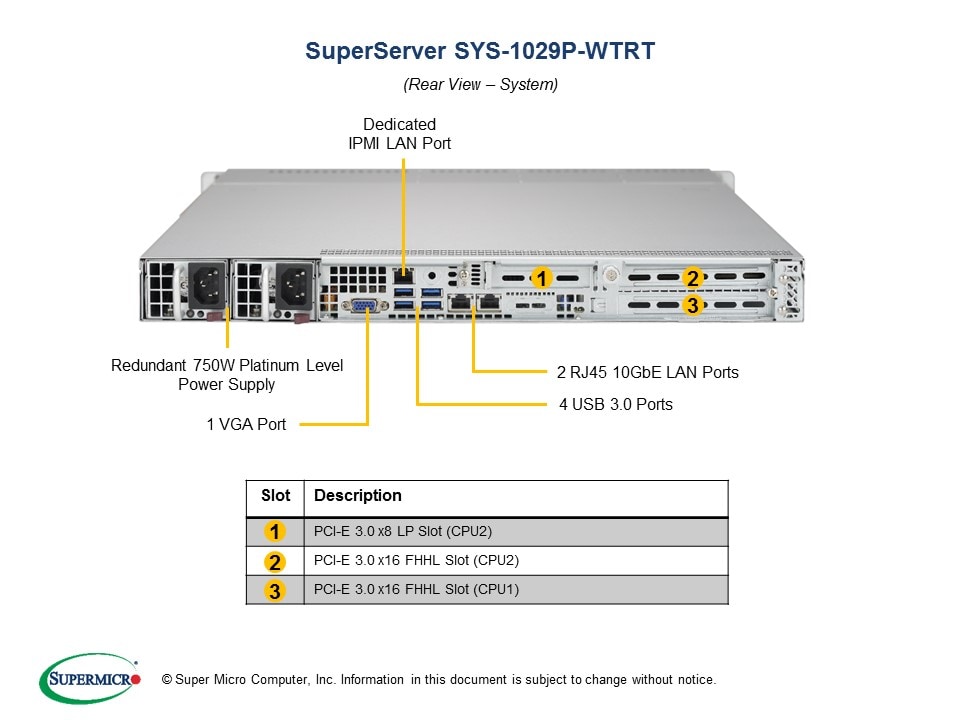

- 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
- 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
- 750W Redundant Power Supplies Platinum Level High-efficiency
- 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA3)
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) †
- 1 VGA, 6 USB 3.0 (4 rear, 2 front)
- 2x 10GBase-T LAN ports via Intel C622
Key Applications
- Web Server, Firewall Apps.
- Corporate-Wins, DNS, Print, Login
- Gateway, provisioning servers
- Compact Network Appliance
- Cloud Computing
Description
Supermicro's SYS-1029P-WTRT is designed to meet the advanced computing needs of modern enterprises. Equipped with dual Socket P (LGA 3647) and supporting 2nd Gen Intel® Xeon® Scalable processors, this server ensures high performance and efficiency. It offers 12 DIMMs for up to 3TB of memory and supports Intel® Optane™ DCPMM. The server features 10 hot-swap 2.5" SAS/SATA HDD bays, 2 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 slot, and 1 PCI-E 3.0 x16 expansion slot for versatile configuration options. Dual 10GBase-T LAN ports, multiple USB ports, and VGA output ensure excellent connectivity. With a 750W redundant power supply and advanced cooling systems, the SYS-1029P-WTRT guarantees uninterrupted operation even under heavy workloads.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-1029P-WTRT |
|
| Motherboard | |
| Super X11DDW-NT |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| Backplane | |
| SAS/SATA HDD Backplane |
|
| System Cooling | |
| Fans |
|
| AC/DC240V Input Redundant Power Supply | |
| 700W/750W Redundant Power Supplies with PM Bus |
|
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5V sb |
|
| Output Type |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DDW-NT | 1 | Super X11DDW-NT Motherboard |
| CSE-116AC2-R706WB2 | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-116A-N2 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Storage Cable 1 | ||
| CBL-SAST-0388L-02 | 1 | MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG |
| Storage Cable 2 | ||
| CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG |
| Rubber Pad | ||
| MCP-150-00015-0B | 2 | Rubber pad, 3.0mm H, 10x10mm |
| Air Shroud | ||
| MCP-310-19019-0B | 2 | SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud |
| Fan Holder | ||
| MCP-320-00061-0B | 1 | CR foam for air block in SC113/SC116/SC815 |
| Manual | ||
| MNL-2004-QRG | 1 | 1029P-WTRT Quick Reference Guide,HF,RoHS. |
| Riser Card (left) | ||
| RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card (right) | ||
| RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink w/ Retention | ||
| SNK-P0067PSMB | 2 | 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster |
| *Power Supply | ||
| PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
| *Power Cord | ||
| CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| *FAN | ||
| FAN-0101L4 | 4 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 |
| *Rail Set | ||
| MCP-290-00063-0N | 1 | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| NVMe Drive Tray with Lock & NVMe Cable | ||
| MCP-220-00127-0B &CBL-SAST-0929 | - | Black gen-3 2.5" NVMe drive tray (Orange tab. PUSH button with key lock);OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG,RoHS |
| NVMe Drive Tray with Lock(Toolless version) | ||
| MCP-220-00120-0B | - | Tool-less Black gen-3 2.5-inch NVMe drive tray (Orange tab. PUSH button with key lock) |
| Add-on card for additional M.2 NVMe | ||
| AOC-SLG3-2M2 | - | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules |
| Additional Fan | ||
| FAN-0101L4 | - | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 |
| Alternative Storage Controller Cable | ||
| CBL-SAST-0531 | - | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, up to 4 drives per cable |
| Front Bezel | ||
| MCP-210-11601-0B | 1 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) |
| Cable Management Arm | ||
| MCP-290-00085-0N | 1 | Supermicro Cable Management Arm for 1U Chassis |
| Inlet Thermal Sensor | ||
| MCP-280-00033-0N | - | Universal Thermal sensor kit with 80cm I2C cable |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC• | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
