WIO System: CSE-116AC2-R706WBP + X11DDW-NT

SYS-1029P-WTRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/1389/image_1920?unique=7c1c8fe

kr 21,709.45 21709.45 NOK kr 21,709.45

kr 21,709.45

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-1029P-WTRT, featuring dual Socket P (LGA 3647) and support for 2nd Gen Intel® Xeon® Scalable processors, is built to handle complex tasks with ease. With up to 3TB 3DS ECC DDR4-2933MHz memory, extensive I/O options, and redundant power supplies, it's a reliable choice for demanding data center environments.

    Key Features

    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††

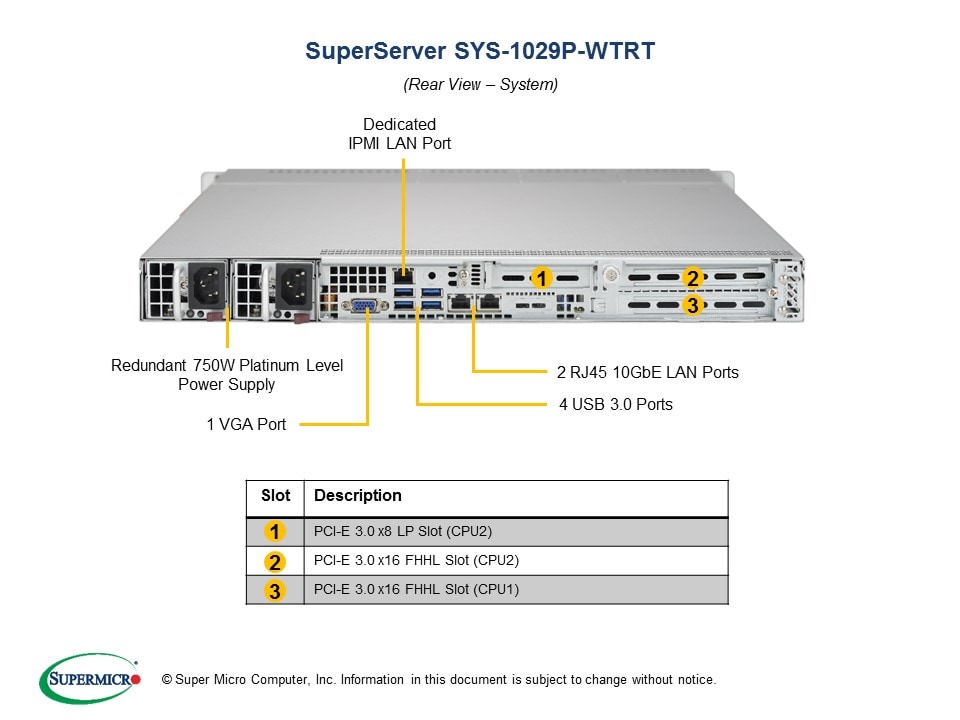

    • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
    • 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA3)
    • 2x 10GBase-T LAN ports via Intel C622
    • 1 VGA, 6 USB 3.0 (4 rear, 2 front)
    • 2 SuperDOM (Disk on Module) ports
    • 750W Redundant Power Supplies Platinum Level High-efficiency

    Key Applications

    • • Web Server, Firewall Apps. • Corporate-Wins, DNS, Print, Login • Gateway, provisioning servers • Compact Network Appliance • Cloud Computing

    Description

    Supermicro's SYS-1029P-WTRT is designed to meet the advanced computing needs of modern enterprises. Equipped with dual Socket P (LGA 3647) and supporting 2nd Gen Intel® Xeon® Scalable processors, this server ensures high performance and efficiency. It offers 12 DIMMs for up to 3TB of memory and supports Intel® Optane™ DCPMM. The server features 10 hot-swap 2.5" SAS/SATA HDD bays, 2 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 slot, and 1 PCI-E 3.0 x16 expansion slot for versatile configuration options. Dual 10GBase-T LAN ports, multiple USB ports, and VGA output ensure excellent connectivity. With a 750W redundant power supply and advanced cooling systems, the SYS-1029P-WTRT guarantees uninterrupted operation even under heavy workloads.

    Product Specifications

    Product SKUs
    SYS-1029P-WTRTSuperServer 1029P-WTRT (Black)
    Motherboard
    Super X11DDW-NTSuper X11DDW-NT
    Super X11DDW-NT
    Processor
    CPUDual Socket P (LGA 3647)
    2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    Support CPU TDP 70-165W*
    CoresUp to 28 Cores
    Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
    System Memory
    Memory Capacity12 DIMM slots
    Up to 3TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    Supports Intel® Optane™ DCPMM††
    Memory Type2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    ChipsetIntel® C622 chipset
    SATASATA3 (6Gbps); RAID 0, 1, 5, 10
    Network ControllersDual LAN with 10Gbase-T from C622
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    VideoASPEED AST2500 BMC
    Input / Output
    SATA8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
    LAN2 RJ45 10GBase-T ports
    1 RJ45 Dedicated IPMI LAN port
    USB6 USB 3.0 ports (4 rear, 2 front via header)
    Video1 VGA port
    DOM2 SuperDOM(Disk on Module) ports
    System BIOS
    BIOS TypeAMI 32Mb SPI Flash ROM
    Management
    SoftwareIntel® Node Manager
    IPMI 2.0
    KVM with dedicated LAN
    SSM,SPM,SUM
    SuperDoctor® 5
    Watch Dog
    Power ConfigurationsACPI / APM Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    4+1 Phase-switching voltage regulator
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor1U Rackmount
    ModelCSE-116AC2-R706WB2
    Dimensions and Weight
    Width17.2" (437mm)
    Height1.7" (43mm)
    Depth23.5" (597mm)
    Gross Weight46 lbs (20.9kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    UID button
    LEDsPower status LED
    HDD activity LED
    Network activity LEDs
    Universal Information (UID) LED
    Expansion Slots
    PCI-Express2 PCI-E 3.0 x16 (FHHL) slots
    1 PCI-E 3.0 x8 (LP) slot
    1 PCI-E 3.0 x16 for Add-on-Module (AOM)
    1 PCI-E 3.0 x4 NVMe M.2 slot
    Drive Bays
    Hot-swap8 SATA3 (6Gbps) ports and 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)
    Backplane
    SAS/SATA HDD BackplaneSAS/SATA HDD Backplane
    System Cooling
    Fans4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling
    AC/DC240V Input Redundant Power Supply
    700W/750W Redundant Power Supplies with PMBus700W/750W Redundant Power Supplies with PMBus
    Total Output Power700W/750W
    Dimension(W x H x L)54.5 x 40.25 x 320 mm
    Input100 - 140Vac / 8 - 6A / 50-60Hz
    200 - 240Vac / 4.5 - 3.8A / 50-60Hz
    200 - 240Vdc / 4.5 - 3.8A (CCC Only)
    +12VMax: 58A / Min: 0.5A (100 - 140Vac)
    Max: 62A / Min: 0.5A (200 - 240Vac)
    Max: 62A / Min: 0.5A (200 - 240Vdc)(CB/CCC Only)
    +5V sbMax: 3A / Min: 0A
    Output TypeGold Finger Connector Mating with Molex 45984-4343
    Certification
    Platinum Certified
    [Test Report]
    Test Report
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity:8% to 90% (non-condensing)
    Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X11DDW-NT1Super X11DDW-NT Motherboard
    CSE-116AC2-R706WB211U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-SAS3-116A-N2110-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    Storage Cable 1
    Part NumberQuantityDescription
    CBL-SAST-0388L-021MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
    Storage Cable 2
    Part NumberQuantityDescription
    CBL-SAST-0507-012MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG
    Rubber Pad
    Part NumberQuantityDescription
    MCP-150-00015-0B2Rubber pad, 3.0mm H, 10x10mm
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-19019-0B2SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
    Fan Holder
    Part NumberQuantityDescription
    MCP-320-00061-0B1CR foam for air block in SC113/SC116/SC815
    Manual
    Part NumberQuantityDescription
    MNL-2004-QRG11029P-WTRT Quick Reference Guide,HF,RoHS.
    Riser Card (left)
    Part NumberQuantityDescription
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card (right)
    Part NumberQuantityDescription
    RSC-R1UW-E8R11U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink w/ Retention
    Part NumberQuantityDescription
    SNK-P0067PSMB21U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
    *Power Supply
    Part NumberQuantityDescription
    PWS-706P-1R21U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    *Power Cord
    Part NumberQuantityDescription
    CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    *FAN
    Part NumberQuantityDescription
    FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00063-0N1Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH

    Optional Part List

    NVMe Drive Tray with Lock & NVMe Cable
    Part NumberQuantityDescription
    MCP-220-00127-0B &CBL-SAST-0929-Black gen-3 2.5" NVMe drive tray (Orange tab. PUSH button with key lock);OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG,RoHS
    NVMe Drive Tray with Lock(Toolless version)
    Part NumberQuantityDescription
    MCP-220-00120-0B-Tool-less Black gen-3 2.5-inch NVMe drive tray (Orange tab. PUSH button with key lock)
    Add-on card for additional M.2 NVMe
    Part NumberQuantityDescription
    AOC-SLG3-2M2-Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Additional Fan
    Part NumberQuantityDescription
    FAN-0101L4-40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Alternative Storage Controller Cable
    Part NumberQuantityDescription
    CBL-SAST-0531-Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, up to 4 drives per cable
    Front Bezel
    Part NumberQuantityDescription
    MCP-210-11601-0B1Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support)
    Cable Management Arm
    Part NumberQuantityDescription
    MCP-290-00085-0N1Supermicro Cable Management Arm for 1U Chassis
    Inlet Thermal Sensor
    Part NumberQuantityDescription
    MCP-280-00033-0N-Universal Thermal sensor kit with 80cm I2C cable
    Global Services & Support
    Part NumberQuantityDescription
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC•1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
