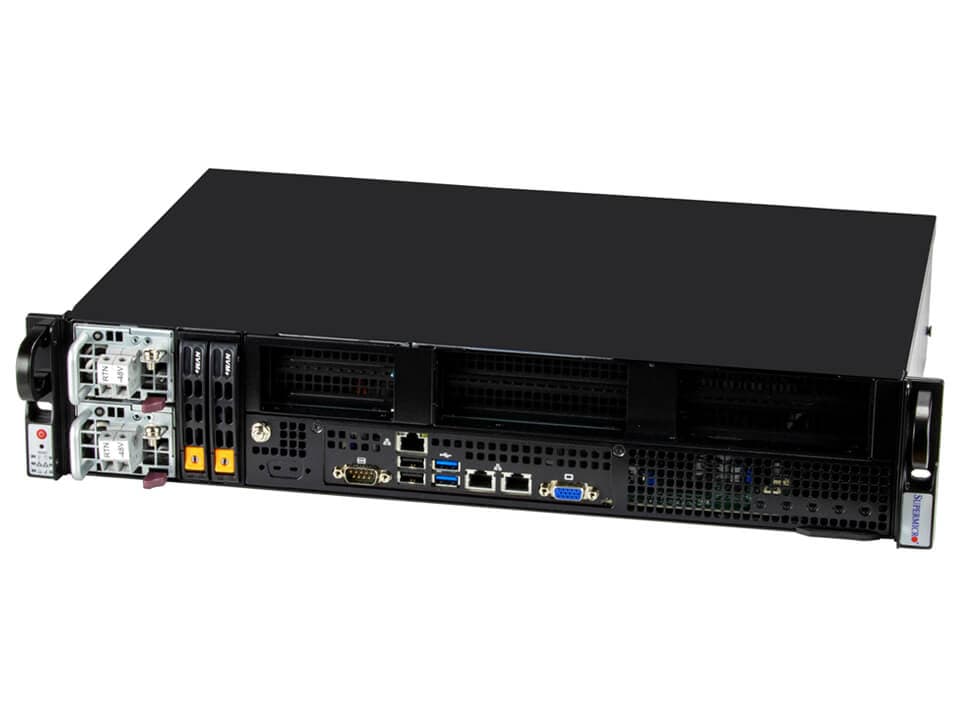

X13 2U 300mm Rackmount Server, X13SEM-TF, CSE-211M

SYS-211E-FRDN2T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10314/image_1920?unique=a1dbe1e

kr 26 939,90 26939.9 NOK kr 26 939,90

kr 26 939,90

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-211E-FRDN2T is a 2U front I/O edge server designed for 5G, AI Inference, and cloud applications, featuring single socket 4th/5th Gen Intel Xeon Scalable processors with up to 60 cores, and up to 2TB DDR5 memory.

    Key Features

    • Design with compliance to NEBS-Level 3
    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
    • Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-CardsUp to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
    • Onboard 2x 10GbE ports
    • 2x 2.5" NVMe drive bays
    • Redundant 600W DC -48V Power Supplies
    • Ultra short depth, 2U Front I/O Edge Server

    Key Applications

    • 5G Core and Edge
    • AI Inference and Machine Learning
    • Network Function Virtualization
    • Cloud Computing

    Description

    The Supermicro SYS-211E-FRDN2T is built to meet the demanding requirements of modern data centers and edge computing environments. It supports up to 60 cores from Intel's 4th and 5th Gen Xeon Scalable processors, ensuring robust performance for intense workloads. The system offers eight DIMM slots for up to 2TB DDR5 memory, providing high-speed data processing. The server includes multiple PCIe 5.0 slots for various expansion cards, two NVMe drive bays, and onboard 10GbE ports for high-speed networking. In addition, it features redundant 600W DC -48V power supplies and an ultra-short depth design for space-constrained installations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-211E-FRDN2T
    Motherboard
    Installed Motherboard
    • Super X13SEM-TF
    Processor
    CPU
    • Single Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 60C/120T; Up to 112.5MB Cache
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU Count
    • Up to 3 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: A2
    • Intel PCIe: Intel Data Center GPU Flex 140
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    NVMe
    • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 QSFP28 25GbE with Intel® XXV710 (optional)
    • 2 QSFP+ 40GbE with Intel® X710-BM2 (optional)
    • 4 RJ45 1GbE with Intel® I350 (optional)
    • 2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
    • 2 RJ45 10GBASE-T with Intel® X550
    • 2 SFP+ 10GbE with Intel® X710-BM2 (optional)
    • 2 QSFP56 100GbE (optional)
    • 4 QSFP28 25GbE with Intel® E810-CAM1 (optional)
    • 2 QSFP56 200GbE (optional)
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB
    • 2 USB 2.0 port(s) (front)
    • 2 USB 3.2 Gen1 port(s) (front)
    Video
    • 1 VGA port(s)
    Serial
    • 1 port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-211M
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 11.8" (298.8 mm)
    Package
    • 7.4" (H) x 19.3" (W) x 23.3" (D)
    Weight
    • Gross Weight: 22 lbs (10 kg)
    • Net Weight: 17 lbs (7.7 kg)
    Available Color
    • Silver/Black
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 HHHL slot

    Option A*:
    • 3 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 FHHL slot

    Option B*:
    • 3 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x8 HHHL slots
    • 1 PCIe 5.0 x8 HHHL slot

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    Drive Bays / Storage
    M.2
    Drive Bays Configuration
    System Cooling
    Fans
    • 4x 4-PIN PWM 8cm Fan(s)
    Power Supply
    2x 600W Redundant Typical 90%+ Level (92%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SEM-TF1Super X13SEM-TF Motherboard
    CSE-211M12U Chassis
    Backplane
    BPN-NVME5-826N-B2B12-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Cable
    CBL-MCIO-1230M51MCIO x8 (STR to STR),30CM,85OHM,RoHS
    CBL-PCBA-G5T16-08091[NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS
    CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    CBL-MCIO-1218M5OR1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5-1-MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5ROR1MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
    CBL-MCIO-1218M5R-1-MCIO x8 (STR to RA),18CM,85OHM,RoHS
    CBL-MCIO-1230M5ROR1MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-MCIO-1230M5R-1-[NR] MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-CDAT-10581[NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
    Drive Tray(s)
    MCP-220-00167-0B2Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    MCP-220-00147-0B2Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
    Parts
    MCP-260-21102-0B11U height IO shield for X13SEM-F/TF MBD, with gasket, bl
    Air Shroud
    MCP-310-21105-0B1Mylar air shroud for 211M w/ X13SEM-TF
    Manual
    MNL-2519-QRG1211E-FRDN2T/FRN2T Quick Reference Guide
    Power Distributor
    PDB-PT211M-342412U support redundancy powers up to 800W for SC211M with 2 Mi
    Power Supply
    PWS-601S-1R21U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
    Riser Card
    RSC-S-68G511U LHS Standard riser card with one PCIe 5.0X16andonePC
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0088P12U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Fan
    FAN-0220L4480x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
    *Front Panel
    FPB-TB826116 pin Cable Adaptor Board for SC826
    *Rail Set
    MCP-290-21106-0N11U height sliding rail for SC211M chassis
