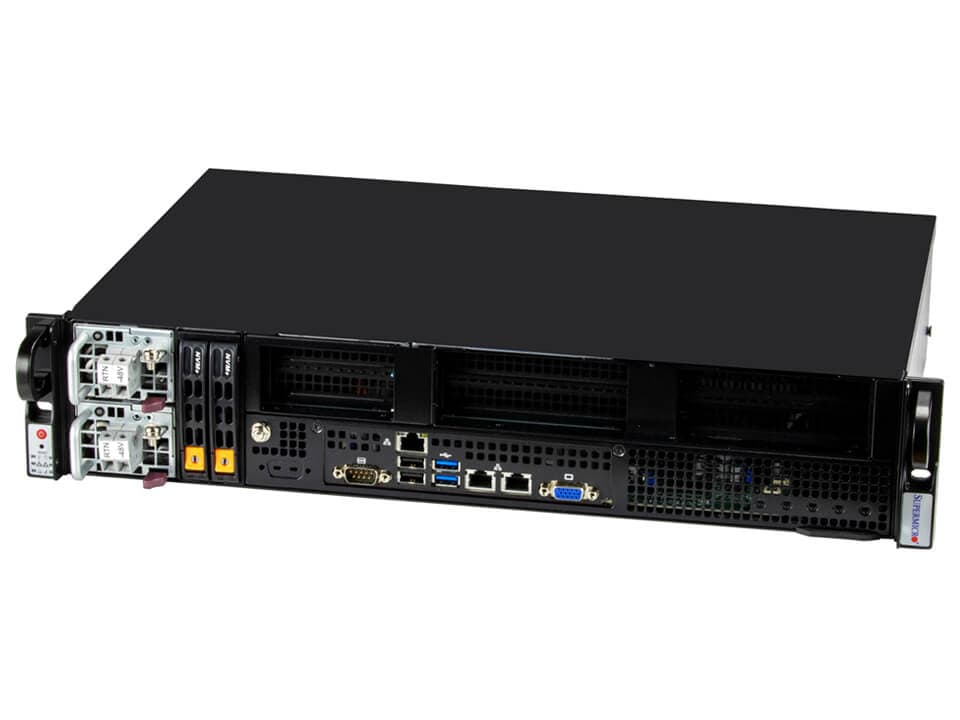

X13 2U 300mm Rackmount Server, X13SEM-TF, CSE-211M

SYS-211E-FRDN2T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10314/image_1920?unique=131e0ee

kr 29,635.57 29635.57 NOK kr 29,635.57

kr 29,635.57

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-211E-FRDN2T is a 2U front I/O edge server designed for 5G, AI Inference, and cloud applications, featuring single socket 4th/5th Gen Intel Xeon Scalable processors with up to 60 cores, and up to 2TB DDR5 memory.

    Key Features

    • Design with compliance to NEBS-Level 3
    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
    • Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-CardsUp to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
    • Onboard 2x 10GbE ports
    • 2x 2.5" NVMe drive bays
    • Redundant 600W DC -48V Power Supplies
    • Ultra short depth, 2U Front I/O Edge Server

    Key Applications

    • 5G Core and Edge
    • AI Inference and Machine Learning
    • Network Function Virtualization
    • Cloud Computing

    Description

    The Supermicro SYS-211E-FRDN2T is built to meet the demanding requirements of modern data centers and edge computing environments. It supports up to 60 cores from Intel's 4th and 5th Gen Xeon Scalable processors, ensuring robust performance for intense workloads. The system offers eight DIMM slots for up to 2TB DDR5 memory, providing high-speed data processing. The server includes multiple PCIe 5.0 slots for various expansion cards, two NVMe drive bays, and onboard 10GbE ports for high-speed networking. In addition, it features redundant 600W DC -48V power supplies and an ultra-short depth design for space-constrained installations.

    Product Specifications

    Product SKUs
    SuperServerSYS-211E-FRDN2T
    Motherboard
    Super X13SEM-TF
    Processor
    CPUSingle Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Core CountUp to 60C/120T; Up to 112.5MB Cache
    NoteSupports up to 350W TDP CPUs (Air Cooled)*
    *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU CountUp to 3 single-width GPU(s)
    Supported GPUNVIDIA PCIe: A2
    Intel PCIe: Intel Data Center GPU Flex 140
    View GPU Options
    CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU InterconnectPCIe
    System Memory
    MemorySlot Count: 8 DIMM slots
    Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    NVMeNVMe; RAID 0/1 support(Intel® VROC RAID key required)
    View NVMe Options
    ChipsetIntel® C741
    Network Connectivity2 QSFP28 25GbE with Intel® XXV710 (optional)
    2 QSFP+ 40GbE with Intel® X710-BM2 (optional)
    4 RJ45 1GbE with Intel® I350 (optional)
    2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
    2 RJ45 10GBASE-T with Intel® X550
    2 SFP+ 10GbE with Intel® X710-BM2 (optional)
    2 QSFP56 100GbE (optional)
    4 QSFP28 25GbE with Intel® E810-CAM1 (optional)
    2 QSFP56 200GbE (optional)
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB2 USB 2.0 port(s) (front)
    2 USB 3.2 Gen1 port(s) (front)
    Video1 VGA port(s)
    Serial1 port(s)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support, PEPI
    Chassis
    Form Factor2U Rackmount
    ModelCSE-211M
    Dimensions and Weight
    Height3.5" (88.9 mm)
    Width17.2" (436.88 mm)
    Depth11.8" (298.8 mm)
    Package7.4" (H) x 19.3" (W) x 23.3" (D)
    WeightGross Weight: 22 lbs (10 kg)
    Net Weight: 17 lbs (7.7 kg)
    Available ColorSilver/Black
    Front Panel
    LEDHDD activity
    LAN1 activity
    LAN2 activity
    Power status
    System information
    ButtonsPower On/Off
    UID button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 5.0 x16 FHHL slot(s)1 PCIe 5.0 x16 HHHL slot(s)1 PCIe 5.0 x8 HHHL slot(s)
    Option A*3 PCIe 5.0 x16 FHHL slot(s)1 PCIe 5.0 x16 HHHL slot(s)1 PCIe 5.0 x8 FHHL slot(s)
    Option B*3 PCIe 5.0 x16 FHHL slot(s)2 PCIe 5.0 x8 HHHL slot(s)1 PCIe 5.0 x8 HHHL slot(s)
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    View AOC Options
    Drive Bays / Storage
    M.2View M.2 Options
    Drive Bays ConfigurationView NVMe Options
    System Cooling
    Fans4x 4-PIN PWM 8cm Fan(s)
    Power Supply
    2x 600W2x 600W Redundant Typical 90%+ Level (92%) power suppliesDimension (WxHxL)54.5 x 40 x 220 mm5V SBMax: 3A / Min: 0AOutput TypeBackplanes (gold finger)
    2x 600W2x 600W Redundant Typical 90%+ Level (92%) power suppliesDimension (WxHxL)54.5 x 40 x 220 mm5V SBMax: 3A / Min: 0AOutput TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SEM-TF1Super X13SEM-TF Motherboard
    CSE-211M12U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-NVME5-826N-B2B12-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Cable
    Part NumberQuantityDescription
    CBL-MCIO-1230M51MCIO x8 (STR to STR),30CM,85OHM,RoHS
    CBL-PCBA-G5T16-08091[NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS
    CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    CBL-MCIO-1218M5OR1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5-1-MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5ROR1MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
    CBL-MCIO-1218M5R-1-MCIO x8 (STR to RA),18CM,85OHM,RoHS
    CBL-MCIO-1230M5ROR1MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-MCIO-1230M5R-1-[NR] MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-CDAT-10581[NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
    Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00167-0B2Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    MCP-220-00147-0B2Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
    Parts
    Part NumberQuantityDescription
    MCP-260-21102-0B11U height IO shield for X13SEM-F/TF MBD, with gasket, bl
    Air Shroud
    Part NumberQuantityDescription
    MCP-310-21105-0B1Mylar air shroud for 211M w/ X13SEM-TF
    Manual
    Part NumberQuantityDescription
    MNL-2519-QRG1211E-FRDN2T/FRN2T Quick Reference Guide
    Power Distributor
    Part NumberQuantityDescription
    PDB-PT211M-342412U support redundancy powers up to 800W for SC211M with 2 Mi
    Power Supply
    Part NumberQuantityDescription
    PWS-601S-1R21U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
    Riser Card
    Part NumberQuantityDescription
    RSC-S-68G511U LHS Standard riser card with one PCIe 5.0X16andonePC
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0088P12U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Fan
    Part NumberQuantityDescription
    FAN-0220L4480x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
    *Front Panel
    Part NumberQuantityDescription
    FPB-TB826116 pin Cable Adaptor Board for SC826
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-21106-0N11U height sliding rail for SC211M chassis
