  2. X13SET-PT, CSV-217HQ+ BPN-ADP-6SATA3P, AC 2000W

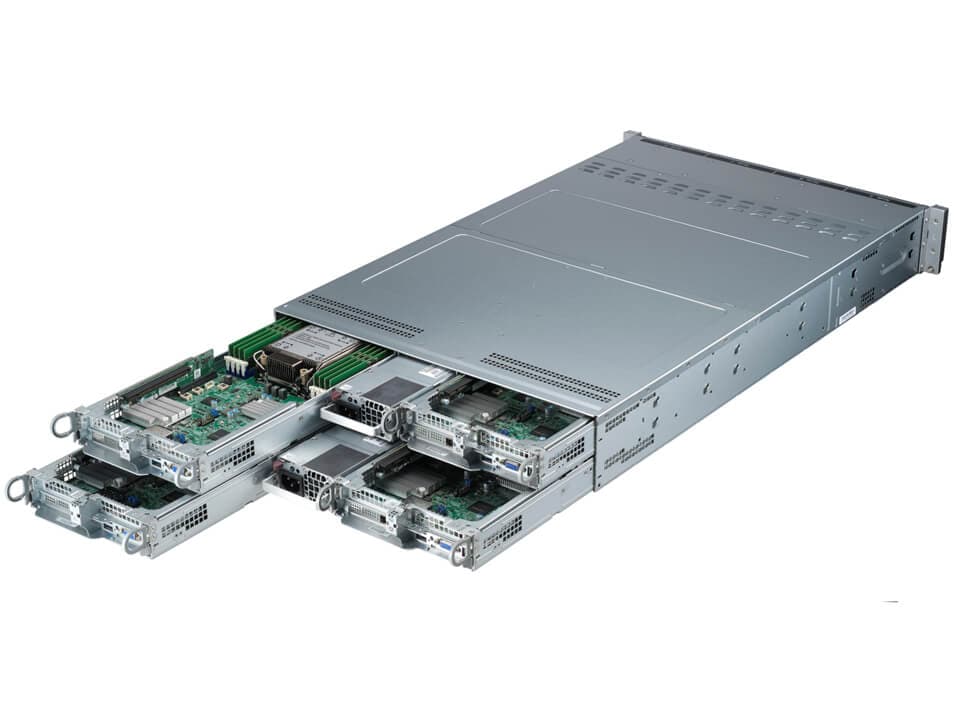

X13SET-PT, CSV-217HQ+ BPN-ADP-6SATA3P, AC 2000W

SKU: SYS-211TP-HPTR
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10300/image_1920?unique=2d13a42

kr 60 821,29 60821.29 NOK kr 60 821,29 Ekskl. mva

kr 60 821,29 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-211TP-HPTR is a versatile 2U rackmount server engineered for edge computing applications. It features a single socket E (LGA-4677) supporting 5th/4th Gen Intel Xeon Scalable processors, up to 2TB ECC DDR5 memory per node, and dual-port 10G SFP+ onboard for high-performance connectivity.

    Nøkkelfunksjoner

    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors (per node)
    • Intel® C741 Chipset
    • 8 DIMMs; Up to 2TB ECC DDR5-5600MT/s R-DIMM / R-DIMM 3DS (per node)
    • 2 PCIe Gen5 x16 HHHL slot (per node)
    • 2 NVMe M.2 2280 / 25110 (per node)Front hot-swappable 2.5” HDD/SSD tray (6 tray per node)
    • 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
    • 1+1 Redundant 2000W AC Power Supplies (per system)
    • Intel® X710 Dual port 10G SFP+ onboard

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Telecom DRAN, CRAN, and Edge Core Application
    • Enterprise Edge Computing

    Beskrivelse

    Supermicro SYS-211TP-HPTR is designed for edge computing environments. It supports single socket E (LGA-4677) for 5th/4th Gen Intel Xeon Scalable processors, Intel C741 chipset, and up to 2TB ECC DDR5-5600MT/s R-DIMM per node. It includes 2 PCIe Gen5 x16 slots, 2 NVMe M.2 slots, and a front-accessible 6-tray hot-swappable 2.5-inch HDD/SSD configuration per node. The system is cooled by four 8cm heavy-duty PWM fans and powered by 1+1 redundant 2000W Titanium level power supplies.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-211TP-HPTR
    Motherboard
    Installed Motherboard
    • Super X13SET-PT
    Processor (per Node)
    CPU
    • Single Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 60C/120T; Up to 300MB Cache
    Note
    • Supports 85W - 270W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 8 DIMM slots/1 Channels
    • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices (per Node)
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 SFP+ 10GbE with Intel® X710-BM2
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP+ 10 GbE LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    Video
    • 1 VGA port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    BIOS Features
    • RTC (Real Time Clock) Wakeup
    • SPI dual/quad speed support
    • Riser Card audio detection support
    • ACPI Power Management 6.4
    • SMBIOS 3.5 or later
    • PCI firmware 4.0
    • UEFI 2.9
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode for power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217HQ+-R2K04BP4
    Dimensions and Weight
    Height
    • 3.5" (88 mm)
    Width
    • 17.25" (438 mm)
    Depth
    • 28.75" (730 mm)
    Package
    • 9.8" (H) x 20.7" (W) x 38" (D)
    Weight
    • Gross Weight: 90 lbs (40.8 kg)
    • Net Weight: 70 lbs (31.8 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • Network activity LED
    • Power status LED
    • System information (overheat/UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 HHHL slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 2.5" SATA drive bays

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control 8cm Fan(s)
    Air Shroud
    • 4 Air Shroud(s)
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    • Non-operating Temperature: 0°C to 70°C (32°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SET-PT4Super X13SET-PT Motherboard
    CSE-217HQ+-R2K04BP412U Chassis
    Backplane
    BPN-ADP-6SATA3P4Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
    BPN-SAS3-217HQ312U 24-Slot 4-Node TwinPro Backplane Supports up to 6x 2.5 SA
    Cable
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Parts
    MCP-150-00015-0B4Rubber pad, 3.0mm H, 10x10mm
    Riser Card
    RSC-P-6G541U LHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF,
    RSC-PR-6G541U RHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF
    Software
    SFT-OOB-LIC4License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0087V41U Passive CPU VC HS for X13 Intel Eagle Stream Platform
    *Power Supply
    PWS-2K04A-1R2AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    *Power Distributor
    PDB-PT217-H241212U support redundancy input powers up to 2.6KW for Twin seri
    *Fan
    FAN-0183L4480x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
    *Drive Tray(s)
    MCP-220-00047-0B24Black gen 3rd hot-swap 2.5inch HDD tray
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    *Fan Holder
    MCP-320-21701-0N2Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH

    Valgfrie Opsjoner

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670H-FIPS-O1AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS
