X13SET-PT, CSV-217HQ+ BPN-ADP-6SATA3P, AC 2000W

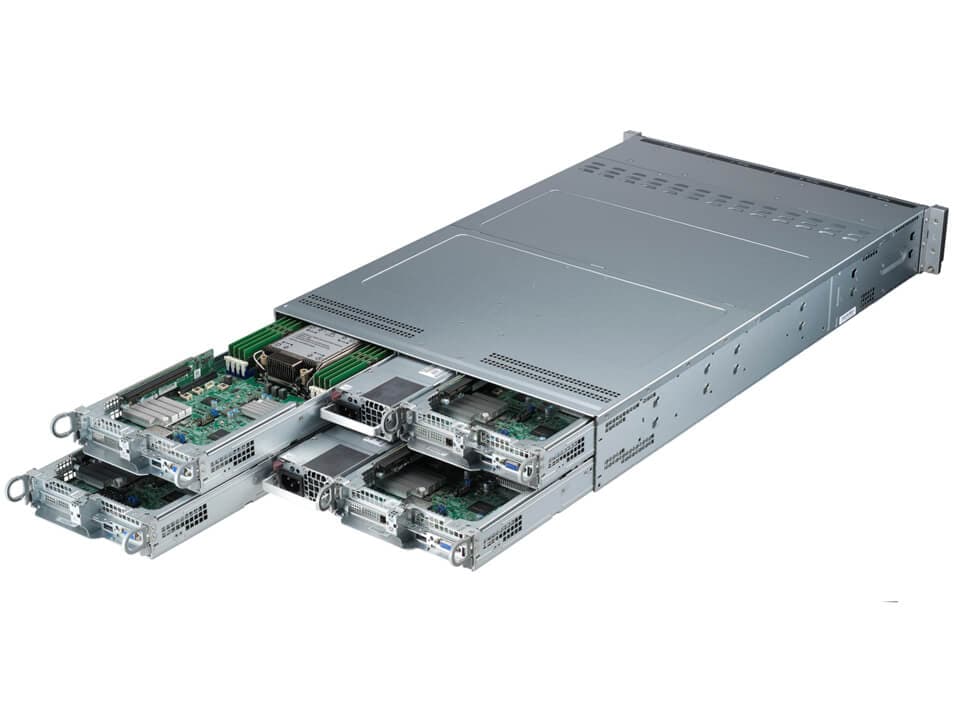

SYS-211TP-HPTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10300/image_1920?unique=dec9d2d

kr 74,717.98 74717.98 NOK kr 74,717.98

kr 74,717.98

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-211TP-HPTR is a versatile 2U rackmount server engineered for edge computing applications. It features a single socket E (LGA-4677) supporting 5th/4th Gen Intel Xeon Scalable processors, up to 2TB ECC DDR5 memory per node, and dual-port 10G SFP+ onboard for high-performance connectivity.

    Key Features

    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors (per node)
    • Intel® C741 Chipset
    • 8 DIMMs; Up to 2TB ECC DDR5-5600MT/s R-DIMM / R-DIMM 3DS (per node)
    • 2 PCIe Gen5 x16 HHHL slot (per node)
    • 2 NVMe M.2 2280 / 25110 (per node)Front hot-swappable 2.5” HDD/SSD tray (6 tray per node)
    • 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
    • 1+1 Redundant 2000W AC Power Supplies (per system)
    • Intel® X710 Dual port 10G SFP+ onboard

    Key Applications

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Telecom DRAN, CRAN, and Edge Core Application
    • Enterprise Edge Computing

    Description

    Supermicro SYS-211TP-HPTR is designed for edge computing environments. It supports single socket E (LGA-4677) for 5th/4th Gen Intel Xeon Scalable processors, Intel C741 chipset, and up to 2TB ECC DDR5-5600MT/s R-DIMM per node. It includes 2 PCIe Gen5 x16 slots, 2 NVMe M.2 slots, and a front-accessible 6-tray hot-swappable 2.5-inch HDD/SSD configuration per node. The system is cooled by four 8cm heavy-duty PWM fans and powered by 1+1 redundant 2000W Titanium level power supplies.

    Product Specifications

    Product SKUs
    SuperServerSYS-211TP-HPTR
    Motherboard
    Super X13SET-PT
    Processor (per Node)
    CPUSingle Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Core CountUp to 60C/120T; Up to 300MB Cache
    NoteSupports 85W - 270W TDP CPUs (Air Cooled)
    System Memory (per Node)
    MemorySlot Count: 8 DIMM slots/1 Channels
    Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices (per Node)
    SATASATA (6Gbps)
    ChipsetIntel® C741
    Network Connectivity2 SFP+ 10GbE with Intel® X710-BM2
    View AOC Options
    Input / Output (per Node)
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 SFP+ 10 GbE LAN port(s) (IPMI shared on LAN port 1)
    USB2 USB 3.2 Gen1 Type-A port(s) (rear)
    Video1 VGA port(s) (Rear)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    BIOS FeaturesRTC (Real Time Clock) Wakeup
    SPI dual/quad speed support
    Riser Card audio detection support
    ACPI Power Management 6.4
    SMBIOS 3.5 or later
    PCI firmware 4.0
    UEFI 2.9
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI Power Management
    Power-on mode for power recovery
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPU thermal trip support, PEPI
    Chassis
    Form Factor2U Rackmount
    ModelCSE-217HQ+-R2K04BP4
    Dimensions and Weight
    Height3.5" (88 mm)
    Width17.25" (438 mm)
    Depth28.75" (730 mm)
    Package9.8" (H) x 20.7" (W) x 38" (D)
    WeightGross Weight: 90 lbs (40.8 kg)
    Net Weight: 70 lbs (31.8 kg)
    Available ColorBlack front & silver body
    Front Panel
    LEDNetwork activity LED
    Power status LED
    System information (overheat/UID) LED
    ButtonsPower On/Off button
    UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 5.0 x16 HHHL slot(s)
    View AOC Options
    Drive Bays / Storage (per Node)
    Drive Bays ConfigurationDefault: Total 6 bay(s)6 front hot-swap 2.5" SATA drive bay(s)
    View Drive Options
    M.22 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110/25110; VROC required for RAID)
    View M.2 Options
    System Cooling
    Fans4 heavy duty fans with optimal fan speed control 8cm Fan(s)
    Air Shroud4 Air Shroud(s)
    Power Supply
    2x 2000W2x 2000W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)76 x 40 x 336 mmAC Input1000W: 100-127Vac / 50-60Hz1800W: 200-220Vac / 50-60Hz2000W: 200-240Vac / 50-60Hz (for UL/cUL only)1980W: 220-230Vac / 50-60Hz2000W: 230-240Vac / 50-60Hz+12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (230Vac-240Vac)5V SBMax: 1A / Min: 0AOutput TypeBackplanes (gold finger)CertificationTitanium Level[Test Report]
    2x 2000W2x 2000W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)76 x 40 x 336 mmAC Input1000W: 100-127Vac / 50-60Hz1800W: 200-220Vac / 50-60Hz2000W: 200-240Vac / 50-60Hz (for UL/cUL only)1980W: 220-230Vac / 50-60Hz2000W: 230-240Vac / 50-60Hz+12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (230Vac-240Vac)5V SBMax: 1A / Min: 0AOutput TypeBackplanes (gold finger)CertificationTitanium Level[Test Report]
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    Non-operating Temperature: 0°C to 70°C (32°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SET-PT4Super X13SET-PT Motherboard
    CSE-217HQ+-R2K04BP412U Chassis
    Backplane
    Part NumberQuantityDescription
    BPN-ADP-6SATA3P4Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
    BPN-SAS3-217HQ312U 4-Node TwinPro Backplane for 6x2.5� SAS3/SATA3 HDD/SDD
    Cable
    Part NumberQuantityDescription
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Parts
    Part NumberQuantityDescription
    MCP-150-00015-0B4Rubber pad, 3.0mm H, 10x10mm
    Riser Card
    Part NumberQuantityDescription
    RSC-P-6G541U LHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF,
    RSC-PR-6G541U RHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC4License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-P0087V41U Passive CPU VC HS for X13 Intel Eagle Stream Platform
    *Power Supply
    Part NumberQuantityDescription
    PWS-2K04A-1R2AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    *Power Distributor
    Part NumberQuantityDescription
    PDB-PT217-H241212U support redundancy input powers up to 2.6KW for Twin seri
    *Fan
    Part NumberQuantityDescription
    FAN-0183L4480x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
    *Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-00047-0B24Black gen 3rd hot-swap 2.5inch HDD tray
    *Rail Set
    Part NumberQuantityDescription
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    *Fan Holder
    Part NumberQuantityDescription
    MCP-320-21701-0N2Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH

    Optional Part List

    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670H-FIPS-O1AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS
