  2. MBD-X13DET-B,CSE-217BQ2-R3K04P,SCC-P6N6SGH-B1,SCC-B8SB80

MBD-X13DET-B,CSE-217BQ2-R3K04P,SCC-P6N6SGH-B1,SCC-B8SB80

SKU: SYS-221BT-HNC8R
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10304/image_1920?unique=04e8906

kr 110 515,21 110515.21 NOK kr 110 515,21 Ekskl. mva

kr 110 515,21 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

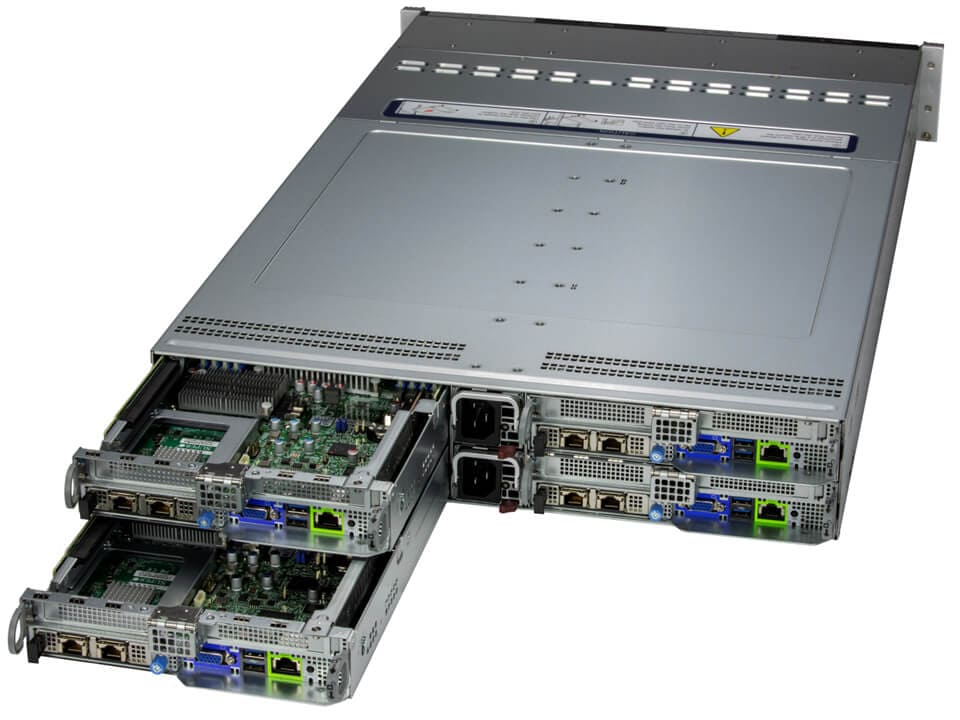

    The Supermicro SYS-221BT-HNC8R is a high-performance 2U rackmount server featuring dual Socket E support for 5th/4th Gen Intel® Xeon® Scalable processors, up to 4TB of DDR5 memory, and advanced cooling options. Ideal for HPC, hyperconverged infrastructure, and container-as-a-service applications.

    Nøkkelfunksjoner

    • Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
    • Intel® C741
    • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
    • 2 PCIe 5.0 x16 (LP) slot;Tool-less supportInternal PCIe 4.0 for 2 x4 M.2 NVMe support onboardOptional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
    • Network connectivity via AIOM (OCP 3.0 compliant)
    • Built-in SAS3 Support via Broadcom 3808; IT Mode6 hot-swap 2.5" drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
    • Liquid Cooling Support4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating
    • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

    Viktige bruksområder

    • Container-as-a-Service; Application Accelerator
    • Diskless HPC Clusters
    • All-Flash Hyperconverged Infrastructure

    Beskrivelse

    The Supermicro SYS-221BT-HNC8R is engineered with cutting-edge technology, supporting dual Socket E (LGA 4677) for 5th/4th Gen Intel® Xeon® Scalable processors. It boasts a powerful Intel® C741 chipset, 16 DIMM slots with up to 4TB DDR5 memory, and versatile network connectivity via AIOM (OCP 3.0 compliant). The server offers 2 PCIe 5.0 x16 slots, internal PCIe 4.0 for 2 x4 NVMe M.2 support, and optional NVMe Boot Controller. Its chassis supports liquid cooling and houses 6 hot-swap 2.5" drive bays. The power supply is robust with 3000W redundant Titanium Level efficiency. This system is RoHS compliant and includes a comprehensive management suite for seamless operations.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-221BT-HNC8R
    Motherboard
    Installed Motherboard
    • Super X13DET-B
    Processor (per Node)
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
    Core Count
    • Up to 64C/128T; Up to 320MB Cache per CPU
    Note
    • Supports up to 205W TDP CPUs (Air Cooled)*
    • Supports up to 350W TDP CPUs (Liquid Cooled)​
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    On-Board Devices (per Node)
    SAS
    • SAS (12Gbps) via Broadcom® 3808; (IT mode)
    Chipset
    • Intel® C741
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Gen2 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 8+4 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BQ2-R3K04P
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 28.75" (730 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 96.6 lbs (43.8 kg)
    • Net Weight: 66.1 lbs (30 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 LP slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays
    • 4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bays

    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 16K RPM Counter Rotating 8cm Fan(s)
    Liquid Cooling
    • Direct to Chip (D2C) Cold Plate (optional)
    Power Supply
    2x 3000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 1400W: 100-127Vac / 50-60Hz
    • 2880W: 200-207Vac / 50-60Hz
    • 3000W: 208-240Vac / 50-60Hz
    • 3000W: 240-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 116A / Min: 0A (100Vac-127Vac)
    • Max: 240A / Min: 0A (200Vac-207Vac)
    • Max: 250A / Min: 0A (208Vac-240Vac)
    • Max: 250A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)

    12V SB:
    • Max: 4.5A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Environmental / Recycling
    Recycle
    • Return Server-End of Life Product

    Valgfrie Opsjoner

    Part Number Quantity Description
    2.5" Tool-less NVMe Tray
    MCP-220-00167-0B-Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
    2.5" Tool-less SAS/SATA Tray
    MCP-220-00147-0B-Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
    Cold Plate Module
    SNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    SNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution Manifolds
    SRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    SRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    LCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution Unit
    LCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    SRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    HDD Dummy Tray
    MCP-220-00185-0N-2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
    M.2 NVMe RAID Controller
    SCC-A2NM2241G3-B112x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x80mm M.2 (Qty per Node)
    SPI Capable TPM Options
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
