MBD-X13DET-B,CSE-217BQ2-R3K04P,SCC-P6N6SGH-B1,SCC-B8SB80

SYS-221BT-HNC8R

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10304/image_1920?unique=ad6cd20

kr 117,661.60 117661.6 NOK kr 117,661.60

kr 117,661.60

Not Available For Sale

    This combination does not exist.

    Summary Description

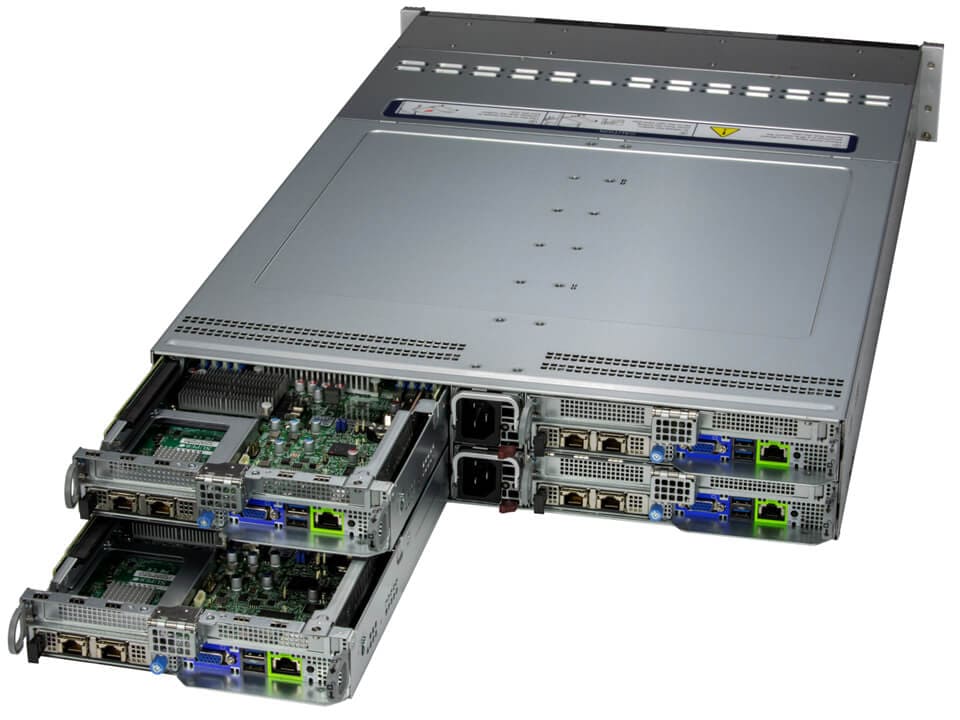

    The Supermicro SYS-221BT-HNC8R is a high-performance 2U rackmount server featuring dual Socket E support for 5th/4th Gen Intel® Xeon® Scalable processors, up to 4TB of DDR5 memory, and advanced cooling options. Ideal for HPC, hyperconverged infrastructure, and container-as-a-service applications.

    Key Features

    • Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
    • Intel® C741
    • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
    • 2 PCIe 5.0 x16 (LP) slot;Tool-less supportInternal PCIe 4.0 for 2 x4 M.2 NVMe support onboardOptional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
    • Network connectivity via AIOM (OCP 3.0 compliant)
    • Built-in SAS3 Support via Broadcom 3808; IT Mode6 hot-swap 2.5" drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
    • Liquid Cooling Support4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating
    • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

    Key Applications

    • Container-as-a-Service; Application Accelerator
    • Diskless HPC Clusters
    • All-Flash Hyperconverged Infrastructure

    Description

    The Supermicro SYS-221BT-HNC8R is engineered with cutting-edge technology, supporting dual Socket E (LGA 4677) for 5th/4th Gen Intel® Xeon® Scalable processors. It boasts a powerful Intel® C741 chipset, 16 DIMM slots with up to 4TB DDR5 memory, and versatile network connectivity via AIOM (OCP 3.0 compliant). The server offers 2 PCIe 5.0 x16 slots, internal PCIe 4.0 for 2 x4 NVMe M.2 support, and optional NVMe Boot Controller. Its chassis supports liquid cooling and houses 6 hot-swap 2.5" drive bays. The power supply is robust with 3000W redundant Titanium Level efficiency. This system is RoHS compliant and includes a comprehensive management suite for seamless operations.

    Product Specifications

    Product SKUs
    SuperServerSYS-221BT-HNC8R
    Motherboard
    Super X13DET-B
    Processor (per Node)
    CPUDual Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
    Core CountUp to 64C/128T; Up to 320MB Cache per CPU
    NoteSupports up to 205W TDP CPUs (Air Cooled)*
    Supports up to 350W TDP CPUs (Liquid Cooled)​
    *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    MemorySlot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    On-Board Devices (per Node)
    SASSAS (12Gbps) via Broadcom® 3808; (IT mode)
    ChipsetIntel® C741
    Network ConnectivityVia AIOM
    View AIOM Options
    View AOC Options
    Input / Output (per Node)
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB2 USB 3.0 Gen2 Type-A port(s) (Rear)
    Video1 VGA port(s)
    System BIOS
    BIOS TypeAMI 32MB Flash ROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    8+4 Phase-switching voltage regulator
    Chassis
    Form Factor2U Rackmount
    ModelCSE-217BQ2-R3K04P
    Dimensions and Weight
    Height3.47" (88 mm)
    Width17.68" (449 mm)
    Depth28.75" (730 mm)
    Package9.76" (H) x 24.65" (W) x 45.28" (D)
    WeightGross Weight: 96.6 lbs (43.8 kg)
    Net Weight: 66.1 lbs (30 kg)
    Available ColorBlack front & silver body
    Front Panel
    LEDHDD activity LED
    Network activity LEDs
    Power status LED
    Universal Information (UID) LED
    ButtonsPower On/Off button
    UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 5.0 x16 LP slot(s)
    View AOC Options
    Drive Bays / Storage (per Node)
    Drive Bays ConfigurationDefault: Total 6 bay(s)2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bay(s)4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bay(s)
    View Drive Options
    M.22 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 22110(default); VROC required for RAID)
    View M.2 Options
    System Cooling
    Fans4x 16K RPM Counter Rotating 8cm Fan(s)
    Liquid CoolingDirect to Chip (D2C) Cold Plate (optional)
    Power Supply
    2x 3000W2x 3000W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)45 x 40 x 480 mmAC Input1400W: 100-127Vac / 50-60Hz2880W: 200-207Vac / 50-60Hz3000W: 208-240Vac / 50-60Hz3000W: 240-240Vdc / 50-60Hz (for CQC only)+12VMax: 116A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207Vac)Max: 250A / Min: 0A (208Vac-240Vac)Max: 250A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)12V SBMax: 4.5A / Min: 0AOutput TypeBackplanes (connector)
    2x 3000W2x 3000W Redundant (1 + 1) Titanium Level (96%) power suppliesDimension (WxHxL)45 x 40 x 480 mmAC Input1400W: 100-127Vac / 50-60Hz2880W: 200-207Vac / 50-60Hz3000W: 208-240Vac / 50-60Hz3000W: 240-240Vdc / 50-60Hz (for CQC only)+12VMax: 116A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207Vac)Max: 250A / Min: 0A (208Vac-240Vac)Max: 250A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only)12V SBMax: 4.5A / Min: 0AOutput TypeBackplanes (connector)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Environmental / Recycling
    RecycleReturn Server-End of Life Product

    Optional Part List

    2.5" Tool-less NVMe Tray
    Part NumberQuantityDescription
    MCP-220-00167-0B•-Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
    2.5" Tool-less SAS/SATA Tray
    Part NumberQuantityDescription
    MCP-220-00147-0B•-Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
    Cold Plate Module
    Part NumberQuantityDescription
    SNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    SNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution Manifolds
    Part NumberQuantityDescription
    SRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    SRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    LCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution Unit
    Part NumberQuantityDescription
    SRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    LCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    HDD Dummy Tray
    Part NumberQuantityDescription
    MCP-220-00185-0N-2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
    M.2 NVMe RAID Controller
    Part NumberQuantityDescription
    SCC-A2NM2241G3-B112x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x80mm M.2 (Qty per Node)
    SPI Capable TPM Options
    Part NumberQuantityDescription
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    SuperCloud Composer License
    Part NumberQuantityDescription
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    Part NumberQuantityDescription
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    Part NumberQuantityDescription
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
    P4X-ODL.VROCBT-XMCC1Intel VROC Boot, On Demand Software License, RAID 1 (EMR Only) (Qty per Node)
    P4X-ODL.VROCPR-XMCC1Intel VROC Premium, On Demand Software License, RAID 0,1,5,10 (EMR Only) (Qty per Node)
    P4X-ODL.VROCST-XMCC1Intel VROC Standard, On Demand Software License, RAID 0,1,10 (EMR Only) (Qty per Node)
