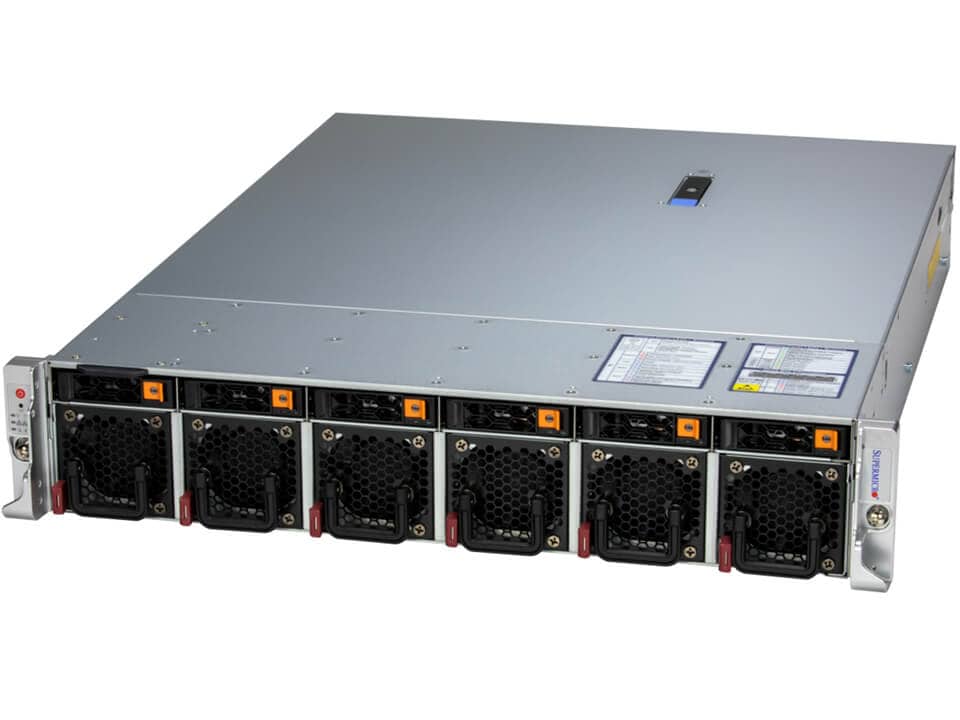

Rear I/O, MBD-X13DEM, CSE-HE211, PWS-2K08A-1R

Rear I/O, MBD-X13DEM, CSE-HE211, PWS-2K08A-1R

SKU:

SYS-221HE-TNR

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1 drive). *NIC adapter requirement includes either 1 AIOM networking card or 1 standard PCIe NIC adapter.*For only 1 CPU installed customer request, please contact PM.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 36 836,80 36836.8 NOK kr 36 836,80 Ekskl. mva

kr 36 836,80 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro SYS-221HE-TNR delivers exceptional performance with dual 5th/4th Gen Intel Xeon processors, top-notch memory capacity of up to 8TB DDR5, and extensive PCIe expansion capabilities. It offers flexible networking and storage options to meet diverse application needs, and advanced management tools for seamless operation.

Nøkkelfunksjoner

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
Configurable PCIe slot options up to 8 PCIe 5.0 x8 (6 FHFL+ 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL)
Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6 heavy duty hot-swap fans with optimal fan speed control
Redundant 2000W Titanium level AC power supplies

Viktige bruksområder

5G Core and Edge
Telecom Micro Data Center
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing

Beskrivelse

The Supermicro SYS-221HE-TNR is a versatile 2U rackmount server designed for high-performance and flexibility. It supports dual Socket E (LGA-4677) 5th/4th Gen Intel Xeon Scalable processors, providing up to 60 cores per CPU. The system can accommodate up to 8TB of memory using 32 DIMM slots with support for RDIMMs up to DDR5-5600. It offers configurable PCIe slots for various networking and storage needs, including up to 6x 2.5" hot-swap drive bays supporting NVMe/SATA drives. The server features robust cooling with 6 hot-swap fans and redundant 2000W Titanium level power supplies for reliable operation. Comprehensive management tools like SuperCloud Composer, Supermicro Server Manager, and SuperDoctor 5 ensure efficient administration and monitoring. The server is ideal for demanding applications such as 5G core and edge, AI inference, network function virtualization, and cloud computing.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-221HE-TNR
Motherboard
Installed Motherboard	Super X13DEM
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 3 double-width or 3 single-width GPUs
Supported GPU	NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, A2
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
System Memory
Memory	Slot Count: 32 DIMM slots/16 Channels Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset	Intel® C741
Network Connectivity	2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) 2 QSFP28 100GbE (optional) 4 SFP+ 10GbE with Intel® X710-BM2 (optional) 2 QSFP56 200GbE (optional) 2 QSFP56 100GbE (optional) 2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional) 4 RJ45 10GbE with Intel® X550 (optional)
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 2.0 port(s) (front)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 256MB SPI Flash
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSE-HE211-R000NFP
Dimensions and Weight
Height	3.5" (88.9 mm)
Width	17.2" (436.88 mm)
Depth	22.6" (574 mm)
Package	9.7" (H) x 23.5" (W) x 36.9" (D)
Weight	Gross Weight: 47.4 lbs (21.5 kg) Net Weight: 34.4 lbs (15.6 kg)
Available Color	Silver
Front Panel
LED	HDD activity LED LAN1 activity LAN2 activity Power Fail Power status LED System information
Buttons	Power On/Off UID button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 3 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option A: 6 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B: 3 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bays: 6 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110)
System Cooling
Fans	6 Counter-rotating, Hot-swappable 6cm Fan(s)
Power Supply
2x 2000W Redundant Titanium Level (96%) power supplies	Dimension (WxHxL): 73.5 x 40 x 203 mm +12V: Max: 83A / Min: 0A (100Vac-127Vac) Max: 166A / Min: 0A (200Vac-240Vac) Certification: Titanium Level
Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Valgfrie Opsjoner

Part Number	Quantity	Description
Cable
CBL-PWEX-0962Y-20	0	12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 1/5 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
CBL-PWEX-0962Y-30	0	12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 3 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
CBL-PWEX-1148-30	0	CPU 8-pin connector to 2x4 MicroHi power cable for PCIe slot 1/3/5 (A40, A100)
CBL-PWEX-1040	0	Cable to convert CPU 8-pin to 2 PCI 2x3 + 2x1
