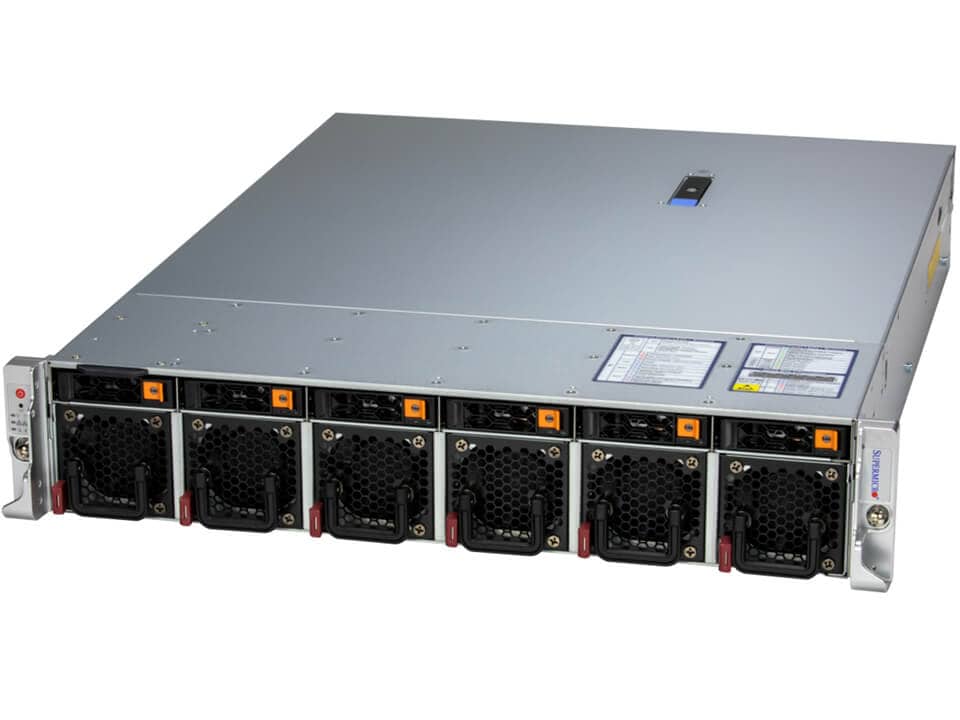

Rear I/O, MBD-X13DEM, CSE-HE211, PWS-2K08A-1R

SYS-221HE-TNR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1 drive). *NIC adapter requirement includes either 1 AIOM networking card or 1 standard PCIe NIC adapter.*For only 1 CPU installed customer request, please contact PM.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10298/image_1920?unique=1caa98b

kr 39,141.32 39141.32 NOK kr 39,141.32

kr 39,141.32

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-221HE-TNR delivers exceptional performance with dual 5th/4th Gen Intel Xeon processors, top-notch memory capacity of up to 8TB DDR5, and extensive PCIe expansion capabilities. It offers flexible networking and storage options to meet diverse application needs, and advanced management tools for seamless operation.

    Key Features

    • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
    • Configurable PCIe slot options up to 8 PCIe 5.0 x8 (6 FHFL+ 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL)
    • Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
    • Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
    • 6 heavy duty hot-swap fans with optimal fan speed control
    • Redundant 2000W Titanium level AC power supplies

    Key Applications

    • 5G Core and Edge
    • Telecom Micro Data Center
    • AI Inference and Machine Learning
    • Network Function Virtualization
    • Cloud Computing

    Description

    The Supermicro SYS-221HE-TNR is a versatile 2U rackmount server designed for high-performance and flexibility. It supports dual Socket E (LGA-4677) 5th/4th Gen Intel Xeon Scalable processors, providing up to 60 cores per CPU. The system can accommodate up to 8TB of memory using 32 DIMM slots with support for RDIMMs up to DDR5-5600. It offers configurable PCIe slots for various networking and storage needs, including up to 6x 2.5" hot-swap drive bays supporting NVMe/SATA drives. The server features robust cooling with 6 hot-swap fans and redundant 2000W Titanium level power supplies for reliable operation. Comprehensive management tools like SuperCloud Composer, Supermicro Server Manager, and SuperDoctor 5 ensure efficient administration and monitoring. The server is ideal for demanding applications such as 5G core and edge, AI inference, network function virtualization, and cloud computing.

    Product Specifications

    Product SKUs
    SuperServerSYS-221HE-TNR
    Motherboard
    Super X13DEM
    Processor
    CPUDual Socket E (LGA-4677)
    5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
    Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
    Core CountUp to 60C/120T; Up to 112.5MB Cache per CPU
    NoteSupports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 3 double-width or 3 single-width GPU(s)
    Supported GPUNVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, A2
    View GPU Options
    CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU InterconnectPCIe
    System Memory
    MemorySlot Count: 32 DIMM slots/16 Channels
    Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    NVMeNVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    View NVMe Options
    ChipsetIntel® C741
    Network Connectivity2 SFP28 25GbE with Broadcom® BCM57414 (optional)
    2 QSFP28 100GbE with Broadcom® BCM57508 (optional)
    2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
    2 QSFP28 100GbE (optional)
    4 SFP+ 10GbE with Intel® X710-BM2 (optional)
    2 QSFP56 200GbE (optional)
    2 QSFP56 100GbE (optional)
    2 RJ45 1GbE with Intel® I350-AM2 (optional)
    4 SFP+ 10GbE with Intel® X710-TM4 (optional)
    1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional)
    4 RJ45 10GbE with Intel® X550 (optional)
    View AIOM Options
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB2 USB 2.0 port(s) (front)
    Video1 VGA port(s)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring
    Status monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSE-HE211-R000NFP
    Dimensions and Weight
    Height3.5" (88.9 mm)
    Width17.2" (436.88 mm)
    Depth22.6" (574 mm)
    Package9.7" (H) x 23.5" (W) x 36.9" (D)
    WeightGross Weight: 47.4 lbs (21.5 kg)
    Net Weight: 34.4 lbs (15.6 kg)
    Available ColorSilver
    Front Panel
    LEDHDD activity LED
    LAN1 activity
    LAN2 activity
    Power Fail
    Power status LED
    System information
    ButtonsPower On/Off
    UID button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault3 PCIe 5.0 x16 FHFL slot(s)2 PCIe 5.0 x8 FHHL slot(s)2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    Option A6 PCIe 5.0 x8 FHFL slot(s)2 PCIe 5.0 x8 FHHL slot(s)2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    Option B3 PCIe 5.0 x16 FHFL slot(s)1 PCIe 5.0 x16 FHHL slot(s)2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 6 bay(s)6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    View NVMe Options
    View Drive Options
    M.22 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
    View M.2 Options
    System Cooling
    Fans6 Counter-rotating, Hot-swappable 6cm Fan(s)
    Power Supply
    2x 2000W2x 2000W Redundant Titanium Level (96%) power suppliesDimension (WxHxL)73.5 x 40 x 203 mm+12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 166A / Min: 0A (200Vac-240Vac)CertificationTitanium Level[Test Report]
    2x 2000W2x 2000W Redundant Titanium Level (96%) power suppliesDimension (WxHxL)73.5 x 40 x 203 mm+12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 166A / Min: 0A (200Vac-240Vac)CertificationTitanium Level[Test Report]
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Cable
    Part NumberQuantityDescription
    CBL-PWEX-0962Y-20012VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 1/5 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
    CBL-PWEX-0962Y-30012VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 3 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada)
    CBL-PWEX-1148-300CPU 8-pin connector to 2x4 MicroHi power cable for PCIe slot 1/3/5 (A40, A100)
    CBL-PWEX-1040•0Cable to convert CPU 8-pin to 2 PCI 2x3 + 2x1
