SuperWorkstation (X12STL-F, CSE-731i-404B)

SKU: SYS-530T-I
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10529/image_1920?unique=87ba323

kr 6 368,54 6368.54 NOK kr 6 368,54 Ekskl. mva

kr 6 368,54 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-530T-I is an entry-level system designed for small office/home office (SOHO) and small/medium-sized businesses (SMB). Powered by Intel Xeon E-2300 processors, it supports up to 128GB DDR4-3200 memory. Ideal for storage, application hosting, and centralized data backup.

    Nøkkelfunksjoner

    • Supports Intel® Xeon® E-2300 Series Processors
    • PCIe 4.0 Support
    • Dual LAN ports, GbE and dedicated IPMI LAN port
    • 9cm PWM quiet exhaust fan and optional front intake fan
    • 400W 80PLUS Gold Power Supply

    Viktige bruksområder

    • Entry-Level System for SOHO and SMB
    • Storage, application and centralized data backup system Applications
    • IPMI for remote management

    Beskrivelse

    The Supermicro SYS-530T-I delivers exceptional performance and expandability at an attractive cost-effective price. It supports the latest Intel® Xeon® E-2300 series processors and up to 128GB of DDR4-3200 memory. Featuring remote management capabilities with IPMI, this system is perfect for SOHO and SMB applications, including storage and centralized data backup. Supermicro systems are built and tested in the USA, ensuring high-quality standards.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-530T-I
    Motherboard
    Installed Motherboard
    • Super X12STL-F
    Processor
    CPU
    • Single Socket H5 (LGA-1200)
    • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T; Up to 16MB Cache
    Note
    • Supports up to 95W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C252
    Network Connectivity
    • 2 RJ45 1GbE with Intel® I210-AT
    Input / Output
    USB
    • 2 USB 2.0 Type-A port(s) (rear)
    Video
    • 1 VGA port(s)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Other Features
    • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
    Chassis
    Form Factor
    • mini-tower
    Model
    • CSE-731I-404B

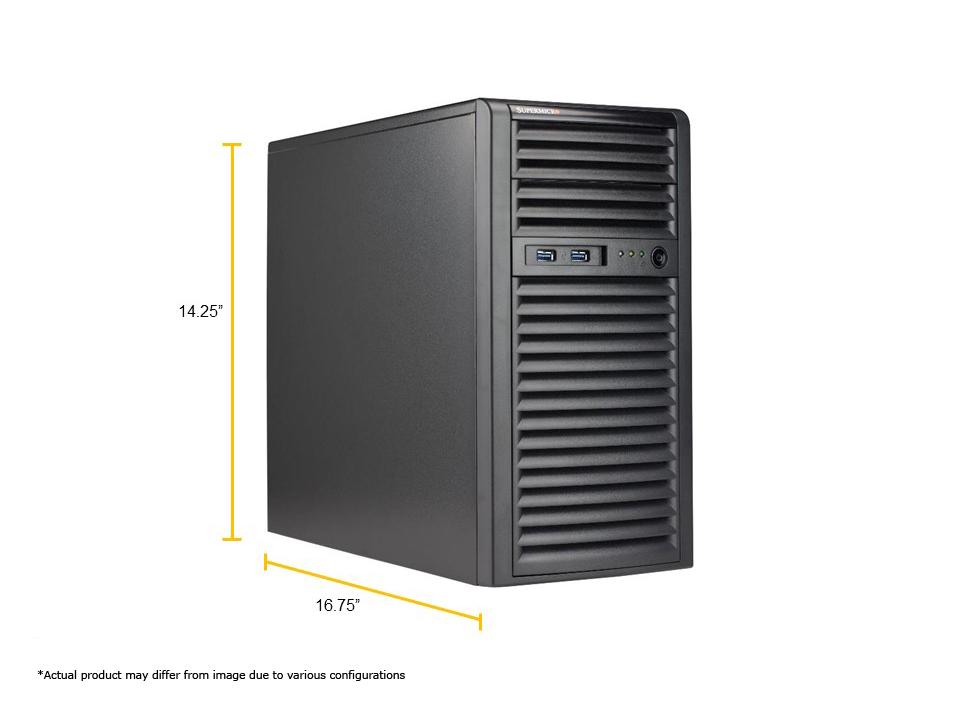

    Dimensions and Weight
    Height
    • 14.25" (362 mm)
    Width
    • 7.25" (184 mm)
    Depth
    • 16.75" (425 mm)
    Package
    • 20" (H) x 11" (W) x 21" (D)
    Weight
    • Gross Weight: 20 lbs (9.07 kg)
    • Net Weight: 16 lbs (7.26 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power LED
    • System Overheat LED
    Buttons
    • Power On/Off button
    Port
    • USB 3.0 Port(s)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 FHFL slot
    • 1 PCIe 3.0 x2 FHFL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 internal fixed 3.5" SATA drive bays

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 1x 90mm Fan(s)
    Power Supply
    1x 400W Gold Level (90%) power supply
    Dimension (WxHxL):
    • 150 x 86 x 140 mm

    AC Input:
    • 400W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 12.62A / Min: 0.05A (100Vac-240Vac)
    • Max: 12.62A / Min: 0A (100Vac-240Vac)

    5V SB:
    • Max: 2.23A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12STL-F1Super X12STL-F Motherboard
    CSE-731I-404B1mini-tower Chassis
    Cable
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-0084L116PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
    CBL-CUSB-1007120p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    MCP-110-00033-0N2Binding Head Screw (with teeth) #632*4.5L
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    *Power Supply
    PWS-404-PQ1PS2 400W Multi-output High Efficiency 80PLUS Gold Power
    *Fan
    FAN-0108L4192X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    *Drive Tray(s)
    MCP-220-73101-0B4SC731 Tool-less Internal 3.5inch HDD Tray

    Valgfrie Opsjoner

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW24-HBT1BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
    Fan
    FAN-0113L4180X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
    HDD Converter
    MCP-220-73102-0N12.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Heatsink
    SNK-P0051AP41High Performance CPU Heatsink
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
