SuperWorkstation (X12STL-F, CSE-731i-404B)

SYS-530T-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10529/image_1920?unique=dec9d2d

kr 6,793.81 6793.81 NOK kr 6,793.81

kr 6,793.81

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-530T-I is an entry-level system designed for small office/home office (SOHO) and small/medium-sized businesses (SMB). Powered by Intel Xeon E-2300 processors, it supports up to 128GB DDR4-3200 memory. Ideal for storage, application hosting, and centralized data backup.

    Key Features

    • Supports Intel® Xeon® E-2300 Series Processors
    • PCIe 4.0 Support
    • Dual LAN ports, GbE and dedicated IPMI LAN port
    • 9cm PWM quiet exhaust fan and optional front intake fan
    • 400W 80PLUS Gold Power Supply

    Key Applications

    • Entry-Level System for SOHO and SMB
    • Storage, application and centralized data backup system Applications
    • IPMI for remote management

    Description

    The Supermicro SYS-530T-I delivers exceptional performance and expandability at an attractive cost-effective price. It supports the latest Intel® Xeon® E-2300 series processors and up to 128GB of DDR4-3200 memory. Featuring remote management capabilities with IPMI, this system is perfect for SOHO and SMB applications, including storage and centralized data backup. Supermicro systems are built and tested in the USA, ensuring high-quality standards.

    Product Specifications

    Product SKUs
    SuperWorkstationSYS-530T-I
    Motherboard
    Super X12STL-F
    Processor
    CPUSingle Socket H5 (LGA-1200)
    Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
    Core CountUp to 8C/16T; Up to 16MB Cache
    NoteSupports up to 95W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 1 double-width GPU(s)
    System Memory
    MemorySlot Count: 4 DIMM slots
    Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps)
    ChipsetIntel® C252
    Network Connectivity2 RJ45 1GbE with Intel® I210-AT
    View AOC Options
    Input / Output
    USB2 USB 2.0 Type-A port(s) (rear)
    Video1 VGA port(s)
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI 6.0 Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    PC Health Monitoring
    Voltage+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Other Features8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
    Chassis
    Form Factormini-tower
    ModelCSE-731I-404B

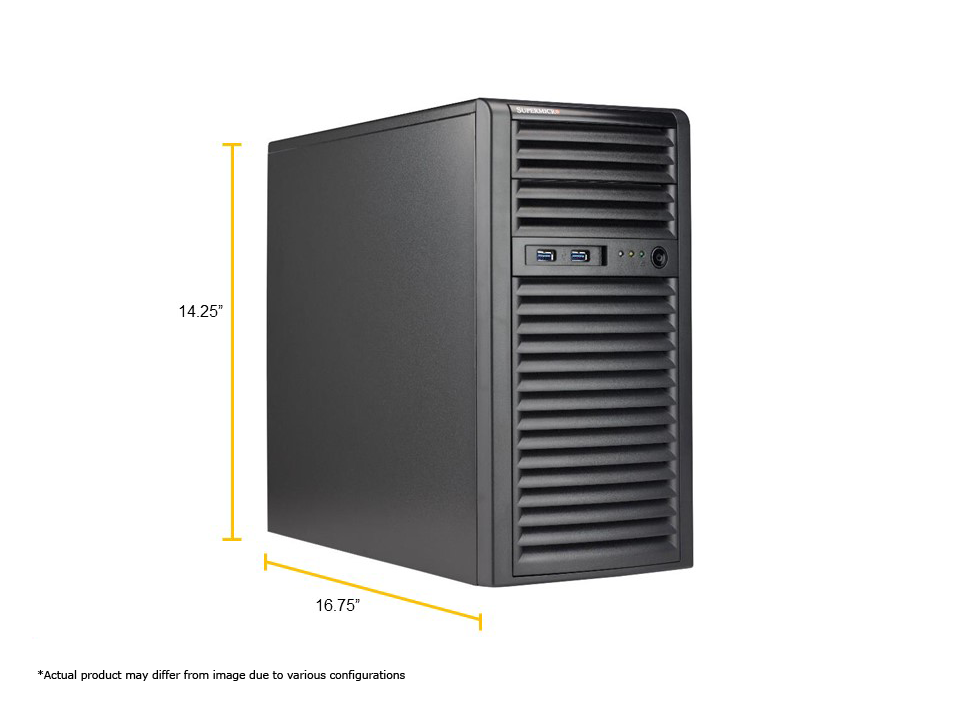

    Dimensions and Weight
    Height14.25" (362 mm)
    Width7.25" (184 mm)
    Depth16.75" (425 mm)
    Package20" (H) x 11" (W) x 21" (D)
    WeightGross Weight: 20 lbs (9.07 kg)
    Net Weight: 16 lbs (7.26 kg)
    Available ColorBlack
    Front Panel
    LEDHDD activity LED
    Network activity LEDs
    Power LED
    System Overheat LED
    ButtonsPower On/Off button
    PortUSB 3.0 Port(s)
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x8 FHFL slot(s)1 PCIe 4.0 x4 FHFL slot(s)1 PCIe 3.0 x2 FHFL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 4 bay(s)4 internal fixed 3.5" SATA drive bay(s)
    View Drive Options
    M.21 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
    View M.2 Options
    Peripheral Bays2 5.25" bay(s)
    System Cooling
    Fans1x 90mm Fan(s)
    Power Supply
    1x 400W1x 400W Gold Level (90%) power supplyDimension (WxHxL)150 x 86 x 140 mmAC Input400W: 100-240Vac / 50-60Hz+12VMax: 12.62A / Min: 0.05A (100Vac-240Vac)Max: 12.62A / Min: 0A (100Vac-240Vac)5V SBMax: 2.23A / Min: 0AOutput Type24pin ATXCertificationGold Level[Test Report]
    1x 400W1x 400W Gold Level (90%) power supplyDimension (WxHxL)150 x 86 x 140 mmAC Input400W: 100-240Vac / 50-60Hz+12VMax: 12.62A / Min: 0.05A (100Vac-240Vac)Max: 12.62A / Min: 0A (100Vac-240Vac)5V SBMax: 2.23A / Min: 0AOutput Type24pin ATXCertificationGold Level[Test Report]
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12STL-F1Super X12STL-F Motherboard
    CSE-731I-404B1mini-tower Chassis
    Cable
    Part NumberQuantityDescription
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-0084L116PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
    CBL-CUSB-1007120p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
    Parts
    Part NumberQuantityDescription
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    MCP-110-00033-0N2Binding Head Screw (with teeth) #632*4.5L
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    *Power Supply
    Part NumberQuantityDescription
    PWS-404-PQ1PS2 400W Multi-output High Efficiency 80PLUS Gold Power
    *Fan
    Part NumberQuantityDescription
    FAN-0108L4192X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    *Drive Tray(s)
    Part NumberQuantityDescription
    MCP-220-73101-0B4SC731 Tool-less Internal 3.5inch HDD Tray

    Optional Part List

    DVD Kit
    Part NumberQuantityDescription
    CBL-SAST-0624•170cm SATA Cable S-S 30AWG
    CBL-0082L•1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW24-HBT1BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
    Fan
    Part NumberQuantityDescription
    FAN-0113L4180X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
    HDD Converter
    Part NumberQuantityDescription
    MCP-220-73102-0N•12.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Heatsink
    Part NumberQuantityDescription
    SNK-P0051AP4•1High Performance CPU Heatsink
    Mobile Rack
    Part NumberQuantityDescription
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
