  2. SuperWorkstation (X13SWA-TF, CSE-GS7A-2000B)

SuperWorkstation (X13SWA-TF, CSE-GS7A-2000B)

SKU: SYS-551A-T
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/8934/image_1920?unique=cbd09e3

kr 19 811,30 19811.3 NOK kr 19 811,30 Ekskl. mva

kr 19 811,30 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-551A-T is designed for high-performance computing, optimally engineered for product design and engineering simulations. It features a robust system equipped with Intel Xeon W-3400 processors, 16 DIMMs, and up to 4 M.2 NVMe slots.

    Nøkkelfunksjoner

    • 2000W Power Supplies Platinum Level (92%)
    • 1x 1GbBaseT, 1x 10GbBaseT
    • 2 2.5" SATA3 drive bays; 4 3.5" SATA3 drive bays; 4 M.2 NVMe
    • 16 DIMMs
    • Intel W790 chipset
    • Socket E (LGA4677) support Intel Xeon W-3400 processors
    • 1 120 mm Fan(s); 2 120 mm Fan(s)

    Viktige bruksområder

    • Product Design and Engineering Simulation

    Beskrivelse

    The Supermicro SYS-551A-T is a high-performance computing system tailored specifically for tasks in product design and engineering simulations. This 5U full tower rackmount workstation supports Intel Xeon W-3400 processors with a robust cooling system, up to 2TB memory, and extensive connectivity options. It also offers exceptional expansion capabilities with up to 4 double-width GPUs and multiple drive bays for flexible storage solutions. Advanced management software and security features ensure reliable and secure operations.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-551A-T
    Motherboard
    Installed Motherboard
    • Super X13SWA-TF
    Processor
    CPU
    • Single Socket E (LGA-4677)
    • Intel® Xeon® W-3400 processors
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 2 quad-width or 2 triple-width or 4 double-width or 4 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation, RTX 4090, RTX 4080
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® W790
    Network Connectivity
    • 1 RJ45 10GbE with Marvell® AQC113
    • 1 RJ45 1GbE with Intel® I210-AT

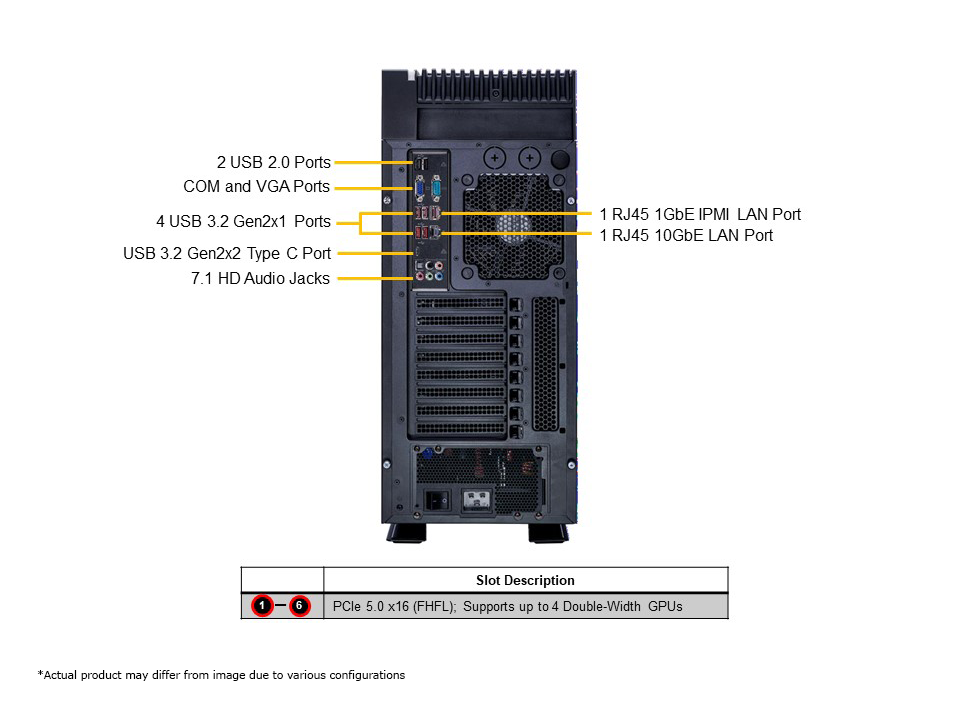

    Input / Output
    USB
    • 2 USB 2.0 port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (front)
    • 2 Type-A port(s) (Front)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
    Chassis
    Form Factor
    • 5U (Full Tower) Rackmount
    Model
    • CSE-GS7A-2000B
    Dimensions and Weight
    Height
    • 21.06" (535 mm)
    Width
    • 8.74" (222 mm)
    Depth
    • 22.56" (573 mm)
    Package
    • 27.8" (H) x 14.6" (W) x 28.5" (D)
    Weight
    • Gross Weight: 39 lbs (17.74 kg)
    • Net Weight: 20 lbs (14.9 kg)
    Available Color
    • Black
    Front Panel
    Port
    • Audio Jacks
    • USB 2.0
    • USB 3.0 Gen 1-Type-A
    • USB 3.0 Gen 1-Type-c
    Buttons
    • LED light bar ON/OFF
    • Power On/Off button
    LED
    • Power status LED
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 6 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 internal fixed 3.5" SATA drive bays

    M.2
    • 4 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 1x 120mm Fan(s)
    • 2x 120mm Fan(s)
    Power Supply
    1x 2000W Platinum Level (92%) power supply
    Dimension (WxHxL):
    • 150 x 86 x 200 mm

    AC Input:
    • 1200W: 100-115Vac / 50-60Hz
    • 1500W: 115-200Vac / 50-60Hz
    • 2000W: 200-264Vac / 50-60Hz

    +12V:
    • Max: 100A / Min: 0.1A (100Vac-115Vac)
    • Max: 125A / Min: 0.1A (115Vac-120Vac)
    • Max: 166.6A / Min: 0.1A (200Vac-264Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SWA-TF1Super X13SWA-TF Motherboard
    CSE-GS7A-2000B15U (Full Tower) Chassis
    Cable
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-09251PWCD,US,NEMA 5-15P TO IEC60320 C19, 6FT, 14AWG, 15A/125V
    Parts
    MCP-260-00182-0B1STD I/O Shield for X13SWA-TF with EMI Gasket & Black Mylar
    Power Supply
    PWS-2K01-PQ1PS2 2000W Multi-output PLATINUM power supply,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-C0156L4M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
    *Fan
    FAN-0221L42120x120x25 mm, 2.2K RPM, Cooling Fan for GS7 Project,RoHS
    FAN-0222L41120x120x25 mm, 6.4K RPM, Optional Fan for GS7 Project

    Valgfrie Opsjoner

    Part Number Quantity Description
    Air Shroud
    MCP-310-GS701-BB1Air Shroud to use with SNK-P3046A4
    Fan
    FAN-0124L41Optional top exhaust 12cm (1850 RPM) cooling Fan
    FAN-0221L41Optional top exhaust 12cm (2200 RPM) cooling Fan
    FAN-0222L41Optional top exhaust 12cm (6400 RPM) cooling Fan
    Heatsink
    SNK-P0091AP414U Active High-Performance CPU Heat Sink
    SNK-P3046A41Closed-Loop High-Performance Liquid Cooling Module
    Rail
    MCP-290-GS706-0N1GS7 6U Rail Conversion Kit for rack mount (need to add MCP-290-00057-0N).
    MCP-290-00057-0N1RAIL SET, QUICK/QUICK For 17.2"W
