SuperWorkstation (X13SWA-TF, CSE-GS7A-2000B)

SYS-551A-T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8934/image_1920?unique=7c1c8fe

kr 21,346.00 21346.0 NOK kr 21,346.00

kr 21,346.00

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-551A-T is designed for high-performance computing, optimally engineered for product design and engineering simulations. It features a robust system equipped with Intel Xeon W-3400 processors, 16 DIMMs, and up to 4 M.2 NVMe slots.

    Key Features

    • Socket E (LGA4677) support Intel® Xeon® W-3400 processors
    • Intel® W790
    • 16 DIMMs
    • 1x 1GbBaseT, 1x 10GbBaseT
    • 2 2.5" SATA3 drive bays; 4 3.5" SATA3 drive bays; ; 4 M.2 NVMe
    • 1 120 mm Fan(s) ; 2 120 mm Fan(s)
    • 2000W Power Supplies Platinum Level (%+)

    Key Applications

    • Product Design and Engineering Simulation

    Description

    The Supermicro SYS-551A-T is a high-performance computing system tailored specifically for tasks in product design and engineering simulations. This 5U full tower rackmount workstation supports Intel Xeon W-3400 processors with a robust cooling system, up to 2TB memory, and extensive connectivity options. It also offers exceptional expansion capabilities with up to 4 double-width GPUs and multiple drive bays for flexible storage solutions. Advanced management software and security features ensure reliable and secure operations.

    Product Specifications

    Product SKUs
    SuperWorkstationSYS-551A-T
    Motherboard
    Super X13SWA-TF
    Processor
    CPUSingle Socket E (LGA-4677)
    Intel® Xeon® W-3400 processors
    NoteSupports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 2 quad-width or 2 triple-width or 4 double-width or 4 single-width GPU(s)
    Supported GPUNVIDIA PCIe: T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation, RTX 4090, RTX 4080
    View GPU Options
    System Memory
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    SATASATA (6Gbps)
    ChipsetIntel® W790
    Network Connectivity1 RJ45 10GbE with Marvell® AQC113
    1 RJ45 1GbE with Intel® I210-AT
    View AOC Options

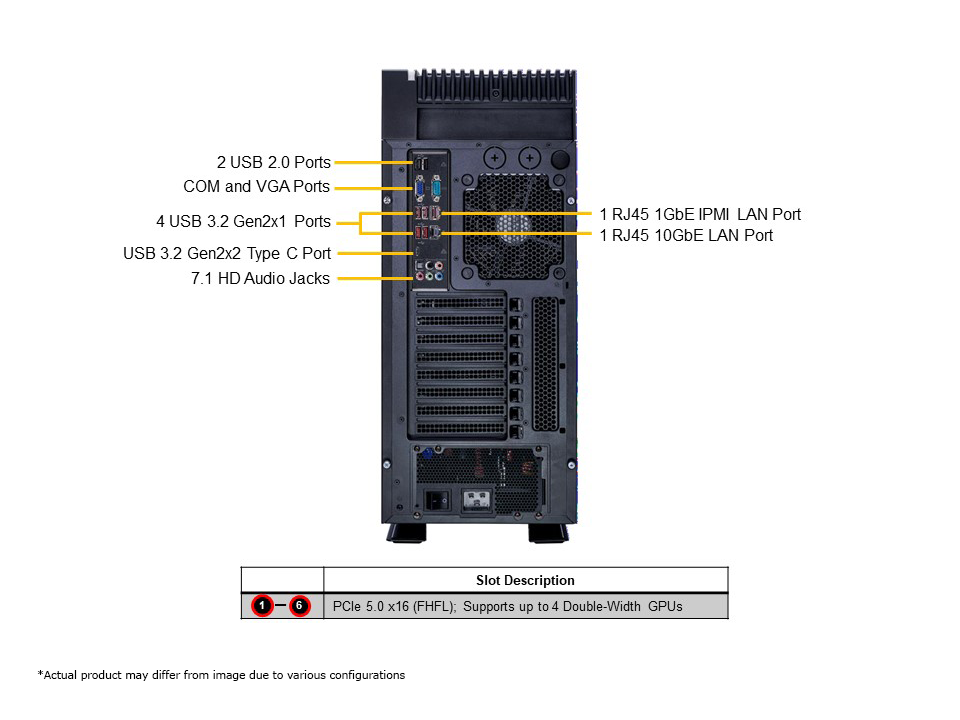

    Input / Output
    USB2 USB 2.0 port(s) (rear)
    2 USB 2.0 Type-A port(s) (front)
    2 Type-A port(s) (Front)
    Video1 VGA port(s)
    System BIOS
    BIOS TypeAMI 256MB SPI Flash
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI 6.0 Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesSupply Chain Security: Remote Attestation
    Runtime BMC Protections
    PC Health Monitoring
    Voltage+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
    Chassis
    Form Factor5U (Full Tower) Rackmount
    ModelCSE-GS7A-2000B
    Dimensions and Weight
    Height21.06" (535 mm)
    Width8.74" (222 mm)
    Depth22.56" (573 mm)
    Package27.8" (H) x 14.6" (W) x 28.5" (D)
    WeightGross Weight: 39 lbs (17.74 kg)
    Net Weight: 20 lbs (14.9 kg)
    Available ColorBlack
    Front Panel
    PortAudio Jacks
    USB 2.0
    USB 3.0 Gen 1-Type-A
    USB 3.0 Gen 1-Type-c
    ButtonsLED light bar ON/OFF
    Power On/Off button
    LEDPower status LED
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault6 PCIe 5.0 x16 FHFL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 4 bay(s)4 internal fixed 3.5" SATA drive bay(s)
    View Drive Options
    M.24 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110)
    View M.2 Options
    Peripheral Bays2 5.25" bay(s)
    System Cooling
    Fans1x 120mm Fan(s)
    2x 120mm Fan(s)
    Power Supply
    1x 2000W1x 2000W Platinum Level (92%) power supplyDimension (WxHxL)150 x 86 x 200 mmAC Input1200W: 100-115Vac / 50-60Hz1500W: 115-200Vac / 50-60Hz2000W: 200-264Vac / 50-60Hz+12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (200Vac-264Vac)5V SBMax: 4A / Min: 0AOutput Type24pin ATXCertificationPlatinum Level[Test Report]
    1x 2000W1x 2000W Platinum Level (92%) power supplyDimension (WxHxL)150 x 86 x 200 mmAC Input1200W: 100-115Vac / 50-60Hz1500W: 115-200Vac / 50-60Hz2000W: 200-264Vac / 50-60Hz+12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (200Vac-264Vac)5V SBMax: 4A / Min: 0AOutput Type24pin ATXCertificationPlatinum Level[Test Report]
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SWA-TF1Super X13SWA-TF Motherboard
    CSE-GS7A-2000B15U (Full Tower) Chassis
    Cable
    Part NumberQuantityDescription
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-09251PWCD,US,NEMA 5-15P TO IEC60320 C19, 6FT, 14AWG, 15A/125V
    Parts
    Part NumberQuantityDescription
    MCP-260-00182-0B1STD I/O Shield for X13SWA-TF with EMI Gasket & Black Mylar
    Power Supply
    Part NumberQuantityDescription
    PWS-2K01-PQ1PS2 2000W Multi-output PLATINUM power supply,RoHS
    Software
    Part NumberQuantityDescription
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-C0156L4M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
    *Fan
    Part NumberQuantityDescription
    FAN-0221L42120x120x25 mm, 2.2K RPM, Cooling Fan for GS7 Project,RoHS
    FAN-0222L41120x120x25 mm, 6.4K RPM, Optional Fan for GS7 Project

    Optional Part List

    Air Shroud
    Part NumberQuantityDescription
    MCP-310-GS701-BB1Air Shroud to use with SNK-P3046A4
    Fan
    Part NumberQuantityDescription
    FAN-0124L4•1Optional top exhaust 12cm (1850 RPM) cooling Fan
    FAN-0221L41Optional top exhaust 12cm (2200 RPM) cooling Fan
    FAN-0222L41Optional top exhaust 12cm (6400 RPM) cooling Fan
    Heatsink
    Part NumberQuantityDescription
    SNK-P0091AP414U Active High-Performance CPU Heat Sink
    SNK-P3046A41Closed-Loop High-Performance Liquid Cooling Module
    Rail
    Part NumberQuantityDescription
    MCP-290-GS706-0N•1GS7 6U Rail Conversion Kit for rack mount (need to add MCP-290-00057-0N).
    MCP-290-00057-0N•1RAIL SET, QUICK/QUICK For 17.2"W
