WIO System: X11DDW-L ; CSE-815TQC-600WB,HF,RoHS
SYS-6019P-WT
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-6019P-WT 1U Rackmount Server offers powerful performance with dual 2nd Gen Intel® Xeon® Scalable processors and up to 3TB 3DS ECC DDR4-2933MHz memory support, ideal for various intensive applications.
Key Features
- Web Server, Firewall Apps. Corporate-Wins, DNS, Print, Login Gateway, provisioning servers Compact Network Appliance Cloud Computing
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
- 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
- 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot

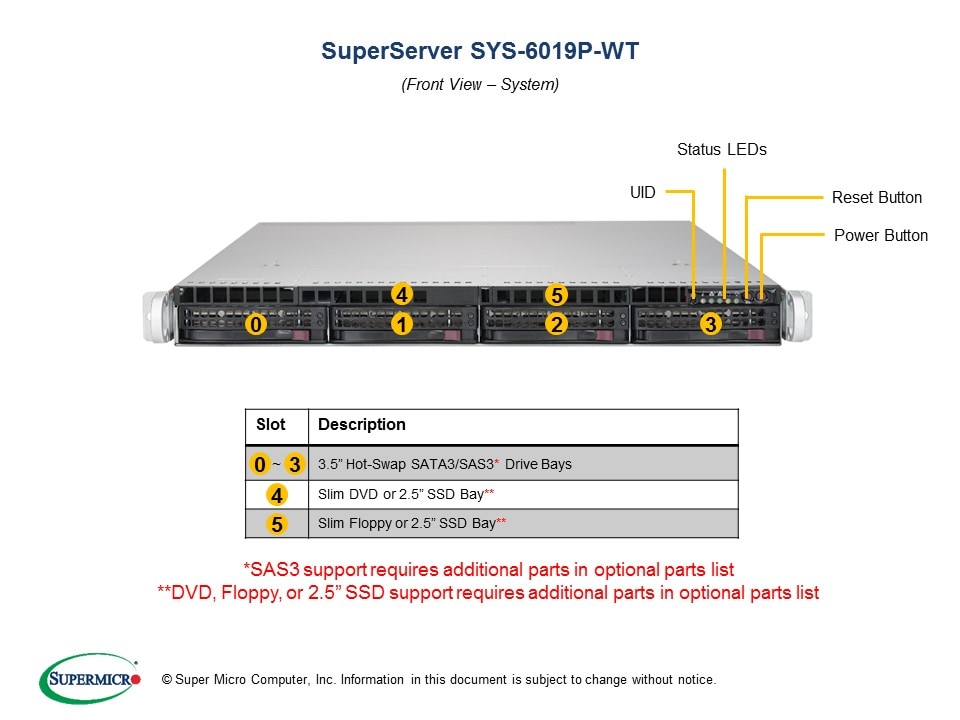

- 4 Hot-swap 3.5" SAS3/SATA3 drive bays with SES2
- Optional 1 slim DVD-ROM drive
- 2 1GbE LAN ports via Intel C621
- 1 VGA, 4 USB 3.0 (rear)
- 600W Multi Output Power Supply, Platinum Level High-efficiency
Key Applications
- Web Server
- Firewall Apps
- Corporate-Wins, DNS, Print, Login
- Gateway, provisioning servers
Description
The Supermicro SYS-6019P-WT is a robust 1U Rackmount Server featuring dual 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) with support for up to 3TB 3DS ECC DDR4-2933MHz memory. The server is equipped with 4 hot-swap 3.5" SAS3/SATA3 drive bays with SES2, optional slim DVD-ROM drive, and multiple PCI-E slots for add-on modules and NVMe M.2 storage. Network connectivity features include 2 1GbE LAN ports via Intel C621. It also has comprehensive I/O options, including 1 VGA port, 4 USB 3.0 ports, and a 600W multi-output power supply with high-efficiency platinum-level certification. The system is designed to deliver high performance for applications in web servers, firewall apps, corporate WINs, DNS, print, login, and gateway provisioning servers.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-6019P-WT |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Cache | |
| CPU |
|
| Cores |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| AC Input |
|
| DC Output |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DDW-L | 1 | Super X11DDW-L Motherboard |
| CSE-815TQC-605WB | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 |
| Storage Cable | ||
| CBL-SAST-0388L-02 | 1 | MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG |
| Rubber Pad | ||
| MCP-150-00015-0B | 2 | Rubber pad, 3.0mm H, 10x10mm |
| Air Shroud | ||
| MCP-310-19019-0B | 2 | SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud |
| Air Block | ||
| MCP-320-00061-0B | 1 | CR foam for air block in SC113/SC116/SC815 |
| Manual | ||
| MNL-1943-QRG | 1 | SYS-6019P-WT /WTR Quick Reference Guide,HF,RoHS |
| Riser Card (left) | ||
| RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card (right) | ||
| RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink w/ Retention | ||
| SNK-P0067PSMB | 2 | 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster |
| *Power Supply | ||
| PWS-605P-1H | 1 | 1U 600W Multi Output Power Supply PMbus |
| *Power Cord | ||
| CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| *FAN | ||
| FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| *Rail Set | ||
| MCP-290-00054-0N | 1 | Rail set, quick/quick, optional for 1U 17.2"W SC815 |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| 3.5" to 2.5" Converter Tray | ||
| MCP-220-00043-0N | - | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| Internal 2.5" HDD Tray(FDD Slot) | ||
| MCP-220-83601-0B | 1 | Black FDD dummy tray support 1x 2.5" slim HDD |
| Internal 2.5" HDD Tray(DVD Slot) | ||
| MCP-290-00036-0B | 1 | Black DVD dummy tray support 1x 2.5" slim HDD |
| Cable for internal HDD | ||
| CBL-SAST-0624 | 2 | SATA,INT,ROUND,ST-ST,70CM,30AWG |
| CBL-0289L | 1 | Y split, big 4 pin to two RA SATA power extension 30cm, 20AWG |
| Add-on card for internal M.2 NVMe | ||
| AOC-SLG3-2M2 | - | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules |
| Additional Fan | ||
| FAN-0156L4 | - | 40x40x56 mm 13K-11K RPM Counter-rotating Fan |
| Cable Management Arm | ||
| MCP-290-00085-0N | 1 | Supermicro Cable Management Arm for 1U Chassis |
| Inlet Thermal Sensor | ||
| MCP-280-00033-0N | - | Universal Thermal sensor kit with 80cm I2C cable |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
