  2. WIO System: X11DDW-L ; CSE-815TQC-600WB,HF,RoHS

WIO System: X11DDW-L ; CSE-815TQC-600WB,HF,RoHS

SYS-6019P-WT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10566/image_1920?unique=f7d9088

kr 13,114.14 13114.14 NOK kr 13,114.14

kr 13,114.14

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-6019P-WT 1U Rackmount Server offers powerful performance with dual 2nd Gen Intel® Xeon® Scalable processors and up to 3TB 3DS ECC DDR4-2933MHz memory support, ideal for various intensive applications.

    Key Features

    • • Web Server, Firewall Apps. • Corporate-Wins, DNS, Print, Login • Gateway, provisioning servers • Compact Network Appliance • Cloud Computing
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
    • 4 Hot-swap 3.5" SAS3/SATA3 drive bays with SES2
    • Optional 1 slim DVD-ROM drive
    • 2 1GbE LAN ports via Intel C621
    • 1 VGA, 4 USB 3.0 (rear)
    • 600W Multi Output Power Supply, Platinum Level High-efficiency

    Key Applications

    • Web Server
    • Firewall Apps
    • Corporate-Wins, DNS, Print, Login
    • Gateway, provisioning servers

    Description

    The Supermicro SYS-6019P-WT is a robust 1U Rackmount Server featuring dual 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) with support for up to 3TB 3DS ECC DDR4-2933MHz memory. The server is equipped with 4 hot-swap 3.5" SAS3/SATA3 drive bays with SES2, optional slim DVD-ROM drive, and multiple PCI-E slots for add-on modules and NVMe M.2 storage. Network connectivity features include 2 1GbE LAN ports via Intel C621. It also has comprehensive I/O options, including 1 VGA port, 4 USB 3.0 ports, and a 600W multi-output power supply with high-efficiency platinum-level certification. The system is designed to deliver high performance for applications in web servers, firewall apps, corporate WINs, DNS, print, login, and gateway provisioning servers.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-6019P-WT
    • SuperServer 6019P-WT ( Black )
    Motherboard
    Installed Motherboard
    • Super X11DDW-L
    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-165W*
    Cores
    • Up to 28 Cores
    Note
    • * Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244, 6246, 6250 and 6256.
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Safe Consulting Technical Support for additional information.
    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Dual LAN with Gigabit Ethernet from C621
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 4 SATA3 (6 Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-815TQC-605WB
    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 1.7" (43mm)
    Depth
    • 25.6" (650mm)
    Gross Weight
    • 46 lbs (20.9kg)
    Available Colors
    • Black

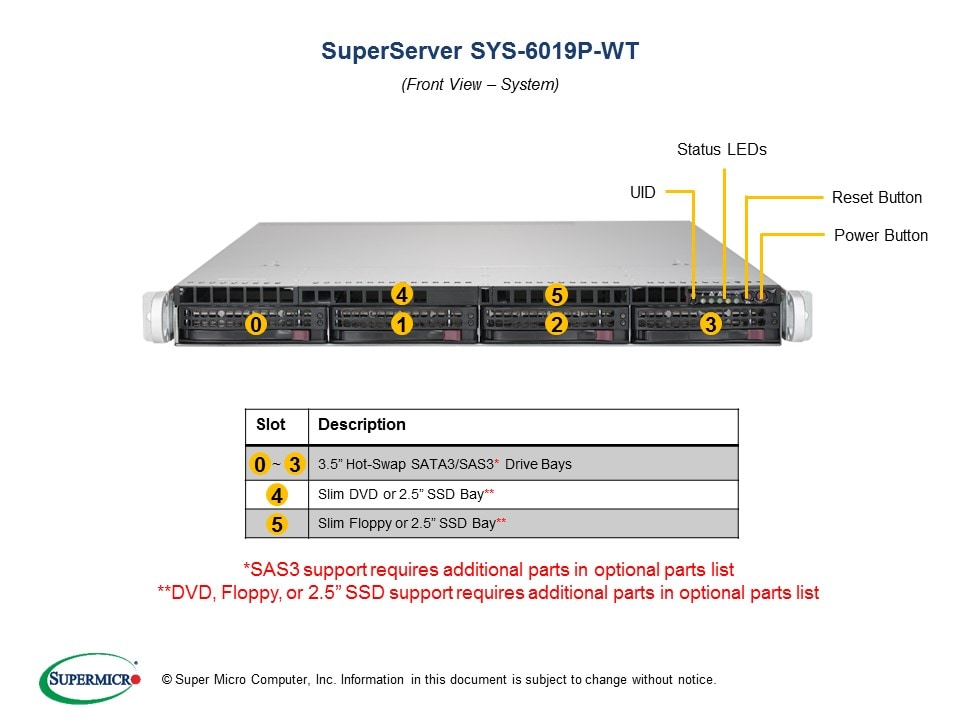

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHHL) slots
    • 1 PCI-E 3.0 x8 (LP) slot
    • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
    • 1 PCI-E 3.0 x4 NVMe M.2 slot
    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays
    System Cooling
    Fans
    • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
    Power Supply
    • 600W High-Efficiency Power Supply w/PM Bus 1.2, I2C, PFC, and Digital Switching
    AC Input
    • 100-240V, 50-60Hz
    DC Output
    • +3.3V: 15A
    • +5V: 18A
    • +5V standby: 3A
    • +12V: 49A
    • -12V: 0.5A
    Certification
    • Platinum Certified
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • SAS/SATA HDD Backplane

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DDW-L1Super X11DDW-L Motherboard
    CSE-815TQC-605WB11U Chassis
    Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Storage Cable
    CBL-SAST-0388L-021MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
    Rubber Pad
    MCP-150-00015-0B2Rubber pad, 3.0mm H, 10x10mm
    Air Shroud
    MCP-310-19019-0B2SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
    Air Block
    MCP-320-00061-0B1CR foam for air block in SC113/SC116/SC815
    Manual
    MNL-1943-QRG1SYS-6019P-WT /WTR Quick Reference Guide,HF,RoHS
    Riser Card (left)
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card (right)
    RSC-R1UW-E8R11U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink w/ Retention
    SNK-P0067PSMB21U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
    *Power Supply
    PWS-605P-1H11U 600W Multi Output Power Supply PMbus
    *Power Cord
    CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    *FAN
    FAN-0156L4440x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    *Rail Set
    MCP-290-00054-0N1Rail set, quick/quick, optional for 1U 17.2"W SC815

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray
    MCP-220-00043-0N-Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    Internal 2.5" HDD Tray(FDD Slot)
    MCP-220-83601-0B1Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray(DVD Slot)
    MCP-290-00036-0B1Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD
    CBL-SAST-06242SATA,INT,ROUND,ST-ST,70CM,30AWG
    CBL-0289L1Y split, big 4 pin to two RA SATA power extension 30cm, 20AWG
    Add-on card for internal M.2 NVMe
    AOC-SLG3-2M2-Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Additional Fan
    FAN-0156L4-40x40x56 mm 13K-11K RPM Counter-rotating Fan
    Cable Management Arm
    MCP-290-00085-0N1Supermicro Cable Management Arm for 1U Chassis
    Inlet Thermal Sensor
    MCP-280-00033-0N-Universal Thermal sensor kit with 80cm I2C cable
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
