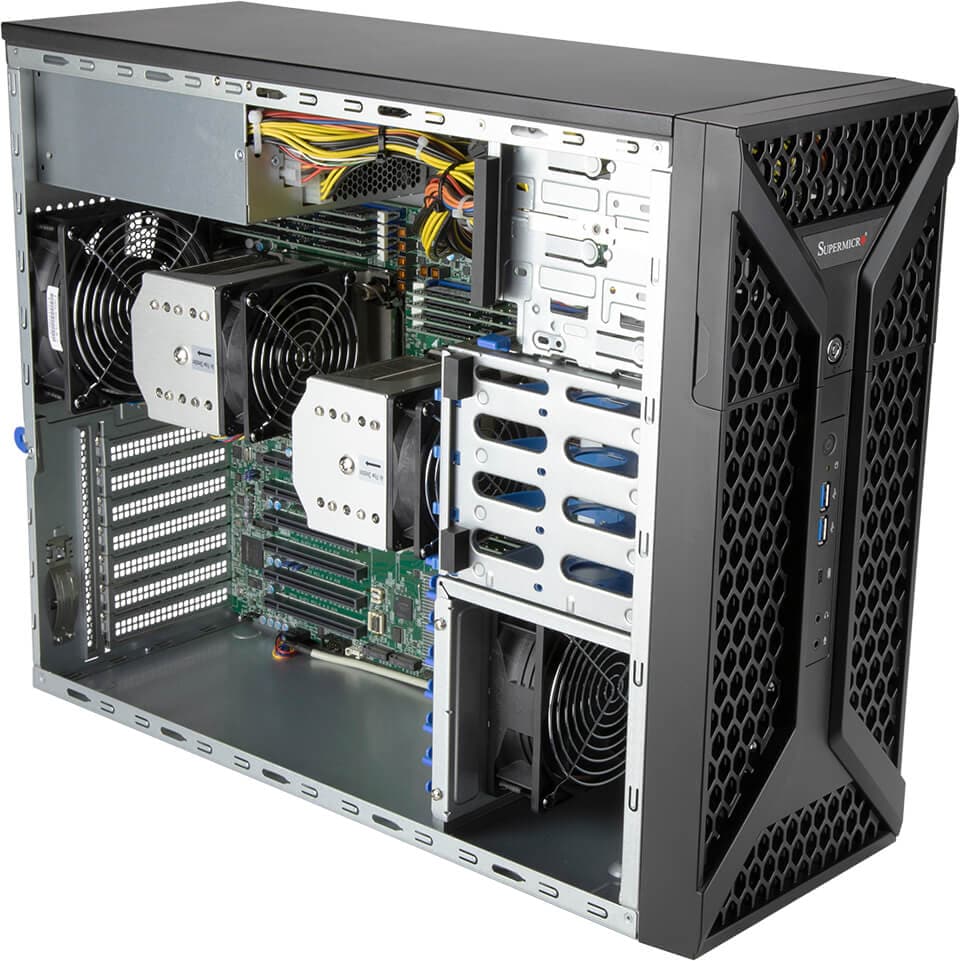

X12DAi-N6, CSE-735D4-1K26B, DP Workstation
SYS-730A-I
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Featuring dual socket 3rd Gen Intel Xeon Scalable processors, the Supermicro SYS-730A-I is designed for demanding applications like rendering, CAD, and multimedia creation. With up to 2TB memory, multiple GPU support, advanced security features, and efficient cooling, it delivers reliability and performance.
Key Features
- 3rd Gen Intel® Xeon® Scalable processor support
- Intel® C621A Chipset
- 5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots
- 4x internal 3.5" SATA rotating drive bays for easy access2x 5.25" peripheral drive baysup to 4x NVMe SSD support with opitonal cables and converter trays
- Compact and quiet operationNew front bezel with keylock for added security
Key Applications
- Rendering
- CAD
- Multimedia/Digital Content creation
- Engineering/scientific research
Description
The Supermicro SYS-730A-I is a high-performance workstation ideal for applications such as rendering, CAD, multimedia/digital content creation, and engineering/scientific research. It supports dual 3rd Gen Intel Xeon Scalable processors, ensuring optimal computing power. The system includes extensive expandability with 5 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slots, plus 2 NVMe M.2 slots. Memory capacity can reach up to 2TB with 16 DIMM slots supporting 3200MT/s ECC DDR4 RDIMM/LRDIMM. The workstation offers robust security with TPM 2.0 and cryptographically signed firmware. Advanced cooling solutions and Supermicro's comprehensive management software suite make it a reliable choice for professionals.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Core Count |
|
| Note |
|
| GPU | |
| Max GPU Count |
|
| Supported GPU |
|
| CPU-GPU Interconnect |
|
| System Memory | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices | |
| SATA |
|
| Chipset |
|
| Network Connectivity |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| Audio |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| Temperature |
|
| FAN |
|
| CPU |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 4 bays:
|
| M.2 |
|
| Peripheral Bays |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| 1x 1200W Platinum Level (94%) power supply | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
Certification:
|
| Operating Environment | |
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12DAI-N6 | 1 | Super X12DAI-N6 Motherboard |
| CSE-735D4-1K26B | 1 | Mid-Tower Chassis |
| Cable | ||
| CBL-0082L | 2 | Y SPLIT SATA POWER ADAPTER, PB FREE |
| CBL-SAST-0624 | 4 | 7pin SATA (STR to STR),70cm,PBF |
| CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| CBL-0453L | 1 | USB3.0 Internal Cable-60cm(19pin Female to 19pin Female) |
| CBL-CDAT-0560 | 1 | Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF |
| CBL-CDAT-0680-55 | 1 | NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS |
| CBL-CUSB-0999-45OR | 1 | [NR] USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u",RoHS |
| CBL-CUSB-0999-45M | - | USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS |
| Parts | ||
| MCP-260-00115-0N | 1 | Standard I/O Shield for X11DAi with EMI Gasket |
| Manual | ||
| MNL-2390-QRG | 1 | 730A-I Quick Reference Guide |
| *Power Supply | ||
| PWS-1K26P-PQ | 1 | 1000W/1200W PS2 Multi output power supply with modular cable |
| *Fan | ||
| FAN-0077L4-1 | 2 | 120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732 |
| *Front Panel | ||
| FPB-FP735 | 1 | Front control board for CSE735,RoHS |
| *Front Bezel | ||
| MCP-210-73503-0B | 1 | CSE-735D4 front brezel assembly - Black |
| MCP-210-73504-0B | 1 | 735 front control I/O bezel |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| DVD-RW Drive | ||
| DVM-LITE-DVDRW24-HBT1 | - | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE |
| HDD Cage | ||
| MCP-220-73201-0N | - | 2.5" HDD Cage (supports up to 4x 2.5" HDD/SSD) |
| Heat Sink | ||
| SNK-P0080AP4 | - | 4U Active CPU Heat Sink for X12 Generation DP Workstations |
| Management Software | ||
| SFT-DCMS-SINGLE | - | Supermicro System Managment Software Suite - 1 per node |
| NVMe Cable | ||
| CBL-SAST-0953 | - | Slimline x8 to PCIe 2x SFF-8639 (1 cable supports up two 2.5" NVMe drives) |
| OOB License | ||
| SFT-OOB-LIC | - | License for out of band management |
| SATA Cable | ||
| CBL-SAST-0624 | - | 70cm SATA Cable (1pc required for DVD Drive) |
| SATA Power adapter | ||
| CBL-0082L | - | Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive) |
| TPM security module | ||
| AOM-TPM-9670V | - | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
