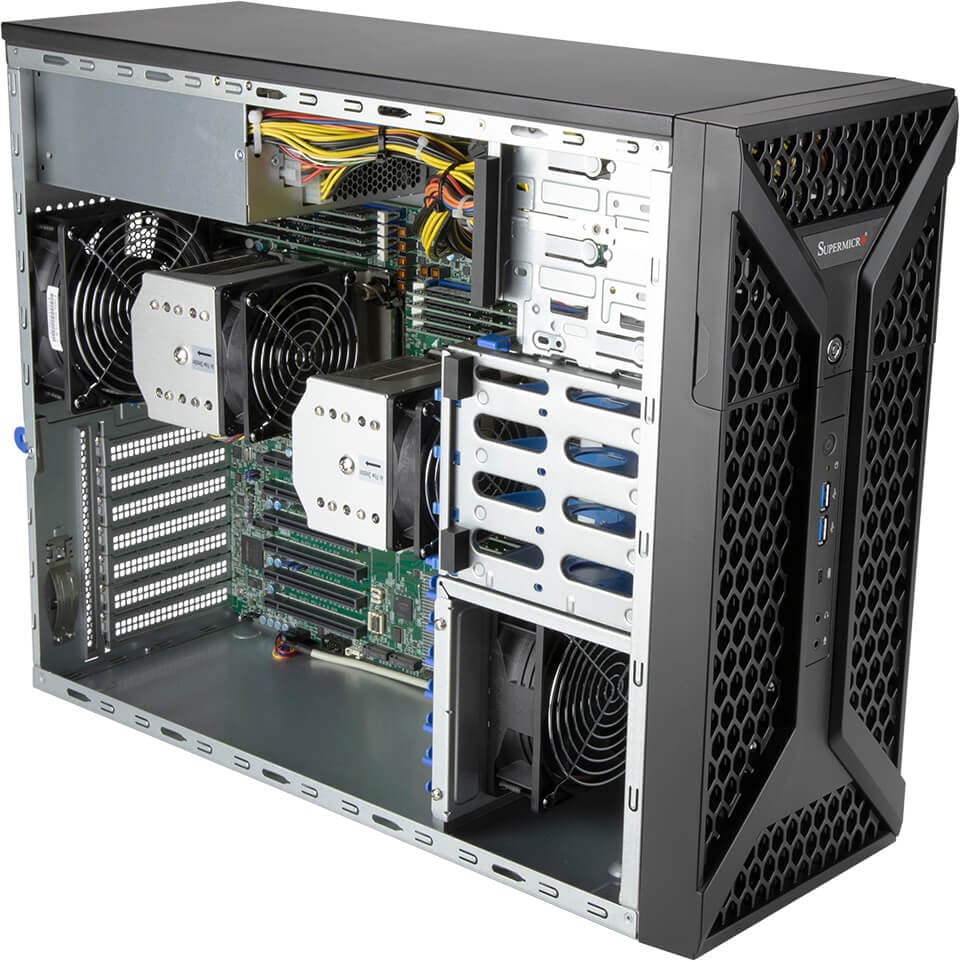

X12DAi-N6, CSE-735D4-1K26B, DP Workstation

SYS-730A-I

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10526/image_1920?unique=7c1c8fe

kr 16,760.87 16760.87 NOK kr 16,760.87

kr 16,760.87

Not Available For Sale

    This combination does not exist.

    Summary Description

    Featuring dual socket 3rd Gen Intel Xeon Scalable processors, the Supermicro SYS-730A-I is designed for demanding applications like rendering, CAD, and multimedia creation. With up to 2TB memory, multiple GPU support, advanced security features, and efficient cooling, it delivers reliability and performance.

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processor support
    • Intel® C621A Chipset
    • 5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots
    • 4x internal 3.5" SATA rotating drive bays for easy access2x 5.25" peripheral drive baysup to 4x NVMe SSD support with opitonal cables and converter trays
    • Compact and quiet operationNew front bezel with keylock for added security

    Key Applications

    • Rendering
    • CAD
    • Multimedia/Digital Content creation
    • Engineering/scientific research

    Description

    The Supermicro SYS-730A-I is a high-performance workstation ideal for applications such as rendering, CAD, multimedia/digital content creation, and engineering/scientific research. It supports dual 3rd Gen Intel Xeon Scalable processors, ensuring optimal computing power. The system includes extensive expandability with 5 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slots, plus 2 NVMe M.2 slots. Memory capacity can reach up to 2TB with 16 DIMM slots supporting 3200MT/s ECC DDR4 RDIMM/LRDIMM. The workstation offers robust security with TPM 2.0 and cryptographically signed firmware. Advanced cooling solutions and Supermicro's comprehensive management software suite make it a reliable choice for professionals.

    Product Specifications

    Product SKUs
    SuperWorkstationSYS-730A-I
    Motherboard
    Super X12DAI-N6
    Processor
    CPUDual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    Core CountUp to 40C/80T; Up to 60MB Cache per CPU
    NoteSupports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 2 double-width or 2 single-width GPU(s)
    Supported GPUNVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, RTX 5000
    View GPU Options
    CPU-GPU InterconnectPCIe 4.0 x16 Switch Single-Root
    System Memory
    MemorySlot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel® Optane™ persistent memory 200 series
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    SATASATA (6Gbps) ; RAID 0/1/5/10 support
    ChipsetIntel® C621A
    Network Connectivity2 RJ45 1GbE
    View AOC Options
    Input / Output
    LAN2 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1)
    USB4 USB 3.2 Gen1 port(s) (rear)
    2 USB 3.2 Gen1 port(s) (front)
    1 USB 3.2 Gen2 port(s) (front)
    Video1 VGA port(s)
    DOM2 SATADOM(Disk on Module) port(s)
    Audio7.1 HD Audio
    Rear Audio
    Mic in
    System BIOS
    BIOS TypeAMI 32MB SPI FLASH ROM
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI/APM Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    PC Health Monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    Chassis
    Form FactorMid-Tower
    ModelCSE-735D4-1K26B
    Dimensions and Weight
    Height16.7" (424 mm)
    Width7.6" (193 mm)
    Depth20.68" (525.3 mm)
    Package21.38" (H) x 11.97" (W) x 25.28" (D)
    WeightGross Weight: 30 lbs (13.61 kg)
    Net Weight: 27 lbs (12.25 kg)
    Available Colorblack
    Front Panel
    LEDHDD activity LED
    ButtonsPower On/Off button
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault5 PCIe 4.0 x16 FHFL slot(s)1 PCIe 4.0 x8 FHHL slot(s)
    View AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 4 bay(s)4 internal fixed 3.5" NVMe*/SATA drive bay(s)
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.22 M.2 NVMe slot(s) (M-key)
    View M.2 Options
    Peripheral Bays2 5.25" peripheral bay(s) (optional)
    System Cooling
    Fans2x 12cm Fan(s)
    Power Supply
    1x 1200W1x 1200W Platinum Level (94%) power supplyDimension (WxHxL)150 x 86 x 185 mmAC Input1000W: 100-120Vac / 50-60Hz1200W: 120-240Vac / 50-60Hz+12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac)5V SBMax: 3A / Min: 0AOutput Type24pin ATXCertificationPlatinum Level[Test Report]
    1x 1200W1x 1200W Platinum Level (94%) power supplyDimension (WxHxL)150 x 86 x 185 mmAC Input1000W: 100-120Vac / 50-60Hz1200W: 120-240Vac / 50-60Hz+12VMax: 83A / Min: 1A (100Vac-120Vac)Max: 99A / Min: 1A (120Vac-240Vac)5V SBMax: 3A / Min: 0AOutput Type24pin ATXCertificationPlatinum Level[Test Report]
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12DAI-N61Super X12DAI-N6 Motherboard
    CSE-735D4-1K26B1Mid-Tower Chassis
    Cable
    Part NumberQuantityDescription
    CBL-0082L2Y SPLIT SATA POWER ADAPTER, PB FREE
    CBL-SAST-062447pin SATA (STR to STR),70cm,PBF
    CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-0453L1USB3.0 Internal Cable-60cm(19pin Female to 19pin Female)
    CBL-CDAT-05601Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
    CBL-CDAT-0680-551NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
    CBL-CUSB-0999-45OR1[NR] USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u",RoHS
    CBL-CUSB-0999-45M-USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS
    Parts
    Part NumberQuantityDescription
    MCP-260-00115-0N1Standard I/O Shield for X11DAi with EMI Gasket
    Manual
    Part NumberQuantityDescription
    MNL-2390-QRG1730A-I Quick Reference Guide
    *Power Supply
    Part NumberQuantityDescription
    PWS-1K26P-PQ11000W/1200W PS2 Multi output power supply with modular cable
    *Fan
    Part NumberQuantityDescription
    FAN-0077L4-12120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732
    *Front Panel
    Part NumberQuantityDescription
    FPB-FP7351Front control board for CSE735,RoHS
    *Front Bezel
    Part NumberQuantityDescription
    MCP-210-73503-0B1CSE-735D4 front brezel assembly - Black
    MCP-210-73504-0B1735 front control I/O bezel

    Optional Part List

    DVD-RW Drive
    Part NumberQuantityDescription
    DVM-LITE-DVDRW24-HBT1-BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE
    HDD Cage
    Part NumberQuantityDescription
    MCP-220-73201-0N•-2.5" HDD Cage (supports up to 4x 2.5" HDD/SSD)
    Heat Sink
    Part NumberQuantityDescription
    SNK-P0080AP4•-4U Active CPU Heat Sink for X12 Generation DP Workstations
    Management Software
    Part NumberQuantityDescription
    SFT-DCMS-SINGLE•-Supermicro System Managment Software Suite - 1 per node
    NVMe Cable
    Part NumberQuantityDescription
    CBL-SAST-0953•-Slimline x8 to PCIe 2x SFF-8639 (1 cable supports up two 2.5" NVMe drives)
    OOB License
    Part NumberQuantityDescription
    SFT-OOB-LIC•-License for out of band management
    SATA Cable
    Part NumberQuantityDescription
    CBL-SAST-0624•-70cm SATA Cable (1pc required for DVD Drive)
    SATA Power adapter
    Part NumberQuantityDescription
    CBL-0082L•-Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
    TPM security module
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
