    Summary Description

    The Supermicro SYS-E50-9AP-N5 is an IoT Gateway that provides a comprehensive solution for entry-level networking needs. Powered by an Intel® Atom® E3940 processor, it features a fanless design, multiple LAN ports, and various expansion options, making it ideal for industrial and IoT applications.

    Key Features

    • IoT Gateway - Entry Networking Appliance
    • Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
    • System on Chip
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242 for SATA SSD
    • Up to 8GB Unbuffered Non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
    • 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
    • 5 LAN with Intel I210-IT
    • 2 USB 3.0, 2 USB 2.0, 1 COM, 2 HDMI, ALC 888S HD Audio, 1 TPM 2.0 onboard
    • Fanless design
    • Lockable 12V DC 40W power adapter

    Key Applications

    • IoT Gateway
    • Entry Networking Appliance
    • Industrial Applications
    • Edge Computing

    Description

    The Supermicro SYS-E50-9AP-N5 SuperServer is tailored for entry-level IoT gateway and networking appliance needs. It is equipped with the Intel® Atom® E3940 processor, offering a robust yet energy-efficient performance. This system comes with a variety of features including 1 SATA 3.0 for SSD, M.2 slots, multiple LAN ports, and comprehensive I/O options. Designed with a fanless chassis, it ensures silent operation and increased reliability. Other key features include support for up to 8GB DDR3L memory, integrated TPM 2.0, HDMI output, and a lockable 12V DC power adapter.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E50-9AP-N5
    • SuperServer E50-9AP-N5 ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAP-H
    Processor/Cache
    CPU
    • Intel® Atom® processor E3940
    • Single socket FCBGA 1296
    • 9.5W, 4C
    System Memory
    Memory Capacity
    • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
    Memory Type
    • DDR3L up to 1866MHz
    DIMM Sizes
    • 8GB, 4GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • 5 LAN with Intel® Ethernet Controller I210-IT
    Audio
    • ALC 888S HD Audio
    Graphics
    • Intel® HD Graphics
    • HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
    Input / Output
    LAN
    • 5 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports (front)
    Video
    • 2 HDMI port
    COM
    • 1 COM
    TPM
    • 1 TPM 2.0 onboard
    Chassis
    Form Factor
    • Proprietary
    Model
    • CSE-E50

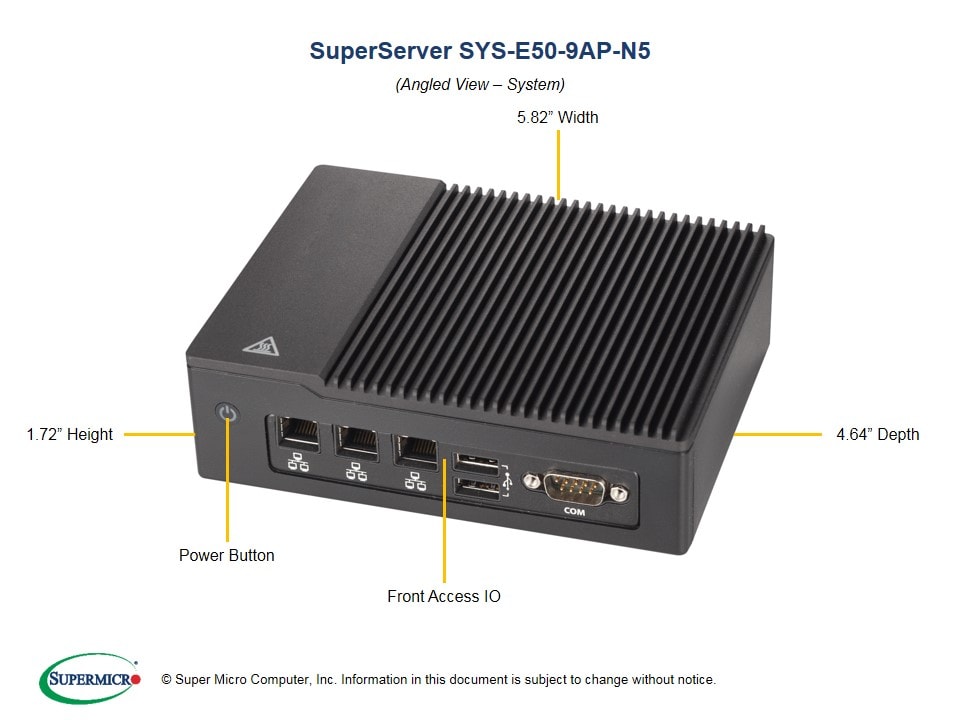

    Dimensions
    Width
    • 5.82" (148mm)
    Height
    • 1.72" (44mm)
    Depth
    • 4.64" (118mm)
    Package
    • 5.5" (H) x 9.5" (W) x 8" (D)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 Half size Mini-PCIe
    M.2
    • 1 M.2 B-Key 2242 for storage (SATA SSD)
    • 1 M.2 E-Key 2230 for communication module
    Drive Bays / Storage
    Internal
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD OR1 M.2 B-Key 2242 for SATA SSD
    System Cooling
    Fans
    • Fanless design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:-20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 40W lockable 12V DC power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAP-H1Super A2SAP-H Motherboard
    CSE-E501IP51 Fanless Chassis for 2.5" PICO
    Add-on Card / Module
    AOM-PICO-3L-P1Add-on I/O Module for Pico-ITX A2SAP and Embedded IoT system SYS-E50 series with 3 GbE LANs.,RoHS
    Cable 1
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Parts
    MCP-210-05002-0B1Front IO for CSE-E50 with 2xUSB2.0, 1xCOM, 3xLAN
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
