  2. CSE-E50, A2SAP-H, 5LAN,HF,RoHS

CSE-E50, A2SAP-H, 5LAN,HF,RoHS

SYS-E50-9AP-N5

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10592/image_1920?unique=daeccc6

kr 5,289.17 5289.17 NOK kr 5,289.17

kr 5,289.17

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E50-9AP-N5 is an IoT Gateway that provides a comprehensive solution for entry-level networking needs. Powered by an Intel® Atom® E3940 processor, it features a fanless design, multiple LAN ports, and various expansion options, making it ideal for industrial and IoT applications.

    Key Features

    • IoT Gateway - Entry Networking Appliance
    • Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
    • System on Chip
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242 for SATA SSD
    • Up to 8GB Unbuffered Non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
    • 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
    • 5 LAN with Intel I210-IT
    • 2 USB 3.0, 2 USB 2.0, 1 COM, 2 HDMI, ALC 888S HD Audio, 1 TPM 2.0 onboard
    • Fanless design
    • Lockable 12V DC 40W power adapter

    Key Applications

    • IoT Gateway
    • Entry Networking Appliance
    • Industrial Applications
    • Edge Computing

    Description

    The Supermicro SYS-E50-9AP-N5 SuperServer is tailored for entry-level IoT gateway and networking appliance needs. It is equipped with the Intel® Atom® E3940 processor, offering a robust yet energy-efficient performance. This system comes with a variety of features including 1 SATA 3.0 for SSD, M.2 slots, multiple LAN ports, and comprehensive I/O options. Designed with a fanless chassis, it ensures silent operation and increased reliability. Other key features include support for up to 8GB DDR3L memory, integrated TPM 2.0, HDMI output, and a lockable 12V DC power adapter.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E50-9AP-N5
    • SuperServer E50-9AP-N5 ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAP-H
    Processor/Cache
    CPU
    • Intel® Atom® processor E3940
    • Single socket FCBGA 1296
    • 9.5W, 4C
    System Memory
    Memory Capacity
    • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
    Memory Type
    • DDR3L up to 1866MHz
    DIMM Sizes
    • 8GB, 4GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • 5 LAN with Intel® Ethernet Controller I210-IT
    Audio
    • ALC 888S HD Audio
    Graphics
    • Intel® HD Graphics
    • HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
    Input / Output
    LAN
    • 5 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports (front)
    Video
    • 2 HDMI port
    COM
    • 1 COM
    TPM
    • 1 TPM 2.0 onboard
    Chassis
    Form Factor
    • Proprietary
    Model
    • CSE-E50

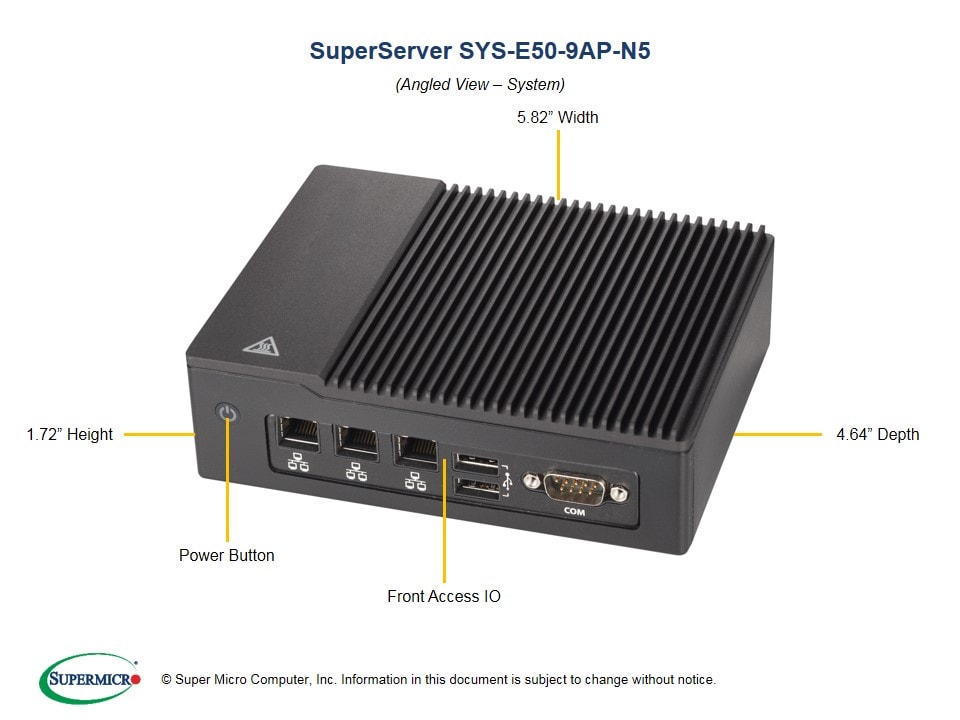

    Dimensions
    Width
    • 5.82" (148mm)
    Height
    • 1.72" (44mm)
    Depth
    • 4.64" (118mm)
    Package
    • 5.5" (H) x 9.5" (W) x 8" (D)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 Half size Mini-PCIe
    M.2
    • 1 M.2 B-Key 2242 for storage (SATA SSD)
    • 1 M.2 E-Key 2230 for communication module
    Drive Bays / Storage
    Internal
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD OR1 M.2 B-Key 2242 for SATA SSD
    System Cooling
    Fans
    • Fanless design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:-20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 40W lockable 12V DC power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAP-H1Super A2SAP-H Motherboard
    CSE-E501IP51 Fanless Chassis for 2.5" PICO
    Add-on Card / Module
    AOM-PICO-3L-P1Add-on I/O Module for Pico-ITX A2SAP and Embedded IoT system SYS-E50 series with 3 GbE LANs.,RoHS
    Cable 1
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Parts
    MCP-210-05002-0B1Front IO for CSE-E50 with 2xUSB2.0, 1xCOM, 3xLAN
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
