  2. RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD

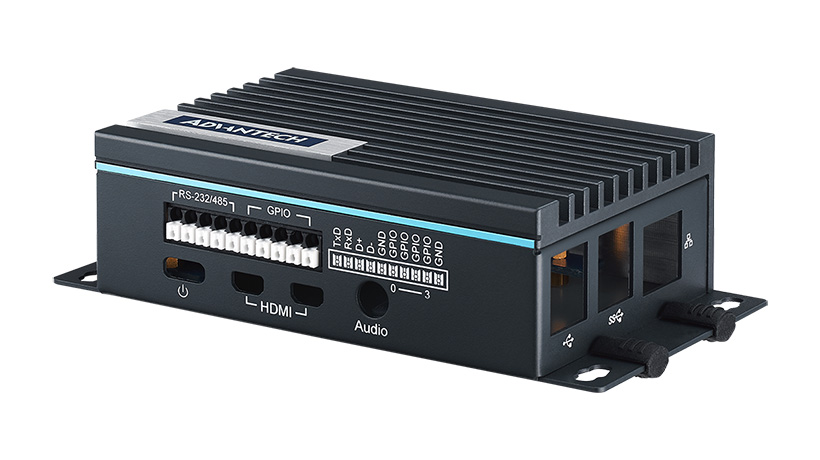

RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD

SKU: UNO-220-P4N1AE
GTIN (EAN/UPC): 4719879824476
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13106/image_1920?unique=4a7bc7d

kr 1 162,85 1162.8500000000001 NOK kr 1 162,85 Ekskl. mva

kr 1 162,85 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The UNO-220 transforms a Raspberry Pi 4 into a ruggedized industrial gateway, featuring RS-232/485 and GPIO interfaces. With a robust aluminum enclosure, it supports AdvRaspbian OS and ensures reliable performance in shopfloor settings. Certified for AWS IoT Greengrass for seamless integration.

    Nøkkelfunksjoner

    • Ruggedized aluminum housing
    • RS-232/485 and GPIO interfaces
    • Pre-installed AdvRaspbian OS
    • AWS IoT Greengrass certified
    • RTC battery backup for reliability
    • Multiple mounting options

    Viktige bruksområder

    • Industrial IoT solutions
    • Factory automation
    • Shopfloor data collection
    • Remote monitoring systems

    Beskrivelse

    The UNO-220 enhances Raspberry Pi 4 capabilities in industrial settings with a robust aluminum housing. It features 1 RS-232/485 serial port and 4 GPIOs for flexible connectivity. The kit includes an 8GB SD card and supports AdvRaspbian OS for seamless operation. Certified for Amazon AWS IoT Greengrass, it is ideal for shop floor environments.

    Produktspesifikasjoner

    Specification Details
    General
    Certification
    • CE
    • FCC
    Dimensions
    • 100 x 70 x 32 mm
    Form Factor
    • Micro
    Enclosure
    • Aluminum Housing
    Weight
    • 0.5 kg
    Power Consumption
    • 15W (Typical)
    OS Support
    • AdvRaspbian
    System Hardware
    Hardware Security
    • TPM 2.0 (available upon request)
    Storage
    • 1 x Micro SD slot (8GB SD card included)
    I/O Interfaces
    Serial Ports
    • 1 x RS-232/485 (5-pin terminal block)
    GPIOInput:
    • VIH: 2 ~ 5V, VIL: 0 ~ 0.8V

    Output:
    • 0 ~ 5V

    Environmental
    Operating Temperature
    • 0 ~ 50°C
    Storage Temperature
    • -20 ~ 60°C
    Relative Humidity
    • 10 ~ 95% RH @ 40°C, non-condensing
    Ingress Protection
    • IP40

    Bygg IoT-applikasjoner raskt med UNO-220 Industrial Kit for Raspberry Pi 4

    UNO-220 industrial gateway-kit fra Advantech er kompatibelt med Raspberry Pi 4 og et rimelig valg for rask utrulling av industrielle løsninger. Med plug-and-play-støtte for RPi 4 tilbyr UNO en ideell HAT og kabinett for produsenter som ønsker å bygge IoT-applikasjoner.

    Hva er HAT og kabinett?

    I/O-kort

    • Raspberry Pi er ikke inkludert, men enkelt å installere
    • Pi HAT (I/O-kort)
      - 4 x GPIO
      - 1 x RS232/485
      8 GB SD-kort med OS-avbildning

    Kabinett i industriell kvalitet

    • Høykvalitets kabinett laget av slitesterk 1,5 mm aluminium ​
    • Kompatibelt med Raspberry Pi4 SBC-er
    • Gir optimal beskyttelse for Raspberry Pi
    • Forbedret varmeavledning
    • Enkel tilgang til I/O for praktisk vedlikehold
    • ESD-beskyttelse
