  1. All Products
  2. RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD

RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD

SKU: UNO-220-P4N1AE
GTIN (EAN/UPC): 4719879824476
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13106/image_1920?unique=cd088ac

kr 1,164.00 1164.0 NOK kr 1,164.00 VAT Excluded

kr 1,164.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The UNO-220 transforms a Raspberry Pi 4 into a ruggedized industrial gateway, featuring RS-232/485 and GPIO interfaces. With a robust aluminum enclosure, it supports AdvRaspbian OS and ensures reliable performance in shopfloor settings. Certified for AWS IoT Greengrass for seamless integration.

    Key Features

    • Ruggedized aluminum housing
    • RS-232/485 and GPIO interfaces
    • Pre-installed AdvRaspbian OS
    • AWS IoT Greengrass certified
    • RTC battery backup for reliability
    • Multiple mounting options

    Key Applications

    • Industrial IoT solutions
    • Factory automation
    • Shopfloor data collection
    • Remote monitoring systems

    Description

    The UNO-220 enhances Raspberry Pi 4 capabilities in industrial settings with a robust aluminum housing. It features 1 RS-232/485 serial port and 4 GPIOs for flexible connectivity. The kit includes an 8GB SD card and supports AdvRaspbian OS for seamless operation. Certified for Amazon AWS IoT Greengrass, it is ideal for shop floor environments.

    Product Specifications

    Specification Details
    General
    Certification
    • CE
    • FCC
    Dimensions
    • 100 x 70 x 32 mm
    Form Factor
    • Micro
    Enclosure
    • Aluminum Housing
    Weight
    • 0.5 kg
    Power Consumption
    • 15W (Typical)
    OS Support
    • AdvRaspbian
    System Hardware
    Hardware Security
    • TPM 2.0 (available upon request)
    Storage
    • 1 x Micro SD slot (8GB SD card included)
    I/O Interfaces
    Serial Ports
    • 1 x RS-232/485 (5-pin terminal block)
    GPIOInput:
    • VIH: 2 ~ 5V, VIL: 0 ~ 0.8V

    Output:
    • 0 ~ 5V

    Environmental
    Operating Temperature
    • 0 ~ 50°C
    Storage Temperature
    • -20 ~ 60°C
    Relative Humidity
    • 10 ~ 95% RH @ 40°C, non-condensing
    Ingress Protection
    • IP40

    Build IoT Application Rapidly with the UNO-220 Industrial Kit for Raspberry Pi 4

    Compatible with Raspberry Pi 4, Advantech's UNO-220 industrial gateway kit is an affordable choice for rapid deployment of industrial solutions. With plug-and-play support for RPi 4, UNO provides the ideal HAT and enclosure for manufacturers to build IoT applications.

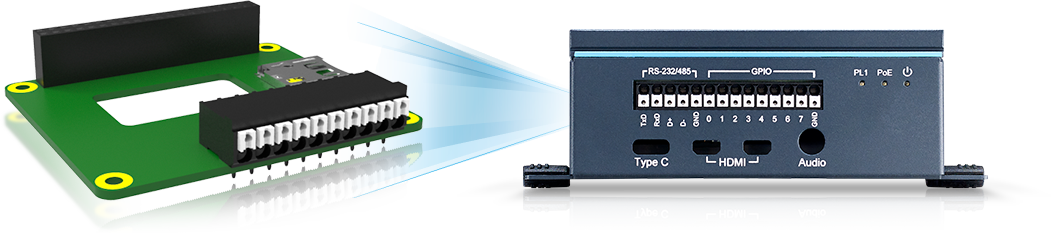

    What are Hat and Enclosure?​

    I/O board

    • Raspberry Pi not included but easily installed
    • Pi HAT (I/O board)
      - 4 x GPIO
      - 1 x RS232/485
      - 8G SD card with OS image

    Industrial-grade chasis

    • High-quality housing made from durable 1.5 mm aluminum
    • Compatible with Raspberry Pi4 SBCs
    • Provides optimum protection for Raspberry Pi
    • Improved heat dissipation
    • Easy-access I/O for convenient maintenance
    • ESD protection
