X11SPH-nCTF, CSE-826BE1C-R802LPB
SSG-5029P-E1CTR12L
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SSG-5029P-E1CTR12L is a 2U storage appliance featuring a single socket P (LGA 3647) that supports 2nd Gen Intel® Xeon® Scalable processors, up to 2TB DDR4 memory, and redundant 800W power supplies. Ideal for high availability storage and data serving.
Key Features
- Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake) ‡
- 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
- 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
- 2x 10GBase-T with Intel® X557

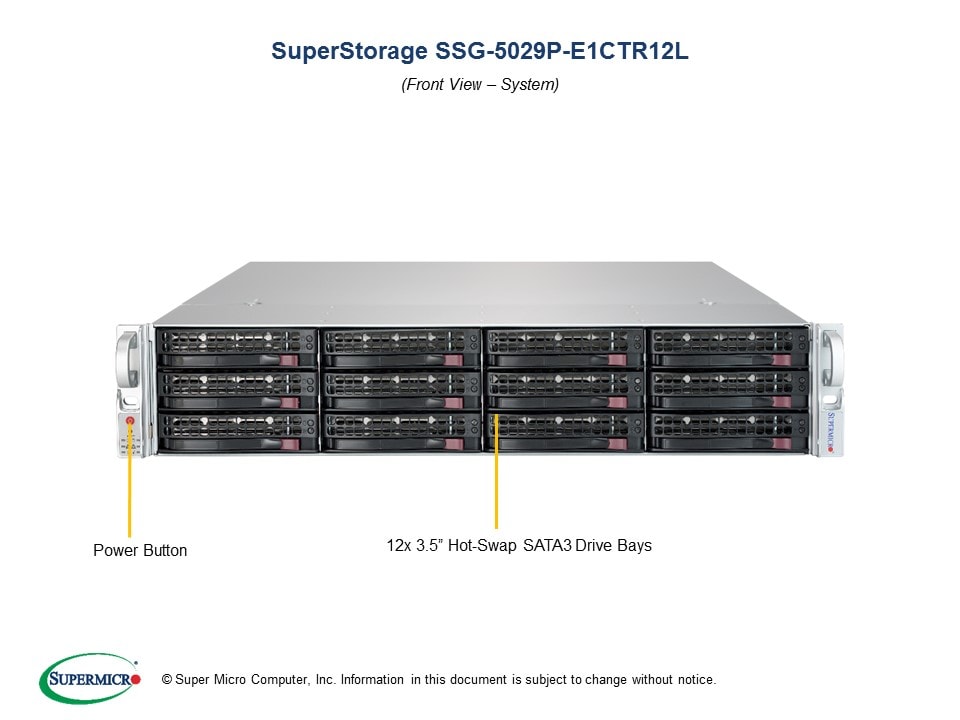

- 12 Hot-swap 3.5" SAS/SATA drive bays with SES3; 2 Hot-swap 2.5" NVMe/SATA (rear, optional)
- SAS3 via Broadcom 3008 controller
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 3 High-performance 80mm PWM fans
- 800W Redundant Power Supplies Titanium Level (96%)
Key Applications
- Application and data serving
- Connectivity/Storage Compute Nodes
- High Availability Storage Appliance Platform
Description
The Supermicro SSG-5029P-E1CTR12L is designed to provide high availability and performance for enterprise storage solutions. It supports a single socket P (LGA 3647) for 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake), eight DIMM slots for up to 2TB of 3DS ECC DDR4-2933MHz memory, and Intel® Optane™ DCPMM. It includes 12 hot-swap 3.5" SAS/SATA drive bays with SES3 and two hot-swap 2.5" NVMe/SATA bays. Networking is facilitated by dual 10GBase-T with Intel® X557, and it supports various I/O options including M.2 and multiple PCI-E slots. The chassis is 2U rackmount with redundant 800W power supplies for energy efficiency and reliability.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SSG-5029P-E1CTR12L |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| SAS |
|
| Network Controllers |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| VGA |
|
| Serial Port / Header |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays / Storage | |
| Hot-swap |
|
| Optional |
|
| System Cooling | |
| Fans |
|
| Power Supply (76mm Width) | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SPH-nCTF | 1 | Super X11SPH-nCTF Motherboard |
| CSE-826BE1C-R802LPB | 1 | 2U Chassis |
| Add-on Card / Module | ||
| AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH |
| Backplane | ||
| BPN-SAS3-826EL1 | 1 | 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 | ||
| CBL-SAST-0532 | 2 | MINI SAS HD,12G,INT,50CM,30AWG |
| Cable 2 | ||
| CBL-SAST-0568 | 2 | MINI SAS HD,12G,INT,35CM,30AWG |
| Parts | ||
| MCP-260-00109-0N | 1 | Standard I/O Shield for X11SPM-TF with EMI Gasket |
| Manual | ||
| MNL-1991-QRG | 1 | 5029P-E1CR12L Quick Reference Guide |
| Heatsink / Retention | ||
| SNK-P0068PS | 1 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | ||
| PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input |
| FAN 1 | ||
| FAN-0158L4 | 3 | 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH |
| Drive Tray(s) | ||
| MCP-220-00075-0B | 12 | Black 3.5" HDD tray |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| 3.5" to 2.5" Converter Tray | ||
| MCP-220-00043-0N | - | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| Peripheral Drives | ||
| MCP-220-82616-0N | 1 | Rear Window 12G 2x 2.5" HDD Module |
| Storage Controller card & cable | ||
| AOC-S3108L-H8iR | - | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 |
| Network Card(s) | ||
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 |
| AOC-STGN-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES |
| AOC-STGF-i2S | - | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 |
| AOC-STG-B4S | - | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S |
| AOC-STGS-i2T | - | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| AOC-S25G-b2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 |
| AOC-S25G-m2S | - | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX |
| NVMe Optional Parts(Complete System with NVMe Drives) | ||
| MCP-220-82619-0N | 1 | Rear hot-swap 2.5" x2 NVMe drive kit |
| CBL-SAST-0819 | 2 | OCuLink v1.0 INT PCIe NVMe SSD, 65CM, 34AWG |
| Front Bezels | ||
| MCP-210-82601-0B | 1 | Black front bezels |
| TPM security module | ||
| AOM-TPM-9670V | 1 | TPM 2.0, vertical form factor |
| AOM-TPM-9671V | 1 | TPM 1.2, vertical form factor |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
