X12 Dual Node SBB 90-bay Storage Server

SSG-640SP-DE2CR90

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs, 2 Storage Devices and 2 Server-Grade M.2/internal SATA SSD)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10552/image_1920?unique=5e77b27

kr 139,600.43 139600.43 NOK kr 139,600.43

kr 139,600.43

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SSG-640SP-DE2CR90 is a powerful and versatile 4U rackmount storage server, designed to meet the rigorous demands of Big Data, AI/ML, Telco, and Cloud Service Providers. With dual socket 3rd Gen Intel Xeon Scalable processors and support for up to 4TB of ECC DDR4 memory, this server offers unmatched performance and reliability.

    Key Features

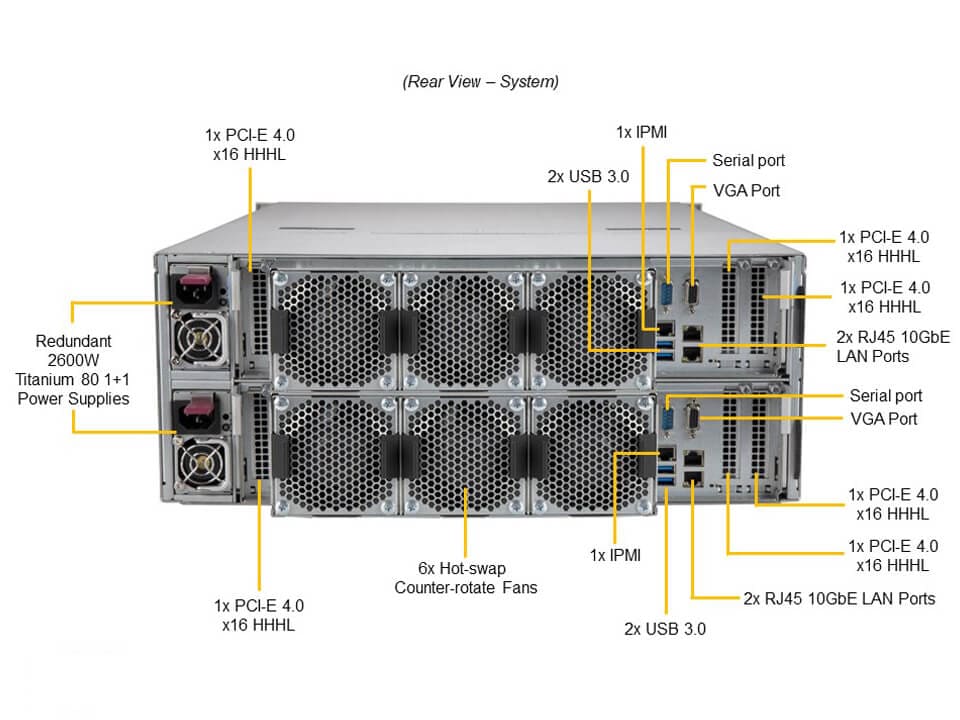

    • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
    • 16 ECC DDR4-3200: LRDIMM/RDIMM
    • 3 x PCIe 4.0 x16 HHHL PCIe slots
    • 90 3.5"/2.5" Hot-swap SAS3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
    • 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 2600W Redundant Power Supplies Titanium Level (96%)
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LANHBA Controller support via Broadcom® 3616
    • Dedicated node to node connectivity featuring high performance NTB PCIe 4.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support

    Key Applications

    • Big Data & Analytics, Data Lake
    • HPC and AI/ML Workloads
    • Telco & Cloud Service Providers
    • Financial Services & Healthcare Image Archives
    • Content Repositories
    • Government Data Protection

    Description

    The Supermicro SSG-640SP-DE2CR90 is the ultimate solution for organizations requiring superior performance and reliability. Featuring dual socket 3rd Gen Intel Xeon Scalable processors, up to 4TB ECC DDR4 memory, and 90 hot-swap SAS3 drive bays, this 4U rackmount server is optimized for Big Data, AI/ML, Telco, and cloud services. Key features include advanced system management, redundant titanium level power supplies, and robust security measures. Ideal for data-intensive environments such as financial services, healthcare, content repositories, and government data protection.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-640SP-DE2CR90
    Motherboard
    Installed Motherboard
    • Super X12DSC-6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports 120W - 205W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSV-947HTS-R2K63P
    Dimensions and Weight
    Height
    • 7"
    Width
    • 17.6"
    Depth
    • 42.1"
    Package
    • 29.92" (H) x 35.82" (W) x 53.15" (D)
    Weight
    • Gross Weight: 240 lbs (108.86 kg)
    • Net Weight: 150 lbs (68.04 kg)
    Available Color
    • Black
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 LP slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 92 bays:
    • 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
    • 2 top-loading fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 NVMe slot (M-key)
    System Cooling
    Fans
    • 6 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    Network Cards
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
